How to Use Nomad Alongside Kubernetes

Kubernetes and Nomad are both orchestration tools that each come with a compelling set of features. Despite some overlap, each tool has unique strengths and a favorable set of use cases.

Review our Kubernetes vs Nomad? article to see how Kubernetes and Nomad excel in different orchestration areas.

As that guide points out, there are cases where you may want the benefits of both tools side-by-side. While you can accomplish this with two distinct parallel setups, it’s also possible to directly run Nomad on a Kubernetes cluster.

This tutorial shows how to do just that. It walks through setting up the Kubernetes cluster and deploying Nomad to it, and demonstrates how to manage tasks through each tool in parallel.

Why Use Nomad on Kubernetes?

Kubernetes tends to be best for large and complicated applications, but it is restricted to containerized applications. On the other hand, Nomad provides a simpler and more flexible orchestration that can run both containerized and non-containerized applications.

Many organizations can effectively leverage both use cases. Often, you need to run more than just large and containerized applications. You may need to orchestrate batch applications or other non-containerized applications that benefit from a higher degree of flexibility.

Running a distinct Nomad cluster in addition to a Kubernetes cluster is a possibility for handling this. Learn everything you need to get started with a Nomad cluster in our guide How to Use Nomad for Container Orchestration.

However, that model may be restrictive, and price-inefficient depending on your needs.

The other way to leverage the advantages of Nomad alongside Kubernetes is by running Nomad on the Kubernetes cluster itself. Nomad runs on the same infrastructure as Kubernetes, but can separately orchestrate tasks. This provides a means of running batch processes and non-containerized applications alongside Kubernetes applications.

Such a setup has additional advantages, like the ability for Kubernetes and Nomad applications to easily communicate across a private Kubernetes network.

How to Deploy Nomad on a Kubernetes Cluster

There are several pieces you need to create and deploy to get an infrastructure running Nomad alongside Kubernetes. This includes provisioning a Kubernetes cluster, deploying Nomad, and deploying Consul for Nomad to network through.

This section of the tutorial walks through a basic Kubernetes cluster running Nomad alongside Kubernetes. By the end, you are ready to start orchestrating applications using the tools most appropriate for the task.

Provisioning a Kubernetes Cluster

The infrastructure in this tutorial builds on a Kubernetes base. For that reason, the first step to take is provisioning a Kubernetes cluster.

The most straightforward way to deploy a Kubernetes cluster with Linode is using the Linode Kubernetes Engine (LKE). LKE lets you configure and deploy a full Kubernetes cluster through the Linode Cloud Manager.

Learn how to deploy an LKE cluster through our guide Linode Kubernetes Engine - Getting Started.

The present tutorial assumes you followed the guide above to create an LKE cluster with three nodes. The tutorial has been tested with Dedicated 4GB nodes, but that can be adjusted to fit your needs.

For an alternative method to deploy a Kubernetes cluster onto Linode, see our guide Using kubeadm to Deploy a Kubernetes Cluster. The guide covers using the kubeadm tool to set up a cluster, but the guide also highlights and links to further options for Kubernetes deployments.

This tutorial additionally requires that kubectl is installed locally and set up with the kubeconfig file to connect to your LKE cluster. Learn more about this in the guides linked above, depending on your method for setting up the Kubernetes cluster.

Deploying a Consul Service Mesh

Nomad typically uses Consul for network discovery. Fortunately, a Consul mesh can be set up on a Kubernetes cluster with relative ease through the official Helm chart.

Learn more about setting up a Consul service mesh on Kubernetes through our guide Install HashiCorp Consul Service Mesh.

The steps that follow are based on those covered in the guide above. Some alterations have been made and more specifics given to fit smoothly with Nomad on the cluster.

Install Helm. The specific steps for this depend on your local system. What is given below assumes a typical Linux system. Refer to the official installation instructions for installing Helm on other operating systems.
Be sure to identify the latest release from the Helm releases page. Replace 3.11.2 in the commands below with the appropriate release number for the latest release.
cd ~/ sudo wget https://get.helm.sh/helm-v3.11.2-linux-amd64.tar.gz sudo tar -zxvf helm-v3.11.2-linux-amd64.tar.gz sudo mv linux-amd64/helm /usr/local/bin/helm

Add and update the HashiCorp repository to your Helm instance:

helm repo add hashicorp https://helm.releases.hashicorp.com
helm repo update

Create a Helm configuration file with the values for deploying Consul. The example configuration that follows provides a basic setup that works well with Nomad.

File: consul-helm.yaml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
global:
  name: consul
  datacenter: dc1
server:
  replicas: 3
  securityContext:
    runAsNonRoot: false
    runAsUser: 0
client:
  enabled: true
ui:
  enabled: true
connectInject:
  enabled: false

See further examples of Helm configurations for deploying Consul within HashiCorp’s Consul and Kubernetes Deployment Guide. Find a full list of configuration options in HashiCorp’s Helm Chart Configuration guide.

Install Consul to the Kubernetes cluster. This command has Helm deploy Consul to the cluster using the values specified in the previous step, assuming you saved those values in a file named consul-helm.yaml:
helm install consul hashicorp/consul -f consul-helm.yaml

Verify that Consul is running and networking on your cluster. First, check kubectl to see that the pods containing Consul are up and running:

kubectl get pods

NAME                                       READY   STATUS    RESTARTS   AGE
consul-client-9vwgh                        1/1     Running   0          1h
consul-client-l9vkm                        1/1     Running   0          1h
consul-client-wvrpz                        1/1     Running   0          1h
consul-server-0                            1/1     Running   0          1h
consul-server-1                            1/1     Running   0          1h
consul-server-2                            1/1     Running   0          1h

Now use the following command to forward the Consul UI to port 18500 on your local machine:
kubectl port-forward service/consul-ui 18500:80 --address 0.0.0.0

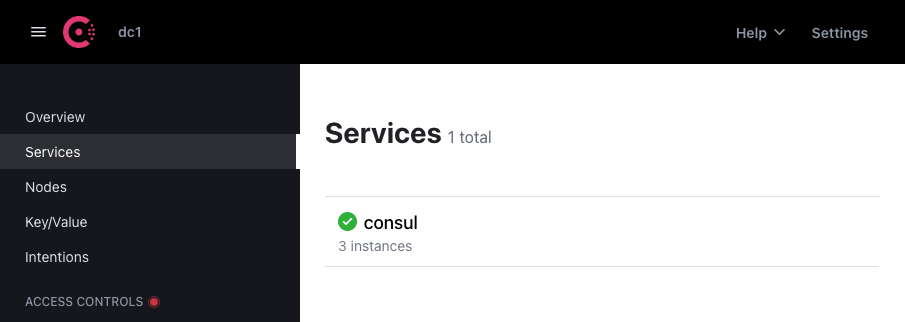

Navigate to localhost:18500 in a web browser. You should see the Consul service listed with three instances, one for each cluster:

Deploying Nomad

Nomad can be deployed directly using kubectl. HashiCorp does not maintain an official Docker container image for Nomad, but this tutorial leverage’s NoEnv’s Nomad image.

Create a Kubernetes configuration file for deploying Nomad. The values below provide a basic Nomad setup and connects Nomad immediately via the Consul mesh.

File: nomad-cluster.yaml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
apiVersion: v1
kind: Service
metadata:
  name: nomad-cluster-service
  labels:
    name: nomad
spec:
  type: LoadBalancer
  ports:
    - name: http
      port: 4646
      protocol: "TCP"
    - name: rpc
      port: 4647
      protocol: "TCP"
  selector:
    app: nomad
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: nomad-cluster-configmap
  labels:
    app: nomad
data:
  server.hcl: |
    datacenter = "dc1"
    data_dir = "/opt/nomad/data"

    bind_addr = "0.0.0.0"

    server {
        enabled = true
        bootstrap_expect = 3
    }

    client {
        enabled = true
        options {
            "driver.raw_exec.enable" = "1"
            "driver.raw_exec.no_cgroups" = "1"
        }
    }

    consul {
      address = "consul-server.default.svc:8500"
    }
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: nomad-cluster-deployment
  labels:
    app: nomad
spec:
  replicas: 3
  selector:
    matchLabels:
      app: nomad
  template:
    metadata:
      labels:
        app: nomad
    spec:
      securityContext:
        runAsUser: 100
        runAsGroup: 999
        fsGroup: 999
      containers:
      - name: nomad-instance
        image: noenv/nomad
        imagePullPolicy: IfNotPresent
        args:
        - "agent"
        - "-config=/etc/nomad/nomad.d/server.hcl"
        ports:
        - name: http
          containerPort: 4646
          protocol: "TCP"
        - name: rpc
          containerPort: 4647
          protocol: "TCP"
        - name: serf-tcp
          containerPort: 4648
          protocol: "TCP"
        - name: serf-udp
          containerPort: 4648
          protocol: "UDP"
        volumeMounts:
        - name: nomad-config
          mountPath: /etc/nomad/nomad.d
        - name: nomad-data
          mountPath: /opt/nomad/data
      volumes:
      - name: nomad-config
        configMap:
          name: nomad-cluster-configmap
      - name: nomad-data
        emptyDir: {}

This example configuration does three main things:

Creates a load-balancer service for the Nomad instances.
Prepares a configuration to include with each Nomad instance. The configuration connects the Nomad instances through Consul and enables the raw_exec driver that allows Nomad to execute shell commands.
Defines a deployment for the Nomad image, consisting of three replicas (one for each node in the cluster) giving the necessary exposed ports, and mounting volumes for the Nomad configuration and data.

Deploy the Nomad setup. This command assumes your Kubernetes configuration for Nomad is saved in a file named nomad-cluster.yaml.
kubectl apply -f nomad-cluster.yaml

Use kubectl to check on the deployed pods and see when the Nomad pods started up and confirm they are running:

kubectl get pods

NAME                                       READY   STATUS    RESTARTS   AGE
consul-client-9vwgh                        1/1     Running   0          2h
consul-client-l9vkm                        1/1     Running   0          2h
consul-client-wvrpz                        1/1     Running   0          2h
consul-server-0                            1/1     Running   0          2h
consul-server-1                            1/1     Running   0          2h
consul-server-2                            1/1     Running   0          2h
nomad-cluster-deployment-b4fcbd498-867sd   1/1     Running   0          1h
nomad-cluster-deployment-b4fcbd498-wpdwz   1/1     Running   0          1h
nomad-cluster-deployment-b4fcbd498-zhwmt   1/1     Running   0          1h

Similar to the Consul setup, use port forwarding to see the Nomad UI and verify that the instances are networking:
kubectl port-forward service/nomad-cluster-service 14646:4646 --address 0.0.0.0

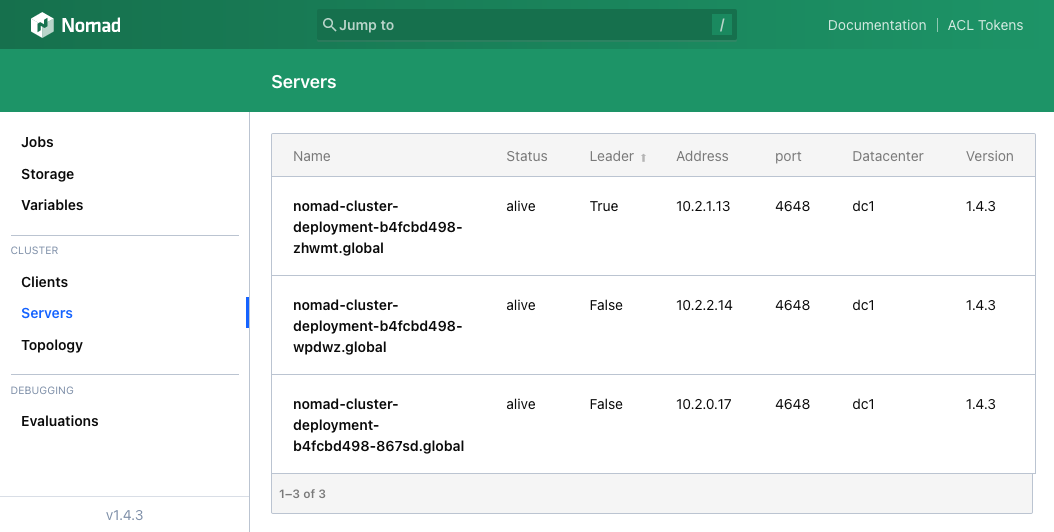

Navigate to localhost:14646 in a web browser to see the Nomad UI. In the UI, click the Servers option from the left menu to see a list of the connected servers:

How to Use Kubernetes and Nomad Together

With the Kubernetes-Nomad infrastructure in place, take a trial run at using them for parallel orchestration.

This section provides a simple demonstration, orchestrating a containerized application through Kubernetes and a shell-script orchestration for Nomad.

The demonstration also takes advantage of the shared cluster to have the Kubernetes and Nomad applications share information across the Kubernetes network.

Using Kubernetes

Kubernetes excels at deploying containerized applications, so that’s what this demonstration uses. The simple example application here uses the http-echo container to provide a message in response to HTTP requests.

The application may be simple, but it provides a convenient start. Moreover, the HTTP server lets the next section easily show off the possibilities for network interactions between Kubernetes and Nomad applications.

Create a Kubernetes configuration file with the contents shown below. This configuration file creates a deployment and service for HashiCorp’s http-echo container, a basic HTTP server for testing communications.

The deployment here sets up the container and has it begin serving a message on port 3030. That message can be accessed from the http-echo-service created here. Using Kubernetes’s networking, the HTTP server is thus accessible to other pods on the cluster through the http-echo-service.default.svc:3030 URL.

File: http-echo.yaml

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
apiVersion: v1
kind: Service
metadata:
  name: http-echo-service
  labels:
    app: http-echo
spec:
  ports:
  - name: echo-port
    port: 3030
    protocol: "TCP"
  selector:
    app: http-echo
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: http-echo-deployment
spec:
  replicas: 3
  selector:
    matchLabels:
      app: http-echo
  template:
    metadata:
      labels:
        app: http-echo
    spec:
      containers:
      - name: http-echo-instance
        image: hashicorp/http-echo
        imagePullPolicy: IfNotPresent
        args:
        - "-listen"
        - ":3030"
        - "-text"
        - "hello from the echo server"
        ports:
        - name: echo-port
          containerPort: 3030
          protocol: "TCP"

Deploy the http-echo setup. This command assumes your Kubernetes configuration for http-echo is saved in a file named http-echo.yaml.
kubectl apply -f http-echo.yaml

Use kubectl to check on the deployed pods and see when the http-echo pods started up and confirm they are running:

kubectl get pods

NAME                                       READY   STATUS    RESTARTS   AGE
consul-client-9vwgh                        1/1     Running   0          2h
consul-client-l9vkm                        1/1     Running   0          2h
consul-client-wvrpz                        1/1     Running   0          2h
consul-server-0                            1/1     Running   0          2h
consul-server-1                            1/1     Running   0          2h
consul-server-2                            1/1     Running   0          2h
http-echo-deployment-656b9b9785-28jql      1/1     Running   0          8m32s
http-echo-deployment-656b9b9785-9d54v      1/1     Running   0          8m32s
http-echo-deployment-656b9b9785-jh5fb      1/1     Running   0          8m32s
nomad-cluster-deployment-b4fcbd498-867sd   1/1     Running   0          1h
nomad-cluster-deployment-b4fcbd498-wpdwz   1/1     Running   0          1h
nomad-cluster-deployment-b4fcbd498-zhwmt   1/1     Running   0          1h

Once the pods are running, test it via more port forwarding. Use the command below to forward the port to your local machine on port 13030:
kubectl port-forward service/http-echo-service 13030:3030 --address 0.0.0.0
Navigate to localhost:13030 in your browser to see the echoed message:
```
hello from the echo server
```

Using Nomad

Nomad can run containerized applications, although doing so is more complicated with Nomad on a Kubernetes cluster.

However, one of Nomad’s strongest contrasts with Kubernetes is its ability to run non-containerized applications. The possibilities are expansive, but at its most basic Nomad can already run shell commands for batch jobs.

The demonstration here creates a job with a task to get the message from the http-echo server created above and save that message to a file. While simple, this shows off some of Nomad’s fundamental advantages, and this basis can be leveraged for a variety of use cases.

For instance, a similar process could be expanded to run periodic test cases on a Kubernetes server application and send reports of the results.

Follow the directions further above to access the Nomad UI. The job can be created and run entirely from within the web interface.
From the Jobs section (accessible from the menu left), select the Run Job button from the upper right.

Populate the field provided with the following job configuration. This creates a job that runs a task on all three Nomad clients. Each task uses cURL to query the http-echo server and save the response to a file.

job "example-job" {
  datacenters = ["dc1"]
  type = "batch"

  group "example-group" {
    count = 3

    task "curl-task" {
      driver = "raw_exec"

      config {
        command = "sh"
        args = [
          "-c",
          "curl http-echo-service.default.svc:3030 -o /opt/nomad/data/curl-output.txt && exit"
        ]
      }
    }
  }
}

Proceed with the options to Plan and then Run the job. You should then be taken to the job’s status page, with a summary of the tasks.
On the new job’s page, you should soon see the tasks landing in the Complete status. From here, navigate to one of the curl-task pages, select the Logs tab, and select the stderr option. This shows the output from the cURL command:

  % Total    % Received % Xferd  Average Speed   Time    Time     Time  Current
                                 Dload  Upload   Total   Spent    Left  Speed

  0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0
  0     0    0     0    0     0      0      0 --:--:-- --:--:-- --:--:--     0
100    27  100    27    0     0   1540      0 --:--:-- --:--:-- --:--:--  1500

To further verify, use a command like the following to read the contents of one of the files created by the Nomad job. Replace nomad-cluster-deployment-b4fcbd498-867sd with the name of one of your Nomad pods, which can be found with kubectl get pods.
kubectl exec -it nomad-cluster-deployment-b4fcbd498-867sd -- sh -c 'cat /opt/nomad/data/curl-output.txt'
```
hello from the echo server
```

Conclusion

This guide provides a full and extensible setup for running Kubernetes and Nomad together on a shared Kubernetes cluster. It covers some compelling use cases for this setup. However, the setup also acts as a base to expand on and adapt to fit your particular needs. More use cases are likely to become evident as more setups take advantage of the two tools’ distinct feature sets.

Be sure to refer to our other guides on Kubernetes (via LKE) and Nomad linked throughout this guide.

Additionally, find ideas for expanding on this tutorial’s setup in the repository linked below, which provides another Nomad-on-Kubernetes infrastructure.

More Information

You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.

Compute

Storage

Networking

Databases

Services

Developer Tools

Industries

Pricing

Community

Engage With Us

Search Results

No Results

Filters
