Installing Canvas on Ubuntu 20.04

Select distribution:
Traducciones al Español
Estamos traduciendo nuestros guías y tutoriales al Español. Es posible que usted esté viendo una traducción generada automáticamente. Estamos trabajando con traductores profesionales para verificar las traducciones de nuestro sitio web. Este proyecto es un trabajo en curso.
Deprecated

This guide has been deprecated and is no longer being maintained. Please refer to the updated version of this guide.

Canvas is a popular learning management system (LMS) noteworthy for its modern design and ease of use. Canvas provides a comprehensive website for education and training courses, whether those courses are in-person, online, or a mix of the two. Moreover, Canvas is open source . You can freely download and install an instance on your server, giving you a higher degree of control than with a hosted LMS.

This guide shows you how to get a Canvas website up and running on an Ubuntu 20.04 server.

Before You Begin

  1. If you have not already done so, create a Linode account and Compute Instance. See our Getting Started with Linode and Creating a Compute Instance guides.

  2. Follow our Setting Up and Securing a Compute Instance guide to update your system. You may also wish to set the timezone, configure your hostname, create a limited user account, and harden SSH access.

  3. Prepare an SMTP server that Canvas can use to send email notifications to users. You can use a third-party SMTP service for this purpose. This guide’s example configurations use Mailgun as the third-party SMTP provider.

    You can, alternatively, create your SMTP server by following the Email with Postfix, Dovecot, and MySQL guide. However, because of Canvas’s resource demands, you may want to run the SMTP server on a separate machine than the one running Canvas.

  4. Canvas recommends a minimum of 8 GB of RAM. The website may operate with fewer, but doing so may result in installation and/or runtime issues. This is especially the case when all of the Canvas components are running on a single machine.

    You can run some of the components of your Canvas installation on separate machines to improve performance if needed. Refer to Canvas’s Production Start guide for more on what components can be installed independently. Be aware that this approach requires some additional configuration to enable communications between the components.

  5. Replace example.com in this guide with your server’s domain name. You can complete the Add DNS Records steps to register a domain name for your Linode server.

Note
This guide is written for a non-root user. Commands that require elevated privileges are prefixed with sudo. If you’re not familiar with the sudo command, see the Linux Users and Groups guide.

Install Apache

Canvas uses Apache and Phusion’s Passenger to serve its web pages. Phusion has its own package repository, which this guide uses to install both Passenger and the Passenger module for Apache.

  1. Add the key for the Phusion repository and HTTPS support for the package manager.

     sudo apt install dirmngr gnupg
     sudo apt-key adv --keyserver hkp://keyserver.ubuntu.com:80 --recv-keys 561F9B9CAC40B2F7
     sudo apt install apt-transport-https ca-certificates

  2. Add the Phusion repository and update the package manager. The bionic in the first command corresponds to the code name for Ubuntu 20.04.

     sudo sh -c 'echo deb https://oss-binaries.phusionpassenger.com/apt/passenger bionic main > /etc/apt/sources.list.d/passenger.list'
     sudo apt update

  3. Install Apache, the Apache development headers, Passenger, and the Passenger module for Apache.

     sudo apt-get install -y libapache2-mod-passenger
     sudo apt install -y apache2 apache2-dev passenger


    You can check the Passenger version using the following command:

     passenger -v

  4. Enable the Passenger and Rewrite for Apache.

     sudo a2enmod passenger rewrite


Install PostgreSQL

  1. Install PostgreSQL.

     sudo apt-get install postgresql

  2. Create a Canvas user in PostgreSQL.

     sudo -u postgres createuser canvas --no-createdb --no-superuser --no-createrole --pwprompt

  3. Create a Canvas database, making the Canvas user its owner.

     sudo -u postgres createdb canvas_production --owner=canvas

  4. Make the current user a PostgreSQL superuser.

     sudo -u postgres psql -c "alter user $USER with superuser" postgres


Install Ruby

Canvas specifically requires version 2.7 of Ruby, which the default package repositories on Ubuntu do not have. However, Brightbox maintains a repository of Ruby versions for Ubuntu, which this guide makes use of to install the necessary version.

  1. Add the Brightbox Ruby repository, and update the package manager.

     sudo apt-get install ruby2.7 ruby2.7-dev zlib1g-dev libxml2-dev
     libsqlite3-dev postgresql libpq-dev
     libxmlsec1-dev libidn11-dev curl make g++

  2. Install Ruby and its development components:

     sudo apt-get install ruby2.7 ruby2.7-dev zlib1g-dev libxml2-dev libsqlite3-dev postgresql libpq-dev  libxmlsec1-dev curl make g++

  3. Install Bundler, which Canvas uses for managing its Ruby libraries (“Gems”). Canvas specifically calls for version 2.1.4 of Bundler:

     sudo gem install bundler --version 2.2.33


Install Node.js and Yarn

  1. Install Node.js.

     curl -sL https://deb.nodesource.com/setup_14.x | sudo -E bash -
     sudo apt-get install nodejs
     sudo npm install -g npm@latest

  2. Install Yarn, a package manager used in the Canvas installation process.

     curl -sS https://dl.yarnpkg.com/debian/pubkey.gpg | sudo apt-key add -
     echo "deb https://dl.yarnpkg.com/debian/ stable main" | sudo tee /etc/apt/sources.list.d/yarn.list
     sudo apt-get update && sudo apt-get install yarn=1.19.1-1


Install Canvas

  1. Install Git, which is used to download the Canvas files from their repository. Using Git also makes it easier to update your Canvas installation in the future.

     sudo apt-get install git-core

  2. Use Git to download the Canvas repository.

     git clone https://github.com/instructure/canvas-lms.git ~/canvas

  3. Change into the repository directory, and check out the latest stable branch of the repository.

     cd ~/canvas
     git checkout prod

  4. Create a directory for Canvas, copy the repository there, and change its ownership to the current user.

     sudo mkdir -p /var/canvas
     sudo chown -R $USER /var/canvas
     sudo cp -R ~/canvas /var

  5. Change into the new Canvas root directory.

     cd /var/canvas


    All subsequent steps in this guide assume you are operating out of this directory unless stated otherwise.

  6. Use Bundle to install Canvas’s Ruby dependencies.

     bundle config set path 'vendor/bundle'
     bundle config set --local without 'pulsar'
     bundle install

  7. Use Yarn to install the necessary Node.js modules.

     yarn install


Set Up the Canvas Configuration Files

  1. Copy the example configuration files. Generally, the default configurations do not need to be modified, and the steps that follow walk you through the minor changes that are needed.

     for config in amazon_s3 database delayed_jobs domain file_store outgoing_mail security external_migration; do cp config/$config.yml.example config/$config.yml; done

  2. Using your preferred text editor, open the database configuration file, /var/canvas/config/database.yml. Modify the username and password fields in the production section to match the canvas PostgreSQL user you created.

    File: /var/canvas/config/database.yml
    1
    2
    3
    4
    5
    6
    7
    8
    9

    production:
      adapter: postgresql
      encoding: utf8
      database: canvas_production
      host: localhost
      username: canvas
      password: password
      timeout: 5000

  3. Open the domain configuration file, /var/canvas/config/domain.yml. Modify the domain field in the production section to match your server’s domain name.

    File: /var/canvas/config/domain.yml
    1
    2
    3
    4

    production:
      domain: "example.com"
      ssl: true

  4. Open the outgoing mail configuration file, var/canvas/config/outgoing_mail.yml. Locate the production section, and complete it as follows.

    • Enter the information for your SMTP service in the address, port, user_name, password, and authentication fields.

    • Enter your Canvas server’s domain name in the domain field.

    • For outgoing_address, create the email address from which Canvas is to deliver emails. Use your server’s domain name as the base of the address.

    • In the default_name field, enter a name to be used by default on emails sent from Canvas.

    File: var/canvas/config/outgoing_mail.yml
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10

    production:
      address: "http://smtp.mailgun.org/"
      port: "587"
      user_name: "example-user"
      password: "password"
      authentication: "plain"
      domain: "example.com"
      outgoing_address: "canvas@example.com"
      default_name: "Example Canvas"

  5. Open the security configuration file, /var/canvas/config/security.yml. Enter a random string of 20 or more characters into the encryption_key field.

    You can use a command like the following to generate a random string, which you can then copy and paste into the configuration file. This example outputs a random string of 24 alphanumeric characters:

     cat /dev/urandom | tr -dc 'A-Za-z0-9' | head -c 24; echo ''


Generate the Canvas Assets and Data

  1. Create the required asset-related directories and files as shown in the following commands.

     mkdir -p log tmp/pids public/assets app/stylesheets/brandable_css_brands
     touch app/stylesheets/_brandable_variables_defaults_autogenerated.scss
     touch Gemfile.lock
     touch log/production.log

  2. Assign ownership of key Canvas files to the current user.

     sudo chown -R $USER config/environment.rb log tmp public/assets app/stylesheets/_brandable_variables_defaults_autogenerated.scss app/stylesheets/brandable_css_brands Gemfile.lock config.ru

  3. Run the Yarn installer again.

     yarn install

  4. Use the Bundle to rehash the encryption key and compile Canvas’s assets.

     RAILS_ENV=production bundle exec rake db:reset_encryption_key_hash
     RAILS_ENV=production bundle exec rake canvas:compile_assets


    Observe the commands’ output for any errors that stop the processes. If you encounter any, run the command again. The asset compilation can consume a lot of memory, so it may be helpful to stop any major processes running in the background. For instance, you can restart Apache before running these commands.

     sudo systemctl restart apache2

  5. Assign ownership of the brandable_css directory to the current user.

     sudo chown -R $USER public/dist/brandable_css

  6. Use the Bundle to generate the initial data for Canvas.

     RAILS_ENV=production bundle exec rake db:initial_setup


    You are prompted to enter an email address and password, which are used to create the Canvas administrator login. You are also prompted to enter a name for your Canvas site and to select your preference for sending usage data to Canvas.

  7. Assign ownership of the configuration files to the current user, and limit them to read access.

     sudo chown $USER config/*.yml
     sudo chmod 400 config/*.yml

  8. Use the following commands to set up and start the automated jobs the Canvas application relies on.

     sudo ln -s /var/canvas/script/canvas_init /etc/init.d/canvas_init
     sudo update-rc.d canvas_init defaults
     sudo /etc/init.d/canvas_init start


Configure Apache for Canvas

  1. Remove the default Apache site configuration.

     sudo unlink /etc/apache2/sites-enabled/000-default.conf

  2. Using your preferred text editor, create and open a new configuration file, /etc/apache2/sites-available/canvas.conf. Enter the following as the file’s content. Replace example@example-email.com with the email address for the system administrator.

    File: /etc/apache2/sites-available/canvas.conf
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38

    <VirtualHost *:80>
      ServerName example.com
      ServerAlias example.com
      ServerAdmin example@example-email.com
      DocumentRoot /var/canvas/public
      RewriteEngine On
      RewriteCond %{HTTP:X-Forwarded-Proto} !=https
      RewriteCond %{REQUEST_URI} !^/health_check
      RewriteRule (.*) <https://%{HTTP_HOST}%{REQUEST_URI>} [L]
      ErrorLog /var/log/apache2/canvas_errors.log
      LogLevel warn
      CustomLog /var/log/apache2/canvas_access.log combined
      SetEnv RAILS_ENV production
      <Directory /var/canvas/public>
        Allow from all
        Options -MultiViews
      </Directory>
    </VirtualHost>
    <VirtualHost *:443>
      ServerName example.com
      ServerAlias example.com
      ServerAdmin example@example-email.com
      DocumentRoot /var/canvas/public
      ErrorLog /var/log/apache2/canvas_errors.log
      LogLevel warn
      CustomLog /var/log/apache2/canvas_ssl_access.log combined
      SSLEngine on
      BrowserMatch "MSIE [17-9]" ssl-unclean-shutdown
      SSLCertificateFile /etc/ssl/certs/ssl-cert-snakeoil.pem
      SSLCertificateKeyFile /etc/ssl/private/ssl-cert-snakeoil.key
      SetEnv RAILS_ENV production
      <Directory /var/canvas/public>
        Options All
        AllowOverride All
        Require all granted
      </Directory>
    </VirtualHost>

  3. Open the Passenger configuration file, /etc/apache2/mods-available/passenger.conf. Add a PassengerDefaultUser line, and make its value the username of the user you used to set up Canvas. This is example-user in the following example.

    File: /etc/apache2/mods-available/passenger.conf
    1
    2
    3
    4
    5
    6

    <IfModule mod_passenger.c>
      PassengerRoot /usr/lib/ruby/vendor_ruby/phusion_passenger/locations.ini
      PassengerDefaultRuby /usr/bin/passenger_free_ruby
      PassengerDefaultUser example-user
    </IfModule>

    Note

    Canvas has a relatively long startup time, which can sometimes lead to timeout issues. You can add a version of the following line to the passenger.conf file to increase the time before Canvas times out at startup. This example increases the amount of time before Passenger times out, from the default 60 seconds up to 180 seconds:

    PassengerStartTimeout 180

  4. Allow HTTP and HTTPS connections on the system’s firewall.

     sudo ufw allow http
     sudo ufw allow https
     sudo ufw reload

  5. Enable the Apache site configuration.

     sudo a2ensite canvas

  6. Restart Apache for the changes to take effect.

     sudo systemctl restart apache2


Set Up an SSL Certificate

By default, your Canvas site uses self-signed SSL certificates. The following steps show you how to use Certbot to request and download a free certificate from Let’s Encrypt .

  1. Update the Snap app store. Snap provides application bundles that work across major Linux distributions and comes by default with all Ubuntu releases since 16.04.

     sudo snap install core && sudo snap refresh core

  2. Remove any existing Certbot installation.

     sudo apt remove certbot

  3. Install Certbot.

     sudo snap install --classic certbot

  4. Download a certificate for your site. When prompted, select your site’s domain name from the list of configured Apache domains.

     sudo certbot certonly --apache

  5. Certbot includes a Chron job that automatically renews your certificate before it expires. You can test the automatic renewal with the following command.

     sudo certbot renew --dry-run

  6. Open the /etc/apache2/sites-available/canvas.conf file again, and modify the SSL lines as follows.

    File: /etc/apache2/sites-available/canvas.conf
    1
    2
    3

    SSLCertificateFile /etc/letsencrypt/live/example.com/fullchain.pem
    SSLCertificateKeyFile /etc/letsencrypt/live/example.com/privkey.pem

  7. Enable the SSL module.

     sudo a2enmod ssl

  8. Restart the Apache server.

     sudo systemctl restart apache2


Install Redis

Canvas has caching disabled by default, but you can, optionally, configure it to use Redis for caching. The following steps show you how to install Redis and configure Canvas to use it.

  1. Add the Redis repository, and update the package manager.

     sudo add-apt-repository ppa:chris-lea/redis-server
     sudo apt-get update

  2. Install Redis.

     sudo apt-get install redis-server

  3. Copy the example cache configuration file. This and the following commands assume you are again in the Canvas root directory (/var/canvas).

     sudo cp config/cache_store.yml.example config/cache_store.yml

  4. Using your preferred text editor, open the cache_store.yml file, and set redis_store as the cache_store for development, test, and production. The configuration file should resemble the following:

    File: /var/canvas/config/cache_store.yml
    1
    2
    3
    4
    5
    6
    7

    development:
      cache_store: redis_store
    test:
      cache_store: redis_store
    production:
      cache_store: redis_store

  5. Copy the example Redis configuration file.

     sudo cp config/redis.yml.example config/redis.yml

  6. Open the redis.yml file. Add a production section like the following, entering the server location for Redis. If you are running Redis on the same machine as Canvas, this should be redis://localhost, as in the following example:

    File: /var/canvas/config/redis.yml
    1
    2
    3
    4

    production:
      servers:
        - redis://localhost

  7. Once again assign ownership of the configuration files to the current user and limit them to read access.

     sudo chown $USER config/*.yml
     sudo chmod 400 config/*.yml

  8. Restart Apache for the changes to take effect.

     sudo systemctl restart apache2


Next Steps

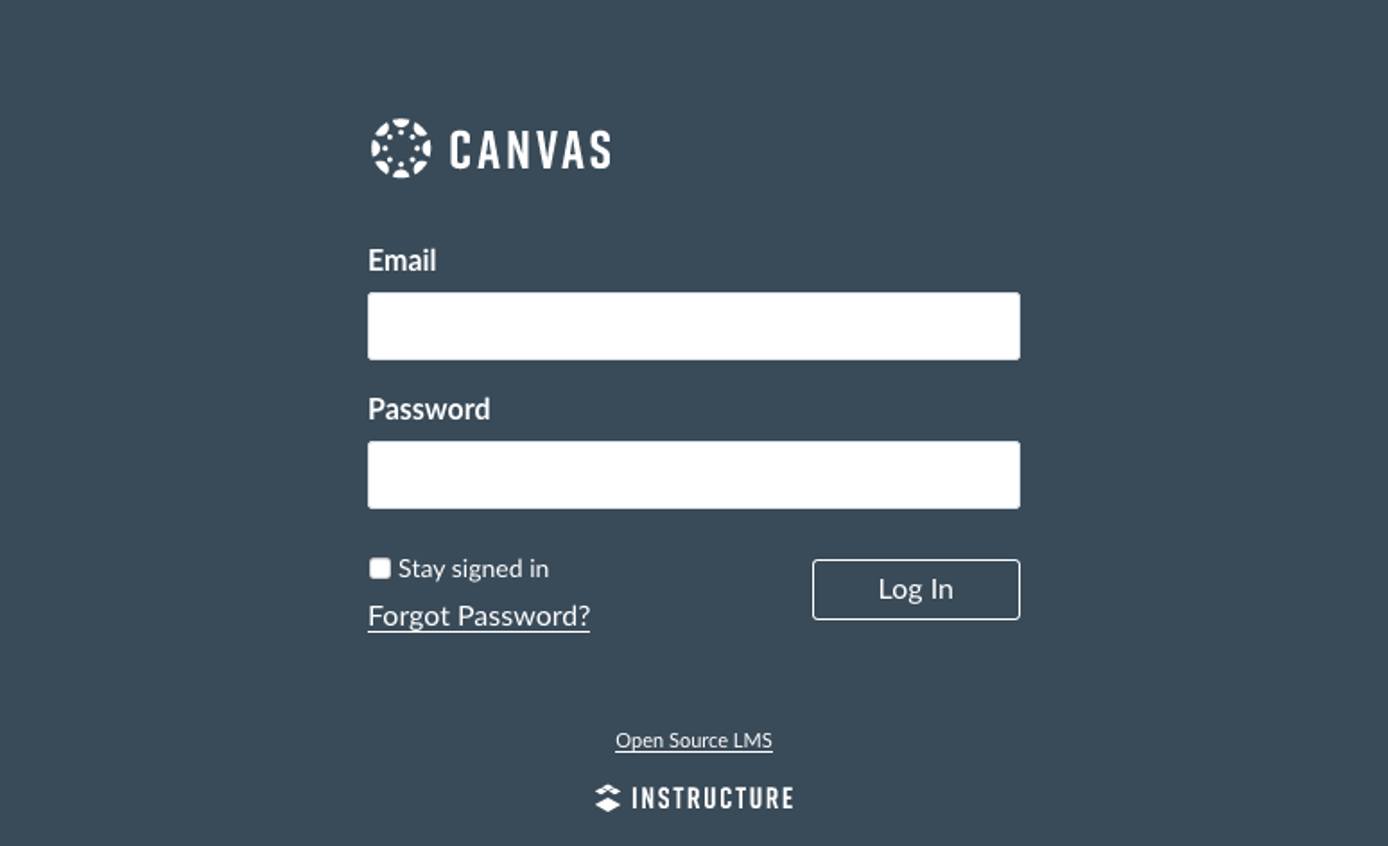

You have successfully gotten your Canvas website up and running. Visit the site by navigating to your server’s domain name in a web browser. You are prompted to log in, which you can do using the Canvas administrator credentials you created earlier.

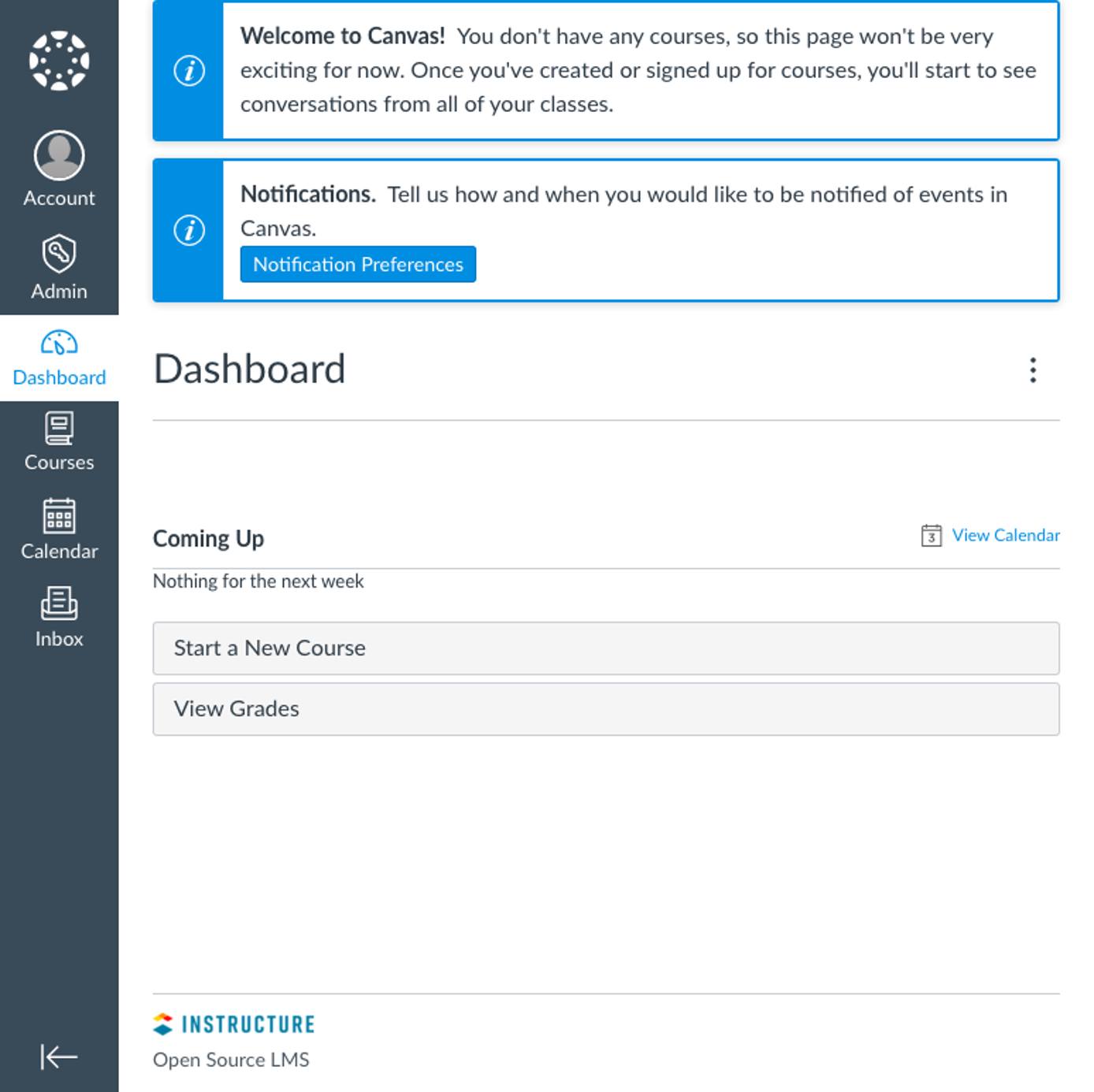

Once you log in, you are taken to your Canvas dashboard, from which you can view, create, and manage your Canvas website’s content.

You can learn more about how to get started using your Canvas website and all the features it has to offer on the Canvas Community website. Be sure to check out the wealth of guides the Canvas Community has, covering everything from basic, day-to-day usage to advanced features.

More Information

You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.

This page was originally published on


Your Feedback Is Important

Let us know if this guide was helpful to you.


Join the conversation.
Read other comments or post your own below. Comments must be respectful, constructive, and relevant to the topic of the guide. Do not post external links or advertisements. Before posting, consider if your comment would be better addressed by contacting our Support team or asking on our Community Site.
The Disqus commenting system for Linode Docs requires the acceptance of Functional Cookies, which allow us to analyze site usage so we can measure and improve performance. To view and create comments for this article, please update your Cookie Preferences on this website and refresh this web page. Please note: You must have JavaScript enabled in your browser.
