A Tutorial for Creating Single File Components in VueJS

Traducciones al Español
Estamos traduciendo nuestros guías y tutoriales al Español. Es posible que usted esté viendo una traducción generada automáticamente. Estamos trabajando con traductores profesionales para verificar las traducciones de nuestro sitio web. Este proyecto es un trabajo en curso.
Create a Linode account to try this guide with a $ credit.
This credit will be applied to any valid services used during your first  days.

When first learning VueJS, and when using it for smaller projects, you will likely use regular, globally-defined components . Once your project grows and you start needing more structure and flexibility, single file components can be a better option.

Below you can see an example of a barebones single file component, which we will examine part-by-part later in the guide:

File: SkeletonComponent.vue
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
<template>
<h1>{{ greeting }}</h1>
</template>

<script>
export default {
    name: 'SkeletonComponent',
    data: function() {
        return {
            greeting: 'Hello'
        };
    },
    props: [],
    methods: {
    },
    created: function(){
    }
}
</script>

<style scoped>
h1 {
    font-size: 2em;
    text-align: center;
}
</style>

In this guide, you will learn:

Before You Begin

If you haven’t read our Building and Using VueJS Components already, go take a look.

Make sure you have Node.js installed. If you don’t, our How to Install Node.js guide outlines different installation options.

What are Single File Components

Single file components are similar to regular components, but there are a few key differences which can make single file components the better tool for your project:

  • They can be defined locally, instead of globally.

  • You can define your component’s <template> outside of your JavaScript, which allows for syntax highlighting in your text editor, unlike with string templates.

  • CSS/styling information is included in the component definition.

Inspecting a Single File Component

Single file components are contained in files with the .vue extension. Each .vue file consists of three parts: template, script, style. Let’s revisit our barebones component:

File: SkeletonComponent.vue
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
<template>
<h1>{{ greeting }}</h1>
</template>

<script>
export default {
    name: 'SkeletonComponent',
    data: function() {
        return {
            greeting: 'Hello'
        };
    },
    props: [],
    methods: {
    },
    created: function(){
    }
}
</script>

<style scoped>
h1 {
    font-size: 2em;
    text-align: center;
}
</style>
  • Lines 1-3 of the component define the <template>, where we specify the HTML template of our component. In comparison, a regular component’s template is represented with a string property inside the component’s JavaScript. This can become increasingly confusing for complex components, because there is no syntax highlighting within the string.

    Another benefit for your templates is that you do not have to adjust the {{ }} mustache tag delimiters to [[ ]] or something else if you are working with another framework that already uses them.

    Note
    For example, Symfony developers using VueJS would have to update their delimiter configuration, because Twig already uses mustache delimiters for its rendering methods. Even though this might be a fairly trivial task, using single file components eliminates that need entirely.
  • The script section of the component (lines 5-19) defines the component’s properties and business logic. This is similar to how regular components are defined, but instead everything is within an export statement .

  • The style section, on lines 21-26, uses the scoped attribute to create component-specific CSS. If you were instead using regular components, you would have no way of adding component-specific CSS, and thus you would have to define your styles globally.

    This makes your components completely independent, so you can now not only use them in your current project, but reuse them among other projects as well. Finally, you can use preprocessors like SASS and Babel for the styling information in your component.

Prepare your Development Environment

One drawback of single file components for beginners is that they require webpack or Browserify to build. These tools bundle your application’s dependencies, but they can add to the learning curve. Vue provides a CLI package that’s built on top of webpack and which simplifies managing your project.

We’ll use this tool throughout this guide; to install it, run:

sudo npm install -g @vue/cli

The Vue CLI will now be available globally on your workstation (because the -g flag was used).

Note

If you’re using NVM , you can install Vue CLI without sudo:

npm install -g @vue/cli

Create your Project

All of the examples in this guide will live under a single project. Run the vue create command to create a directory for this project and have Vue CLI build the project skeleton for you:

vue create single-file-components --packageManager=npm

Vue CLI v4.3.1
? Please pick a preset: (Use arrow keys)
❯ default (babel, eslint)
Manually select features
Note
You can specify --packageManager=yarn if you prefer yarn to npm.

The CLI uses pretty sensible defaults, so if you’re a beginner you can just press enter and the Vue CLI will build your first project and install the needed dependencies. If you haven’t done this before, it might take a while to fetch the needed dependencies.

Now let’s test:

cd single-file-components && npm run serve
DONE Compiled successfully in 3398ms

App running at:

-   Local: http://localhost:8080/
-   Network: unavailable

Note that the development build is not optimized.
To create a production build, run npm run build.

What npm run serve does is run the development server, but the cool thing is that while you make changes the dev server automatically rebuilds the project and injects the changes in the browser, so you don’t even have to refresh.

Now, if everything is fine, you should be able to open http://localhost:8080 in your browser and you will see the VueJS welcome screen:

VueJS Welcome Screen

Let’s look at the directory structure of the default application and go through each folder:

tree -I node_modules

.
├── babel.config.js
├── package.json
├── package-lock.json
├── public
│   ├── favicon.ico
│   └── index.html
├── README.md
└── src
    ├── App.vue
    ├── assets
    │   └── logo.png
    ├── components
    │   └── HelloWorld.vue
    └── main.js
Note
The -I node_modules option will tell tree to ignore your node_modules/ directory, which is where all of the node dependencies reside.

The public Folder and index.html

Files in the public folder will not be bundled by webpack. When your project is created, this folder will contain an index.html file :

File: index.html
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="utf-8" />
    <meta http-equiv="X-UA-Compatible" content="IE=edge" />
    <meta name="viewport" content="width=device-width,initial-scale=1.0" />
    <link rel="icon" href="<%= BASE_URL %>favicon.ico" />
    <title><%= htmlWebpackPlugin.options.title %></title>
</head>
<body>
    <noscript>
        <strong>
            We're sorry but <%= htmlWebpackPlugin.options.title %> doesn't
            work properly without JavaScript enabled. Please enable it to
            continue.
        </strong>
    </noscript>
    <div id="app"></div>
    <!-- built files will be auto injected -->
</body>
</html>

On lines 7, 8, and 13 you will notice the <%= %> syntax where the favicon link and page title are embedded; this is part of the lodash template syntax , which the index file is written in. While your index file isn’t included in webpack’s dependency bundle, it will be processed by the html-webpack-plugin , which does a few useful things:

  • It populates the variables that you embed using the template syntax. You can see more about the default variable values exposed by webpack here .

  • It automatically connects your index to the app bundle that webpack compiles: on line 19, you’ll see a comment that says the files built by webpack are auto-injected by the build procedure.

    This is an example of what the file will look like after the build procedure:

    File: index.html
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24

    <!DOCTYPE html>
    <html lang=en>
    <head>
        <meta charset=utf-8>
        <meta http-equiv=X-UA-Compatible content="IE=edge">
        <meta name=viewport content="width=device-width,initial-scale=1">
        <link rel=icon href=/favicon.ico> <title>single-file-components</title>
        <link href=/css/app.fb0c6e1c.css rel=preload as=style>
        <link href=/js/app.ae3090b2.js rel=preload as=script>
        <link href=/js/chunk-vendors.b4c61135.js rel=preload as=script>
        <link href=/css/app.fb0c6e1c.css rel=stylesheet>
    </head>
    <body>
        <noscript>
            <strong>
                We're sorry but single-file-components doesn't work properly without JavaScript enabled. Please
                enable it to continue.
            </strong>
        </noscript>
        <div id=app></div>
        <script src=/js/chunk-vendors.b4c61135.js></script>
        <script src=/js/app.ae3090b2.js></script>
    </body>
    </html>

    Notice that your app’s script and CSS dependencies have been added to the file on lines 21 and 22, and that these files have random hash appended their names (e.g. app.ae3090b2.js). These hashes will change over time for subsequent builds of your app, and the html-webpack-plugin will keep the hash updated in your index. Without this feature, you would need to update those lines for each build.

The rest of the body contains these elements:

  • The noscript tag, which is in place to warn users with disabled JS that the app will not work unless they enable it.
  • The <div id="app"></div> container where our VueJS app will be bound.

The src Folder

The src/ folder is where most of your work will be done. The src/main.js file will serve as the entry point for webpack’s build process:

File: src/main.js
1
2
3
4
5
6
7
8
import Vue from 'vue'
import App from './App.vue'

Vue.config.productionTip = false

new Vue({
    render: h => h(App),
}).$mount('#app')

This file imports VueJS (line 1), imports the App component from the src folder (line 2), and binds the App component to the container with the id property set to app (lines 6-8).

Now to the interesting part: src/App.vue:

File: src/App.vue
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
<template>
    <div id="app">
        <img alt="Vue logo" src="./assets/logo.png" />
        <HelloWorld msg="Welcome to Your Vue.js App" />
    </div>
</template>

<script>
import HelloWorld from "./components/HelloWorld.vue";
export default {
    name: "App",
    components: {
        HelloWorld,
    },
};
</script>

<style>
#app {
    font-family: Avenir, Helvetica, Arial, sans-serif;
    -webkit-font-smoothing: antialiased;
    -moz-osx-font-smoothing: grayscale;
    text-align: center;
    color: #2c3e50;
    margin-top: 60px;
}
</style>

This is a simple single file component relatively similar to the example we discussed above, but this example shows how to import and use components:

  • On line 9, the HelloWorld component is imported.

  • On lines 12-14, the HelloWorld component is locally registered for use within the App component. The registered component can only be used in the template of the parent component that registered it. Contrast this with the components in Building and Using VueJS Components , which were globally registered .

    Note
    Local registration is a valuable architectural feature for reusable components within big projects.
  • The HelloWorld component is used within the App component’s template on line 4.

Building your First Single File Components

Now that we’ve covered the basic structure of the project created by Vue CLI, let’s build our own components on top of that. As in Building and Using VueJS Components , we will again be building a rating application, but this time it will be a little more sophisticated.

This is what your rating app will look like:

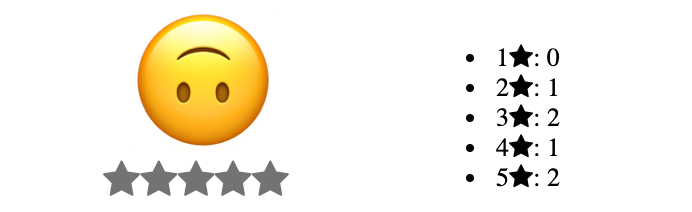

Rating App - Finished Product

This is how it will behave:

  • Clicking on a star on the left side will register a vote for that star.

  • The left side will interactively change when a user hovers over the stars.

  • It will allow the user to rate only once on each visit to the page. If the page is refreshed, or if it is visited again later, the user can vote again.

  • It will keep score of votes between page visits in the browser’s local storage.

Here’s how the app’s template will look in protocode; you do not need to copy and paste this:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
<div id="app">
    <div class="inner">
        <div class="ratingContainer">
            <span class="bigRating"></span>
            <div class="rating-stars">
                <Star weight="1"></Star>
                <Star weight="2"></Star>
                <Star weight="3"></Star>
                <Star weight="4"></Star>
                <Star weight="5"></Star>
            </div>
        </div>
        <Summary></Summary>
    </div>
</div>

We’ll make each star a separate component (named Star), and we’ll also create a Summary component which will hold the summary of the votes.

App.vue

To start, replace the content of your App.vue with this snippet:

File: src/App.vue
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
<template>
    <div id="app">
        <div class="inner">
            <div class="ratingContainer">
                <span class="bigRating" v-html="bigRating"></span>
                <div>
                    <Star
                        v-for="index in 5"
                        v-bind:key="index"
                        v-bind:weight="index"
                        v-bind:enabled="enabled"
                        v-bind:currentRating="currentRating"
                    ></Star>
                </div>
            </div>
            <Summary v-bind:ratings="ratings"></Summary>
        </div>
    </div>
</template>

<script>
import Star from "./components/Star.vue";
import Summary from "./components/Summary.vue";

export default {
    name: "App",
    components: { Star, Summary },
    data: function () {
        return {
            currentRating: 0,
            bigRating: "&#128566;", // Emoji: 😶
            enabled: true,
            ratings: [
                {
                    weight: 1,
                    votes: 0,
                },
                {
                    weight: 2,
                    votes: 0,
                },
                {
                    weight: 3,
                    votes: 0,
                },
                {
                    weight: 4,
                    votes: 0,
                },
                {
                    weight: 5,
                    votes: 0,
                },
            ],
        };
    },
    methods: {},
    created: function () {
        if (localStorage.ratings) {
            this.ratings = JSON.parse(localStorage.ratings);
        }
    },
};
</script>

<style>
@import url(https://fonts.googleapis.com/css?family=Roboto:100, 300, 400);
@import url(https://netdna.bootstrapcdn.com/font-awesome/3.2.1/css/font-awesome.css);
#app {
    width: 400px;
}
.ratingContainer {
    float: left;
    width: 45%;
    margin-right: 5%;
    text-align: center;
}
.bigRating {
    color: #333333;
    font-size: 72px;
    font-weight: 100;
    line-height: 1em;
    padding-left: 0.1em;
}
</style>

This is the main component, but there are no methods set on it yet, so for now it doesn’t have any functionality. Here are some notable parts of the code:

  • <template>:

    • On lines 7-13, all five Star components are rendered from a single <Star> declaration with the v-for="index in 5" syntax. A weight is assigned to each Star by the v-bind:weight="index" syntax. The key attribute is also bound to the index. The enabled and currentRating props will be bound to values that are described in the <script> section.

      Note
      The v-for syntax is similar to the following for loop: for(let index=1;index<=5;index++).
    • On line 16, the Summary component is rendered. It will display data from the bound ratings property.

  • <script>

    • Lines 22 and 23 import the Star and Summary components, which are then registered on line 27. These will be created separately in the next section.

    • The data function is declared on lines 28-56, and it contains the following variables which will control the functionality of the app once the methods are added later:

      • currentRating: As we hover over the stars, we will use this variable to store the rating of the hovered star.

      • bigRating: This will be set to an emoticon that represents the currentRating.

      • enabled: This will be used to disable the rating application once the user has cast a vote.

      • ratings: This is a structure for the votes that have been cast. We set the default value in the data function, and if there are any votes saved in the browser’s local storage, then we overwrite the defaults, which imitates a persistence layer. In the created hook (lines 58-62) you can see how we fetch the saved cast votes.

Star.vue and Summary.vue

In your src/components/ directory, create two files named Star.vue and Summary.vue and paste these snippets into them:

File: src/components/Star.vue
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
<template>
    <i class="icon-star"></i>
</template>

<script>
export default {
    name: "Star",
    props: ["weight", "enabled", "currentRating"]
};
</script>

<style scoped>
i.icon-star {
    font-size: 20px;
    color: #e3e3e3;
    margin-bottom: 0.5em;
}
</style>
File: src/components/Summary.vue
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
<template>
    <div class="summaryContainer">
        <ul>
            <li v-for="rating in ratings" v-bind:key="rating.weight">
                {{ rating.weight }}<i class="icon-star"></i>: {{ rating.votes }}
            </li>
        </ul>
    </div>
</template>

<script>
export default {
    name: "Summary",
    props: ["ratings"]
};
</script>

<style scoped>
.summaryContainer {
    float: left;
    width: 50%;
    font-size: 13px;
}
</style>

Here are some notable parts of the code:

  • In both components, the Font Awesome icon-star is used. On lines 13-17 of Star.vue, some styling is set for the icons in the Star component, including setting the color to light grey.

    Because this style section uses the scoped attribute, these styles are limited to the Star component. As a result, the icons in the Summary component are not also styled in this way.

  • On lines 4-6 of Summary.vue, the v-for syntax is used again to display the rating votes.

After creating Star.vue and Summary.vue, the application can be viewed in the browser. Head to http://127.0.0.1:8080 and you will see the following:

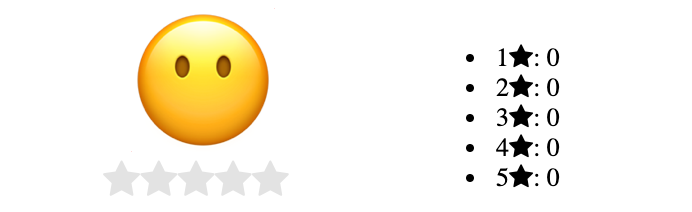

Rating App - No Votes, Noninteractive

Because there are no methods set on the components yet, it will not be interactive.

Note
If you’re not still running npm run serve in your terminal, you’ll need to re-run it from inside your project.

Adding Methods to the Components

The application right now is a skeleton, so now we’ll make it work. These three custom events will be handled:

  • When you hover over a star, all previous stars will be highlighted in yellow. For example, if you hover over the star number 4, stars 1-3 also get highlighted.

  • When your mouse moves away, the highlight will be removed.

  • When you click on a star, a vote is cast and you no longer can vote until you visit the page again.

Updating App.vue

  1. Update the Star component declaration in the <template> of src/App.vue to match this snippet:

    File: src/App.vue
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12

    <!-- ... --->
    <Star
        v-for="index in 5"
        v-bind:key="index"
        v-bind:weight="index"
        v-bind:enabled="enabled"
        v-bind:currentRating="currentRating"
        v-on:lightUp="lightUpHandler"
        v-on:lightDown="lightDownHandler"
        v-on:rate="rateHandler"
    ></Star>
    <!-- ... --->

    The new additions to this declaration are the v-on directives, which set methods as event handlers for the custom lightUp, lightDown, and rate events.

    Note
    The Star component will be updated in the next section to emit those events.
  2. Next, replace the methods object in the component with the following snippet. These are the event handlers:

    File: src/App.vue
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36

    // ...
    methods: {
        lightUpHandler: function (weight) {
            this.currentRating = weight;

            // Display different emojis based on the weight
            if (weight <= 2) {
                this.bigRating = "&#128549;"; // Emoji: 😥
            }
            if (weight > 2 && weight <= 4) {
                this.bigRating = "&#128556;"; // Emoji: 😬
            }
            if (weight > 4) {
                this.bigRating = "&#128579;"; // Emoji: 🙃
            }
        },
        lightDownHandler: function () {
            // Reset on mouse away
            this.currentRating = 0;
            this.bigRating = "&#128566;"; // Emoji: 😶
        },
        rateHandler: function (weight) {
            this.currentRating = weight;

            // Finding the relevant rating and incrementing the cast votes
            let rating = this.ratings.find((obj) => obj.weight == weight);
            rating.votes++;

            // Disabling from voting again
            this.enabled = false;

            // Saves the votes to the browser localStorage
            localStorage.setItem("ratings", JSON.stringify(this.ratings));
        },
    },
    // ...

    • The lightUpHandler and rateHandler methods receive a weight from the Star component that emitted the corresponding event. These methods set the weight as the currentRating.

    • At the end of the rateHandler method, the component’s ratings are converted to a JSON object and saved so we can use them as a starting point the next time the page loads (line 33).

    At this point, your App.vue should be the same as this snippet:

    File: src/App.vue
      1
      2
      3
      4
      5
      6
      7
      8
      9
     10
     11
     12
     13
     14
     15
     16
     17
     18
     19
     20
     21
     22
     23
     24
     25
     26
     27
     28
     29
     30
     31
     32
     33
     34
     35
     36
     37
     38
     39
     40
     41
     42
     43
     44
     45
     46
     47
     48
     49
     50
     51
     52
     53
     54
     55
     56
     57
     58
     59
     60
     61
     62
     63
     64
     65
     66
     67
     68
     69
     70
     71
     72
     73
     74
     75
     76
     77
     78
     79
     80
     81
     82
     83
     84
     85
     86
     87
     88
     89
     90
     91
     92
     93
     94
     95
     96
     97
     98
     99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110
    111
    112
    113
    114
    115
    116
    117
    118
    119
    120
    121

    <template>
        <div id="app">
            <div class="inner">
                <div class="ratingContainer">
                    <span class="bigRating" v-html="bigRating"></span>
                    <div>
                        <Star
                            v-for="index in 5"
                            v-bind:key="index"
                            v-bind:weight="index"
                            v-bind:enabled="enabled"
                            v-bind:currentRating="currentRating"
                            v-on:lightUp="lightUpHandler"
                            v-on:lightDown="lightDownHandler"
                            v-on:rate="rateHandler"
                        ></Star>
                    </div>
                </div>
                <Summary v-bind:ratings="ratings"></Summary>
            </div>
        </div>
    </template>

    <script>
    import Star from "./components/Star.vue";
    import Summary from "./components/Summary.vue";

    export default {
        name: "App",
        components: { Star, Summary },
        data: function () {
            return {
                currentRating: 0,
                bigRating: "&#128566;", // Emoji: 😶
                enabled: true,
                ratings: [
                    {
                        weight: 1,
                        votes: 0,
                    },
                    {
                        weight: 2,
                        votes: 0,
                    },
                    {
                        weight: 3,
                        votes: 0,
                    },
                    {
                        weight: 4,
                        votes: 0,
                    },
                    {
                        weight: 5,
                        votes: 0,
                    },
                ],
            };
        },
        methods: {
            lightUpHandler: function (weight) {
                this.currentRating = weight;

                // Display different emojis based on the weight
                if (weight <= 2) {
                    this.bigRating = "&#128549;"; // Emoji: 😥
                }
                if (weight > 2 && weight <= 4) {
                    this.bigRating = "&#128556;"; // Emoji: 😬
                }
                if (weight > 4) {
                    this.bigRating = "&#128579;"; // Emoji: 🙃
                }
            },
            lightDownHandler: function () {
                // Reset on mouse away
                this.currentRating = 0;
                this.bigRating = "&#128566;"; // Emoji: 😶
            },
            rateHandler: function (weight) {
                this.currentRating = weight;

                // Finding the relevant rating and incrementing the cast votes
                let rating = this.ratings.find((obj) => obj.weight == weight);
                rating.votes++;

                // Disabling from voting again
                this.enabled = false;

                // Saves the votes to the browser localStorage
                localStorage.setItem("ratings", JSON.stringify(this.ratings));
            },
        },
        created: function () {
            if (localStorage.ratings) {
                this.ratings = JSON.parse(localStorage.ratings);
            }
        },
    };
    </script>

    <style>
    @import url(https://fonts.googleapis.com/css?family=Roboto:100, 300, 400);
    @import url(https://netdna.bootstrapcdn.com/font-awesome/3.2.1/css/font-awesome.css);
    #app {
        width: 400px;
    }
    .ratingContainer {
        float: left;
        width: 45%;
        margin-right: 5%;
        text-align: center;
    }
    .bigRating {
        color: #333333;
        font-size: 72px;
        font-weight: 100;
        line-height: 1em;
        padding-left: 0.1em;
    }
    </style>

Updating Star.vue

Let’s modify the Star component to emit the events:

  1. In the template of Star.vue, replace the <i> element with this snippet:

    File: src/components/Star.vue
    1
    2
    3
    4
    5
    6
    7
    8

    <!-- ... --->
    <i
        v-bind:class="getClass()"
        v-on:mouseover="mouseoverHandler"
        v-on:mouseleave="mouseleaveHandler"
        v-on:click="clickHandler"
    ></i>
    <!-- ... --->
    • The CSS classes of the icon will now be dynamically generated by a getClass method on the component. This change is made so that the hover highlight effect can be toggled by a CSS class.

    • The mouseover, mouseleave, and click DOM events are associated with new handler methods that will also be added to the component.

  2. In the script section, add this data function to the component:

    File: src/components/Star.vue
    1
    2
    3
    4
    5
    6
    7

    // ...
    data: function () {
        return {
            hover: false,
        };
    },
    // ...


    The hover variable will maintain the hover state of the component.

  3. Also in the script section, add this methods object to the component:

    File: src/components/Star.vue
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40

    // ...
    methods: {
        getClass: function () {
            var baseClass = "icon-star";

            // Adds the hover class if you're hovering over the component or you are hovering over a star with greater weight
            if (this.hover || this.currentRating >= this.weight) {
                baseClass += " hover";
            }
            return baseClass;
        },
        mouseoverHandler: function () {
            // Makes sure stars are not lighting up after vote is cast
            if (this.enabled) {
                // Emits the lightUp event with the weight as a parameter
                this.$emit("lightUp", this.weight);
                // Enables hover class
                this.hover = true;
            }
        },
        mouseleaveHandler: function () {
            // Makes sure stars are not lighting up after vote is cast
            if (this.enabled) {
                // Emits the lightDown event
                this.$emit("lightDown", this.weight);
                // Removes hover class
                this.hover = false;
            }
        },
        clickHandler: function () {
            // Makes sure you only vote if you haven't voted yet
            if (this.enabled) {
                // Emits the rate event with the weight as parameter
                this.$emit("rate", this.weight);
            } else {
                alert("Already voted");
            }
        },
    },
    // ...

    • The mouseoverHandler, mouseleaveHandler, and clickHandler methods will emit the lightUp, lightDown, and rate custom events, respectively.

    • These methods also first check to see if enabled has been set to false; if false, then the methods do nothing, which means that the DOM events will result in no action.

    • In the getClass method, the currentRating prop is used to determine if a star icon should be highlighted. This prop was previously bound to the currentRating data property of the App component.

      Note
      The currentRating prop is not a particularly beautiful solution, but we will improve on that further in the guide.
  4. Finally, add this rule to the style section:

    File: src/components/Star.vue
    1
    2
    3
    4
    5

    /* ... */
    i.icon-star.hover {
        color: yellow;
    }
    /* ... */

    At this point, your Star.vue should be the same as this snippet:

    File: src/components/Star.vue
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69

    <template>
        <i
            v-bind:class="getClass()"
            v-on:mouseover="mouseoverHandler()"
            v-on:mouseleave="mouseleaveHandler()"
            v-on:click="clickHandler()"
        ></i>
    </template>

    <script>
    export default {
        name: "Star",
        data: function () {
            return {
                hover: false,
            };
        },
        props: ["weight", "enabled", "currentRating"],
        methods: {
            getClass: function () {
                var baseClass = "icon-star";

                // Adds the hover class if you're hovering over the component or you are hovering over a star with greater weight
                if (this.hover || this.currentRating >= this.weight) {
                    baseClass += " hover";
                }
                return baseClass;
            },
            mouseoverHandler: function () {
                // Makes sure stars are not lighting up after vote is cast
                if (this.enabled) {
                    // Emits the lightUp event with the weight as a parameter
                    this.$emit("lightUp", this.weight);
                    // Enables hover class
                    this.hover = true;
                }
            },
            mouseleaveHandler: function () {
                // Makes sure stars are not lighting up after vote is cast
                if (this.enabled) {
                    // Emits the lightDown event
                    this.$emit("lightDown", this.weight);
                    // Removes hover class
                    this.hover = false;
                }
            },
            clickHandler: function () {
                // Makes sure you only vote if you haven't voted yet
                if (this.enabled) {
                    // Emits the rate event with the weight as parameter
                    this.$emit("rate", this.weight);
                } else {
                    alert("Already voted");
                }
            },
        },
    };
    </script>

    <style scoped>
    i.icon-star {
        font-size: 20px;
        color: #e3e3e3;
        margin-bottom: 0.5em;
    }
    i.icon-star.hover {
        color: yellow;
    }
    </style>
  5. Head to http://localhost:8080/ in your browser, and you should see that your rating application now works. Try hovering over the stars and clicking on them to observe the interaction. If you refresh the page, you can vote again, and the votes will be tallied:

Rating App - With Rating Interaction

Communication between Components Via an Event Bus

Notice how clumsy all of the v-on directives chained one after the other look:

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
<Star
    v-for="index in 5"
    v-bind:key="index"
    v-bind:weight="index"
    v-bind:enabled="enabled"
    v-bind:currentRating="currentRating"
    v-on:lightUp="lightUpHandler"
    v-on:lightDown="lightDownHandler"
    v-on:rate="rateHandler"
></Star>

This setup can be inelegant to scale: imagine having 10 of those on a single component, and then imagine you have 10 components. The directives would become hard to follow, so it’s worth exploring other ways to communicate between components.

Fortunately, VueJS supports a publish-subscribe pattern called an event bus. You can easily implement it in your components to make things a bit more elegant.

Event Bus Basics

In VueJS, an event bus is a new Vue instance that is declared globally (in main.js, for example):

File: src/main.js
1
2
3
// ...
export const eventBus = new Vue();
// ...

It is then imported in each component which accesses it:

File: AnyComponent.vue
1
2
3
// ...
import { eventBus } from "../main.js";
// ...

Components can emit events to the event bus:

File: SomeComponent.vue
1
2
3
// ...
eventBus.$emit("event", parameter);
// ...

Other components will register event handlers on the same event bus with the $on method :

File: AnotherComponent.vue
1
2
3
4
5
// ...
eventBus.$on("event", (parameter) => {
    // Do stuff
});
// ...

Basically, think of the event bus as a global communication layer between your components.

Adding an Event Bus to your App

Now let’s rebuild our example to take advantage of an event bus:

  1. Open main.js and replace its content with this snippet:

    File: src/main.js
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10

    import Vue from "vue";
    import App from "./App.vue";

    Vue.config.productionTip = false;

    export const eventBus = new Vue();

    new Vue({
        render: h => h(App)
    }).$mount("#app");

    This update adds an event bus declaration on line 6.

  2. Open App.vue and replace its content with this snippet:

    File: src/App.vue
      1
      2
      3
      4
      5
      6
      7
      8
      9
     10
     11
     12
     13
     14
     15
     16
     17
     18
     19
     20
     21
     22
     23
     24
     25
     26
     27
     28
     29
     30
     31
     32
     33
     34
     35
     36
     37
     38
     39
     40
     41
     42
     43
     44
     45
     46
     47
     48
     49
     50
     51
     52
     53
     54
     55
     56
     57
     58
     59
     60
     61
     62
     63
     64
     65
     66
     67
     68
     69
     70
     71
     72
     73
     74
     75
     76
     77
     78
     79
     80
     81
     82
     83
     84
     85
     86
     87
     88
     89
     90
     91
     92
     93
     94
     95
     96
     97
     98
     99
    100
    101
    102
    103
    104
    105
    106
    107
    108
    109
    110

    <template>
        <div id="app">
            <div class="inner">
                <div class="ratingContainer">
                    <span class="bigRating" v-html="bigRating"></span>
                    <div>
                        <Star
                            v-for="index in 5"
                            v-bind:key="index"
                            v-bind:weight="index"
                            v-bind:enabled="enabled"
                        ></Star>
                    </div>
                </div>
                <Summary v-bind:ratings="ratings"></Summary>
            </div>
        </div>
    </template>

    <script>
    import Star from "./components/Star.vue";
    import Summary from "./components/Summary.vue";

    import { eventBus } from "./main.js";

    export default {
        name: "App",
        components: { Star, Summary },
        data: function () {
            return {
                bigRating: "&#128566;", // Emoji: 😶
                enabled: true,
                ratings: [
                    {
                        weight: 1,
                        votes: 0,
                    },
                    {
                        weight: 2,
                        votes: 0,
                    },
                    {
                        weight: 3,
                        votes: 0,
                    },
                    {
                        weight: 4,
                        votes: 0,
                    },
                    {
                        weight: 5,
                        votes: 0,
                    },
                ],
            };
        },
        created: function () {
            if (localStorage.ratings) {
                this.ratings = JSON.parse(localStorage.ratings);
            }
            eventBus.$on("lightUp", (weight) => {
                // Display different emojis based on the weight
                if (weight <= 2) {
                    this.bigRating = "&#128549;"; // Emoji: 😥
                }
                if (weight > 2 && weight <= 4) {
                    this.bigRating = "&#128556;"; // Emoji: 😬
                }
                if (weight > 4) {
                    this.bigRating = "&#128579;"; // Emoji: 🙃
                }
            });
            eventBus.$on("lightDown", () => {
                this.bigRating = "&#128566;"; // Emoji: 😶
            });
            eventBus.$on("rate", (weight) => {
                // Finding the relevant rating and incrementing the cast votes
                let rating = this.ratings.find((obj) => obj.weight == weight);
                rating.votes++;

                // Disabling from voting again
                this.enabled = false;

                // Saves the votes to the browser localStorage
                localStorage.setItem("ratings", JSON.stringify(this.ratings));
            });
        },
    };
    </script>

    <style>
    @import url(https://fonts.googleapis.com/css?family=Roboto:100, 300, 400);
    @import url(https://netdna.bootstrapcdn.com/font-awesome/3.2.1/css/font-awesome.css);
    #app {
        width: 400px;
    }
    .ratingContainer {
        float: left;
        width: 45%;
        margin-right: 5%;
        text-align: center;
    }
    .bigRating {
        color: #333333;
        font-size: 72px;
        font-weight: 100;
        line-height: 1em;
        padding-left: 0.1em;
    }
    </style>

    The following changes have been made in this updated file:

    • The eventBus instance is imported on line 24.
    • We removed the v-on directives from the Star component declaration in the template (lines 7-12).
    • The component’s methods have been removed, which previously served as the event handlers for the v-on directives.
    • Instead, we subscribe to the events in the created hook (lines 61-86). The logic that was in the component’s methods has been moved here.
    • We also no longer need the currentRating data property, so it has been removed. This is because the Star components will also subscribe to the event bus and can be directly notified of all lightUp and rate events.

    The template looks much leaner now, and you can easily spot the subscribed events by simply having a look in the created hook.

  3. Open Star.vue and replace its content with this snippet:

    File: src/components/Star.vue
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    48
    49
    50
    51
    52
    53
    54
    55
    56
    57
    58
    59
    60
    61
    62
    63
    64
    65
    66
    67
    68
    69
    70
    71
    72
    73
    74
    75
    76
    77
    78
    79
    80
    81
    82
    83
    84
    85
    86
    87
    88
    89

    <template>
        <i
            v-bind:class="getClass()"
            v-on:mouseover="mouseoverHandler"
            v-on:mouseleave="mouseleaveHandler"
            v-on:click="clickHandler"
        ></i>
    </template>

    <script>
    import { eventBus } from "../main.js";

    export default {
        name: "Star",
        data: function () {
            return {
                hover: false,
                active: false,
            };
        },
        props: ["weight", "enabled"],
        methods: {
            getClass: function () {
                var baseClass = "icon-star";
                if (this.active) {
                    baseClass += " active";
                }
                if (this.hover) {
                    baseClass += " hover";
                }
                return baseClass;
            },
            mouseoverHandler: function () {
                // Makes sure stars are not lighting up after vote is cast
                if (this.enabled) {
                    // Emits the lightUp event with the weight as a parameter
                    eventBus.$emit("lightUp", this.weight);
                }
            },
            mouseleaveHandler: function () {
                // Makes sure stars are not lighting up after vote is cast
                if (this.enabled) {
                    // Emits the lightDown event
                    eventBus.$emit("lightDown");
                }
            },
            clickHandler: function () {
                // Makes sure you only vote if you haven't voted yet
                if (this.enabled) {
                    // Emits the rate event with the weight as parameter
                    eventBus.$emit("rate", this.weight);
                } else {
                    alert("Already voted");
                }
            },
        },
        created: function () {
            eventBus.$on("lightUp", (targetWeight) => {
                if (targetWeight >= this.weight) {
                    this.hover = true;
                } else {
                    this.hover = false;
                }
            });
            eventBus.$on("lightDown", () => {
                this.hover = false;
            });
            eventBus.$on("rate", (targetWeight) => {
                if (targetWeight >= this.weight) {
                    this.active = true;
                }
            });
        },
    };
    </script>

    <style scoped>
    i.icon-star {
        font-size: 20px;
        color: #e3e3e3;
        margin-bottom: 0.5em;
    }
    i.icon-star.hover {
        color: yellow;
    }
    i.icon-star.active {
        color: #737373;
    }
    </style>

    The following changes have been made in this updated file:

    • The eventBus instance is imported on line 11.
    • The currentRating prop has been removed (line 21).
    • We’ve modified the handler methods to emit the events on the eventBus instance (lines 22-56)
    • We also subscribe to the same events from the created hook (lines 57-73), so that all Star components are aware of which component the user is currently hovering over without needing the currentRating prop.
    • We’ve added an active class to the component’s style (lines 86-88). This is enabled when a user enters a rating, and it sets a different highlight color for the stars. To enable the class, an active data property has been added to the component (line 18), and it is set to true within the rate event handling logic (line 70).

    Rating App - With Event Bus

More Information

You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.

This page was originally published on


Your Feedback Is Important

Let us know if this guide was helpful to you.


Join the conversation.
Read other comments or post your own below. Comments must be respectful, constructive, and relevant to the topic of the guide. Do not post external links or advertisements. Before posting, consider if your comment would be better addressed by contacting our Support team or asking on our Community Site.
The Disqus commenting system for Linode Docs requires the acceptance of Functional Cookies, which allow us to analyze site usage so we can measure and improve performance. To view and create comments for this article, please update your Cookie Preferences on this website and refresh this web page. Please note: You must have JavaScript enabled in your browser.
