Configuring Load Balancing with TLS Encryption on a Kubernetes Cluster

This guide will use an example Kubernetes Deployment and Service to demonstrate how to route external traffic to a Kubernetes application over HTTPS. This is accomplished using the NGINX Ingress Controller, cert-manager and Linode NodeBalancers. The NGINX Ingress Controller uses Linode NodeBalancers, which are Linode’s load balancing service, to route a Kubernetes Service’s traffic to the appropriate backend Pods over HTTP and HTTPS. The cert-manager tool creates a Transport Layer Security (TLS) certificate from the Let’s Encrypt certificate authority (CA) providing secure HTTPS access to a Kubernetes Service.

Before You Begin

1. Review the Beginner’s Guide to Kubernetes series to gain an understanding of key concepts within Kubernetes, including master and worker nodes, Pods, Deployments, and Services.

2. Purchase a domain name from a reliable domain registrar. In a later section, you will use Linode’s DNS Manager to create a new Domain and to add a DNS “A” record for two subdomains: one named blog and another named shop. Your subdomains will point to the example Kubernetes Services you will create in this guide. The example domain names used throughout this guide are blog.example.com and shop.example.com.

   Note

   Optionally, you can create a Wildcard DNS record, *.example.com and point your NodeBalancer’s external IP address to it. Using a Wildcard DNS record, will allow you to expose your Kubernetes services without requiring further configuration using the Linode DNS Manager.

Creating and Connecting to a Kubernetes Cluster

1. Create a Kubernetes cluster through the Linode Kubernetes Engine (LKE) using either the Cloud Manager, the Linode API, or Terraform:

   • Cloud Manager LKE instructions
   • Linode API LKE instructions
   • Terraform instructions

   You can also use an unmanaged Kubernetes cluster (that’s not deployed through LKE). The instructions within this guide depend on the Linode Cloud Controller Manager (CCM), which is installed by default on LKE clusters but needs to be manually installed on unmanaged clusters. To learn how to install the Linode CCM on a cluster that was not deployed through LKE, see the Installing the Linode CCM on an Unmanaged Kubernetes Cluster guide.

2. Setup your local environment by installing Helm 3 and kubectl on your computer (or whichever system you intend to use to manage your Kubernetes Cluster).

3. Configure kubectl to use the new Kubernetes cluster by downloading the kubeconfig YAML file and adding it to kubectl. See the instructions within the Download Your kubeconfig guide.

Create an Example Application

The primary focus of this guide is to show you how to use the NGINX Ingress Controller and cert-manager to route traffic to a Kubernetes application over HTTPS. In this section, you will create two example applications that you will route external traffic to in a later section. The example application displays a page that returns information about the Deployment’s current backend Pod. This sample application is built using NGINX’s demo Docker image, nginxdemos/hello. You can replace the example applications used in this section with your own.

Create your Application Service and Deployment

Each example manifest file creates three Pods to serve the application.

1. Using a text editor, create a new file named hello-one.yaml with the contents of the example file.

   File: hello-one.yaml

   1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

   apiVersion: v1 kind: Service metadata: name: hello-one spec: type: ClusterIP ports: - port: 80 targetPort: 80 selector: app: hello-one --- apiVersion: apps/v1 kind: Deployment metadata: name: hello-one spec: replicas: 3 selector: matchLabels: app: hello-one template: metadata: labels: app: hello-one spec: containers: - name: hello-ingress image: nginxdemos/hello ports: - containerPort: 80

2. Create a second Service and Deployment manifest file named hello-two.yaml with the contents of the example file.

   File: hello-two.yaml

   1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

   apiVersion: v1 kind: Service metadata: name: hello-two spec: type: ClusterIP ports: - port: 80 targetPort: 80 selector: app: hello-two --- apiVersion: apps/v1 kind: Deployment metadata: name: hello-two spec: replicas: 3 selector: matchLabels: app: hello-two template: metadata: labels: app: hello-two spec: containers: - name: hello-ingress image: nginxdemos/hello ports: - containerPort: 80

3. Use kubectl to create the Services and Deployments for your example applications.

   kubectl create -f hello-one.yaml
   kubectl create -f hello-two.yaml

   You should see a similar output:

   service/hello-one created
   deployment.apps/hello-one created
   service/hello-two created
   deployment.apps/hello-two created

4. Verify that the Services are running.

   kubectl get svc

   You should see a similar output:

   NAME         TYPE        CLUSTER-IP       EXTERNAL-IP   PORT(S)   AGE
   hello-one    ClusterIP   10.128.94.166    <none>        80/TCP    6s
   hello-two    ClusterIP   10.128.102.187   <none>        80/TCP    6s
   kubernetes   ClusterIP   10.128.0.1       <none>        443/TCP   18m

Install the NGINX Ingress Controller

In this section you will use Helm to install the NGINX Ingress Controller on your Kubernetes Cluster. Installing the NGINX Ingress Controller will create Linode NodeBalancers that your cluster can make use of to load balance traffic to your example application.

1. Add the following Helm ingress-nginx repository to your Helm repos.

   helm repo add ingress-nginx https://kubernetes.github.io/ingress-nginx

2. Update your Helm repositories.

   helm repo update

3. Install the NGINX Ingress Controller. This installation will result in a Linode NodeBalancer being created.

   helm install ingress-nginx ingress-nginx/ingress-nginx

   You will see a similar output:

   NAME: ingress-nginx
   LAST DEPLOYED: Fri Apr  9 21:29:47 2021
   NAMESPACE: default
   STATUS: deployed
   REVISION: 1
   TEST SUITE: None
   NOTES:
   The ingress-nginx controller has been installed.
   It may take a few minutes for the LoadBalancer IP to be available.
   You can watch the status by running 'kubectl --namespace default get services -o wide -w ingress-nginx-controller'
   ...

Create Subdomain DNS Entries for your Example Applications

Now that Linode NodeBalancers have been created by the NGINX Ingress Controller, you can point a subdomain DNS entries to the NodeBalancer’s public IPv4 address. Since this guide uses two example applications, it will require two subdomain entries.

1. Access your NodeBalancer’s assigned external IP address.

   kubectl -n default get services -o wide ingress-nginx-controller

   The command will return a similar output:

   NAME                          TYPE           CLUSTER-IP      EXTERNAL-IP    PORT(S)                      AGE     SELECTOR
   my-ingress-nginx-controller   LoadBalancer   10.128.169.60   192.0.2.0   80:32401/TCP,443:30830/TCP   7h51m   app.kubernetes.io/instance=cingress-nginx,app.kubernetes.io/name=ingress-nginx

2. Copy the IP address of the EXTERNAL IP field and navigate to Linode’s DNS manager and add two “A” records for the blog and shop subdomains. Ensure you point each record to the NodeBalancer’s IPv4 address you retrieved in the previous step.

Now that your NGINX Ingress Controller has been deployed and your subdomains’ A records have been created, you are ready to enable HTTPS on each subdomain.

Create a TLS Certificate Using cert-manager

dig +short blog.example.com

To enable HTTPS on your example application, you will create a Transport Layer Security (TLS) certificate from the Let’s Encrypt certificate authority (CA) using the ACME protocol. This will be facilitated by cert-manager, the native Kubernetes certificate management controller.

In this section you will install cert-manager using Helm and the required cert-manager CustomResourceDefinitions (CRDs). Then, you will create a ClusterIssuer resource to assist in creating a cluster’s TLS certificate.

Install cert-manager

1. Install cert-manager’s CRDs.

   kubectl apply -f https://github.com/cert-manager/cert-manager/releases/download/v1.8.0/cert-manager.crds.yaml

2. Create a cert-manager namespace.

   kubectl create namespace cert-manager

3. Add the Helm repository which contains the cert-manager Helm chart.

   helm repo add cert-manager https://charts.jetstack.io

4. Update your Helm repositories.

   helm repo update

5. Install the cert-manager Helm chart. These basic configurations should be sufficient for many use cases, however, additional cert-manager configurable parameters can be found in cert-manager’s official documentation.

   helm install \
   my-cert-manager cert-manager/cert-manager \
   --namespace cert-manager \
   --version v1.8.0

6. Verify that the corresponding cert-manager pods are now running.

   kubectl get pods --namespace cert-manager

   You should see a similar output:

   NAME                                       READY   STATUS    RESTARTS   AGE
   cert-manager-579d48dff8-84nw9              1/1     Running   3          1m
   cert-manager-cainjector-789955d9b7-jfskr   1/1     Running   3          1m
   cert-manager-webhook-64869c4997-hnx6n      1/1     Running   0          1m

   Note

   You should wait until all cert-manager pods are ready and running prior to proceeding to the next section.

Create a ClusterIssuer Resource

1. Create a manifest file named acme-issuer-prod.yaml that will be used to create a ClusterIssuer resource on your cluster. Ensure you replace user@example.com with your own email address.

   File: acme-issuer-prod.yaml

   1 2 3 4 5 6 7 8 9 10 11 12 13 14

   apiVersion: cert-manager.io/v1 kind: ClusterIssuer metadata: name: letsencrypt-prod spec: acme: email: user@example.com server: https://acme-v02.api.letsencrypt.org/directory privateKeySecretRef: name: letsencrypt-secret-prod solvers: - http01: ingress: class: nginx

   • This manifest file creates a ClusterIssuer resource that will register an account on an ACME server. The value of spec.acme.server designates Let’s Encrypt’s production ACME server, which should be trusted by most browsers.

     Note

     Let’s Encrypt provides a staging ACME server that can be used to test issuing trusted certificates, while not worrying about hitting Let’s Encrypt’s production rate limits. The staging URL is https://acme-staging-v02.api.letsencrypt.org/directory.

   • The value of privateKeySecretRef.name provides the name of a secret containing the private key for this user’s ACME server account (this is tied to the email address you provide in the manifest file). The ACME server will use this key to identify you.

   • To ensure that you own the domain for which you will create a certificate, the ACME server will issue a challenge to a client. cert-manager provides two options for solving challenges, http01 and DNS01. In this example, the http01 challenge solver will be used and it is configured in the solvers array. cert-manager will spin up challenge solver Pods to solve the issued challenges and use Ingress resources to route the challenge to the appropriate Pod.

2. Create the ClusterIssuer resource:

   kubectl create -f acme-issuer-prod.yaml

   You should see a similar output:

   clusterissuer.cert-manager.io/letsencrypt-prod created

Enable HTTPS for your Application

Create the Ingress Resource

1. Create an Ingress resource manifest file named hello-app-ingress.yaml. If you assigned a different name to your ClusterIssuer, ensure you replace letsencrypt-prod with the name you used. Replace all hosts and host values with your own application’s domain name.

   File: hello-app-ingress.yaml

   1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34

   apiVersion: networking.k8s.io/v1 kind: Ingress metadata: name: hello-app-ingress annotations: kubernetes.io/ingress.class: "nginx" cert-manager.io/cluster-issuer: "letsencrypt-prod" spec: tls: - hosts: - blog.example.com - shop.example.com secretName: example-tls rules: - host: blog.example.com http: paths: - pathType: Prefix path: "/" backend: service: name: hello-one port: number: 80 - host: shop.example.com http: paths: - pathType: Prefix path: "/" backend: service: name: hello-two port: number: 80

   This resource defines how traffic coming from the Linode NodeBalancers is handled. In this case, NGINX will accept these connections over port 80, diverting traffic to both of your services via their domain names. The tls section of the Ingress resource manifest handles routing HTTPS traffic to the hostnames that are defined.

2. Create the Ingress resource.

   kubectl create -f hello-app-ingress.yaml

   You should see a similar output:

   ingress.networking.k8s.io/hello-app-ingress created

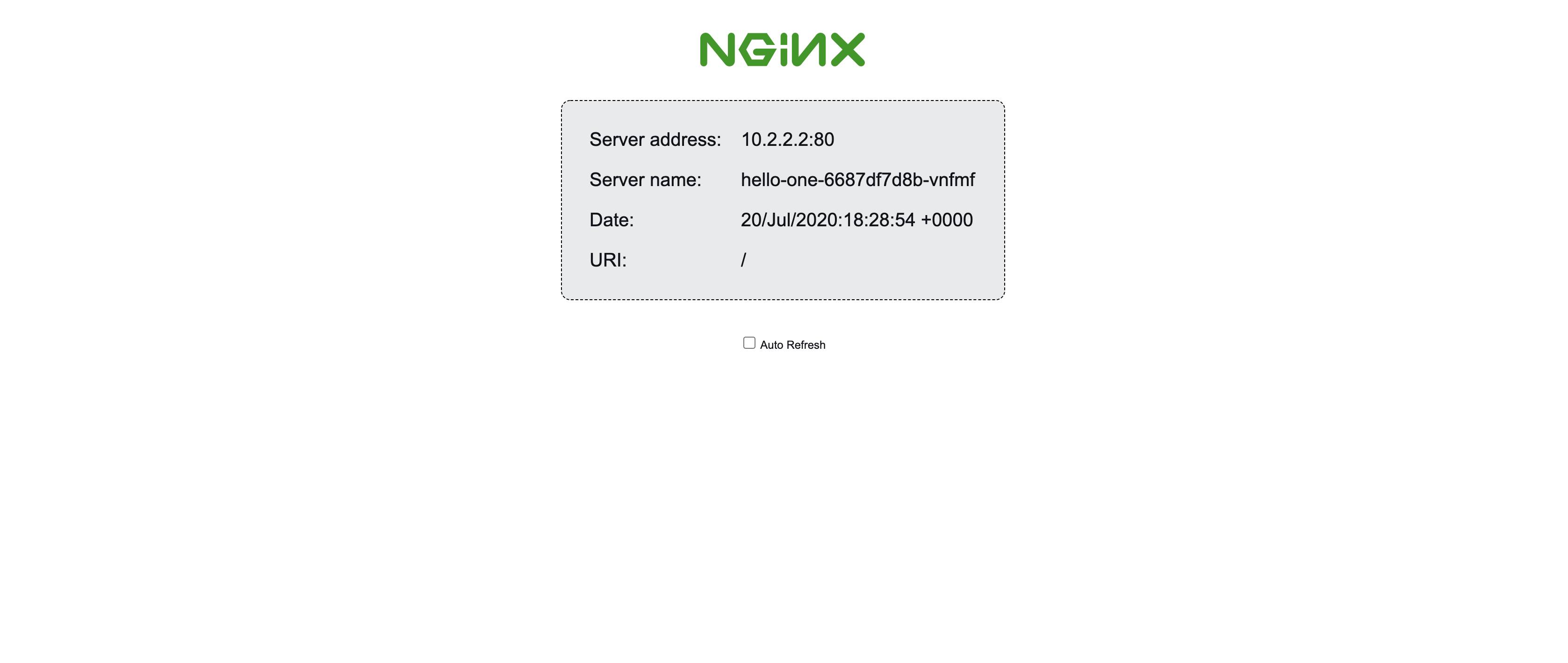

3. Navigate to your app’s domain or if you have been following along with the example, navigate to blog.example.com and then, shop.example.com. You should see the demo NGINX page load and display information about the Pod being used to serve your request. Keep in mind that it may take a few minutes for the TLS certificate to be fully issued.

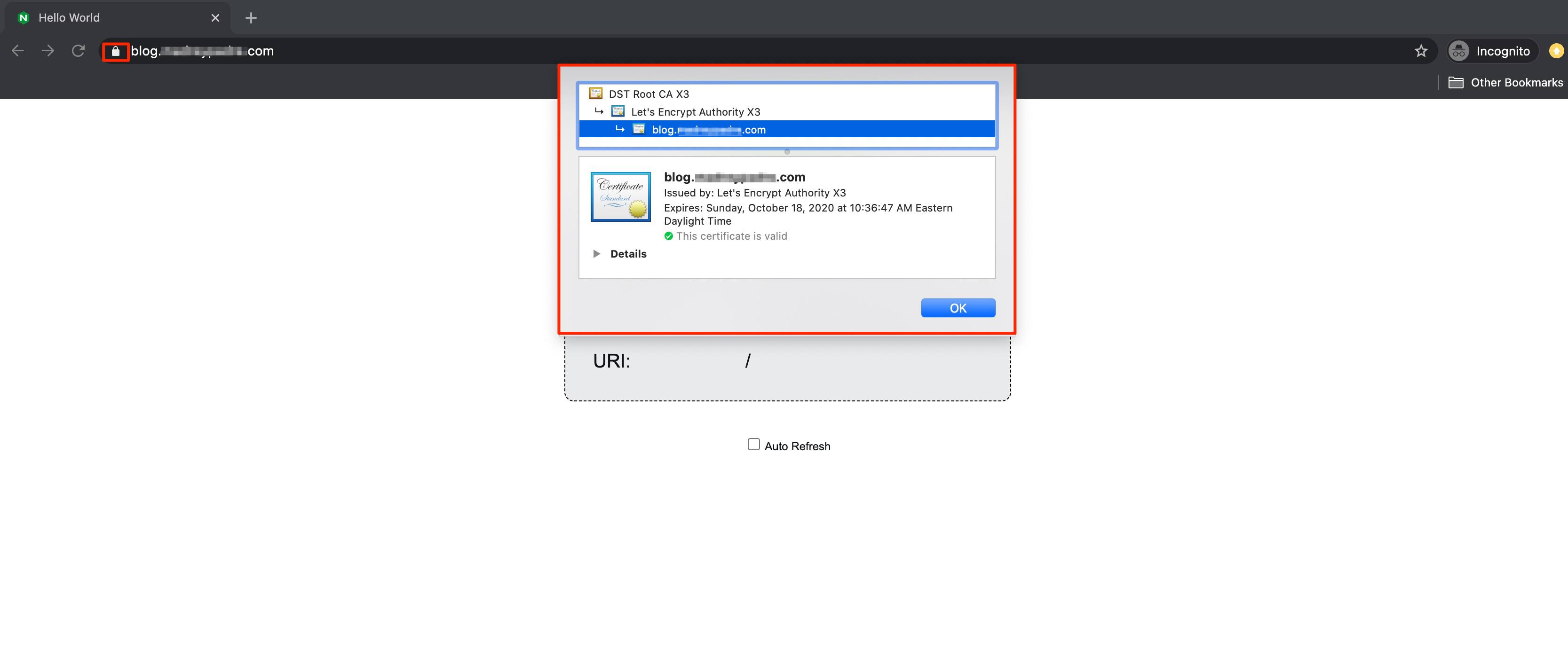

   Use your browser to view your TLS certificate. You should see that the certificate was issued by Let’s Encrypt Authority X3.

More Information

You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.

• NGINX Ingress Controller User Guide
