Getting Started with HAProxy TCP Load Balancing and Health Checks

HAProxy serves as a reverse proxy between frontend client requests and backend server resources, and can be configured at Layer 4 (network) or Layer 7 (application). A common use of HAProxy is as an intelligent network load balancer. In this role, HAProxy routes incoming frontend traffic to designated backend instances. By default, no load balancing is applied, however, HAProxy can be configured to use various load balancing methods, including:

• Round Robin: Distributes incoming connections evenly across all available backend servers by sequentially assigning each new connection to the next server in the pool.
• Least Connections: Directs incoming connections to the backend server with the fewest active connections, helping to balance the load more evenly based on current server utilization.
• Health Checks: Continuously monitors the health of backend servers. Servers that fail health checks are automatically removed from the pool until they recover, ensuring that only healthy servers receive traffic.

This guide demonstrates how to install HAProxy onto three Linux distributions: Ubuntu, CentOS Stream, and openSUSE Leap. It also uses an example WordPress deployment with sample configurations to implement and test HAProxy’s TCP load balancing and health check features.

Before You Begin

1. To be used as your HAProxy instance, deploy a Compute Instance running one of the Ubuntu 24.04 LTS, CentOS Stream 9, or openSUSE Leap 15.6 distributions, and assign the instance to a VLAN. See our Getting Started with Linode and Creating a Compute Instance guides.

   HAProxy can be deployed using a Nanode plan for testing purposes. See HAProxy’s hardware recommendations for production-level workloads.

2. Follow our Setting Up and Securing a Compute Instance guide to update your system. You may also wish to set the timezone, configure your hostname, create a limited user account, and harden SSH access.

3. This guide uses WordPress backend instances to demonstrate how HAProxy controls network traffic flows at both the TCP/Network (Layer 4) and HTTP/Application (Layer 7) levels. Follow the steps in our Deploy WordPress through the Linode Marketplace guide to create three backend WordPress test instances. Fill out all required fields under WordPress Setup, and use default values along with the following options:

   • The stack you are looking to deploy Wordpress on: Choose either LAMP or LEMP.
   • Website title: For each instance, enter backend1, backend2, and backend3, respectively.
   • Region: Select the same location the HAProxy instance is in.
   • Linode Plan: A Shared CPU, Nanode 1 GB is sufficient to test and demonstrate HAProxy options.
   • Linode Label: Label each instance to correspond with the website titles backend1, backend2, and backend3, respectively.
   • VLAN: Attach the instances to the same VLAN as the HAProxy instance.

   Each server is generated with an index.html home page that indicates the given title of the website hosted on the instance (backend1, backend2, or backend3). Open a web browser and navigate to each server’s IP address to verify that the example test servers are functioning. Take note of the IP addresses of each backend instance, as they are used later.

Install HAProxy

To install HAProxy, log into the HAProxy instance as your limited sudo user, and complete the steps below.

1. Select your distribution, and use the command to install HAProxy:

   Use apt to install HAProxy on an Ubuntu 24.04 LTS instance:

   sudo apt install haproxy

   Use dnf to install HAProxy on a CentOS Stream 9 instance:

   sudo dnf install haproxy

   Use zypper to install HAProxy on a openSUSE Leap 15.6 instance:

   sudo zypper in haproxy

2. Verify the HAProxy installation by checking the installed version number:

   sudo haproxy -v

   HAProxy version 2.8.5-1ubuntu3 2024/04/01 - https://haproxy.org/
   Status: long-term supported branch - will stop receiving fixes around Q2 2028.
   Known bugs: http://www.haproxy.org/bugs/bugs-2.8.5.html
   Running on: Linux 6.8.0-44-generic #44-Ubuntu SMP PREEMPT_DYNAMIC Tue Aug 13 13:35:26 UTC 2024 x86_64

   HAProxy version 2.4.22-f8e3218 2023/02/14 - https://haproxy.org/
   Status: long-term supported branch - will stop receiving fixes around Q2 2026.
   Known bugs: http://www.haproxy.org/bugs/bugs-2.4.22.html
   Running on: Linux 5.14.0-496.el9.x86_64 #1 SMP PREEMPT_DYNAMIC Mon Aug 12 20:37:54 UTC 2024 x86_64

   HAProxy version 2.8.6 2024/02/15 - https://haproxy.org/
   Status: long-term supported branch - will stop receiving fixes around Q2 2028.
   Known bugs: http://www.haproxy.org/bugs/bugs-2.8.6.html
   Running on: Linux 6.4.0-150600.23.17-default #1 SMP PREEMPT_DYNAMIC Tue Jul 30 06:37:32 UTC 2024 (9c450d7) x86_64

3. Use systemctl to start HAProxy:

   sudo systemctl start haproxy

4. Use systemctl to configure HAProxy to automatically start after a reboot:

   sudo systemctl enable haproxy

5. Verify HAProxy is active (running):

   systemctl status haproxy

   ● haproxy.service - HAProxy Load Balancer
        Loaded: loaded (/usr/lib/systemd/system/haproxy.service; enabled; preset: enabled)
        Active: active (running) since Tue 2024-09-17 20:37:22 UTC; 1 day 1h ago
          Docs: man:haproxy(1)
                file:/usr/share/doc/haproxy/configuration.txt.gz
       Process: 46011 ExecReload=/usr/sbin/haproxy -Ws -f $CONFIG -c -q $EXTRAOPTS (code=exited, status=0/SUCCESS)
       Process: 46014 ExecReload=/bin/kill -USR2 $MAINPID (code=exited, status=0/SUCCESS)
      Main PID: 35012 (haproxy)
        Status: "Ready."
         Tasks: 2 (limit: 1068)
        Memory: 40.6M (peak: 75.5M swap: 224.0K swap peak: 23.9M)
           CPU: 37.675s
        CGroup: /system.slice/haproxy.service
                ├─35012 /usr/sbin/haproxy -Ws -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid -S /run/haproxy-master.sock
                └─46018 /usr/sbin/haproxy -sf 45988 -x sockpair@5 -Ws -f /etc/haproxy/haproxy.cfg -p /run/haproxy.pid -S /run/haproxy-master.sock

The HAProxy Configuration File

HAProxy is controlled through its configuration file and the CLI. The default HAProxy configuration file is created at /etc/haproxy/haproxy.cfg during installation, and contains the settings needed to perform network balancing and flow control. It can be edited with any command line-based text editor.

To edit and use the TCP load balancing and health check functions in this guide, open the HAProxy configuration file with the text editor of your choice:

sudo nano /etc/haproxy/haproxy.cfg

TCP Load Balancing

Load balancing is defined in two sections of the HAProxy configuration file: frontend and backend. Below are example frontend and backend configurations for TCP load balancing:

Frontend Configuration

File: /etc/haproxy/haproxy.cfg

1 2 3 4

frontend web-test bind *:80 mode tcp default_backend web-test

• frontend declares that this section is for a frontend configuration called web-test.
• bind specifies the interface and port that HAProxy listens to for incoming connections. Here, *:80 means that HAProxy listens on all available IP addresses (*) on port 80, which is the standard port for web traffic.
• mode is set to TCP, so that HAPRoxy handles traffic at the transport layer.
• default_backend directs this traffic to a backend named web-test, as defined in the next section.

Backend Configuration

File: /etc/haproxy/haproxy.cfg

1 2 3 4 5 6

backend web-test mode tcp balance roundrobin server server1 backend1_VLAN_IP_ADDRESS:80 server server2 backend2_VLAN_IP_ADDRESS:80 server server3 backend3_VLAN_IP_ADDRESS:80

• backend declares that this section is for a backend configuration called web-test.
• mode is again set to TCP, telling HAPRoxy to handle traffic at the transport layer.
• balance is set to the Round Robin method, which connects each client reaching the HAProxy server’s IP address to the next server in the list.
• server statements define the backend servers using the VLAN addresses specified during the initial HAProxy setup.

TCP Health Checks

HAProxy’s load balancing function can also select servers based on their health status. Health checks can be either active or passive. An active health check probes each backend server individually for specific health attributes, whereas a passive check relies on basic connection error information by protocol (Layer 4/TCP or Layer7/HTTP).

To enable a basic server health check, include the check keyword in the server entry of your HAProxy configuration file:

File: /etc/haproxy/haproxy.cfg

1	server server1 backend1_VLAN_IP_ADDRESS:80 check

When the check keyword is included, HAProxy sends a SYN/ACK request to determine if a server is active. In some cases, servers may correctly respond to this type of query, while individual services and applications may still be down or unavailable.

Active TCP Health Checks

Active health checks provide more sophisticated monitoring by sending application-specific queries to backend servers and expecting a valid response in return.

To have HAProxy check server health at specified intervals, include the inter keyword along with an interval value. For example:

File: /etc/haproxy/haproxy.cfg

1	server server1 backend1_VLAN_IP_ADDRESS:80 check inter 4

In this example, HAProxy checks the first server in the pool every four seconds. If the server does not respond as expected, it is marked as down. This process functions like a ping-style health check to verify server availability.

Passive TCP Health Checks

HAProxy uses the TCP protocol to perform passive health checks on backend servers. With passive health checks, HAProxy monitors Layer 4 (TCP) traffic for errors and marks a server as down when a specified error limit is reached.

Below is an example of the syntax used for a passive health check:

File: /etc/haproxy/haproxy.cfg

1	server backend1 backend1_VLAN_IP_ADDRESS:80 check observe layer4 error-limit 10 on-error mark-down

This configuration specifies a passive health check that observes TCP errors (observe layer4). If the number of errors reaches the specified limit of 10 (error-limit 10), the server is marked as down (on-error mark-down). To optimize performance and reliability, you can adjust the intervals and error limits for different servers based on their capacity, role, or complexity. For more information, refer to the HAProxy documentation on active health checks.

Configure TCP Load Balancing with Health Checks

Set the HAProxy configuration file to perform TCP load balancing with basic passive health checks.

1. Open the HAProxy configuration file with the text editor of your choice:

   sudo nano /etc/haproxy/haproxy.cfg

2. Append the following code to the end of the file, and save your changes:

   File: /etc/haproxy/haproxy.cfg

   1 2 3 4 5 6 7 8 9 10 11

   frontend web-test bind *:80 mode tcp default_backend web-test backend web-test mode tcp balance roundrobin server server1 backend1_VLAN_IP_ADDRESS:80 check server server2 backend2_VLAN_IP_ADDRESS:80 check server server3 backend3_VLAN_IP_ADDRESS:80 check

3. Restart HAProxy to enable the changes made to the configuration file:

   sudo systemctl restart haproxy
   Check for syntax errors

   If you encounter any errors after reloading HAProxy, run the following command to check for syntax errors in your haproxy.cfg file:

   sudo haproxy -c -f /etc/haproxy/haproxy.cfg

   An error message is returned if the configuration file has logical or syntax errors. When the check is complete, each error is listed one per line.

   This command only verifies the syntax and basic logic of the configuration, and it does not guarantee that the configuration works as intended when running.

Test TCP Load Balancing

Load balancing can be verified by visiting the HAProxy instances’s public IP address.

sudo firewall-cmd --add-port=80/tcp

sudo firewall-cmd --permanent --add-port=80/tcp
sudo firewall-cmd --reload

1. Open a web browser and navigate to the HAPRoxy instance’s public IP address:

   http://HAProxy_PUBIC_IP_ADDRESS

   The WordPress web page for backend1 should appear:

   Certificate warnings

   If your browser warns of no HTTPS/TLS certificate, ignore the warning or use the advanced settings to reach the site.

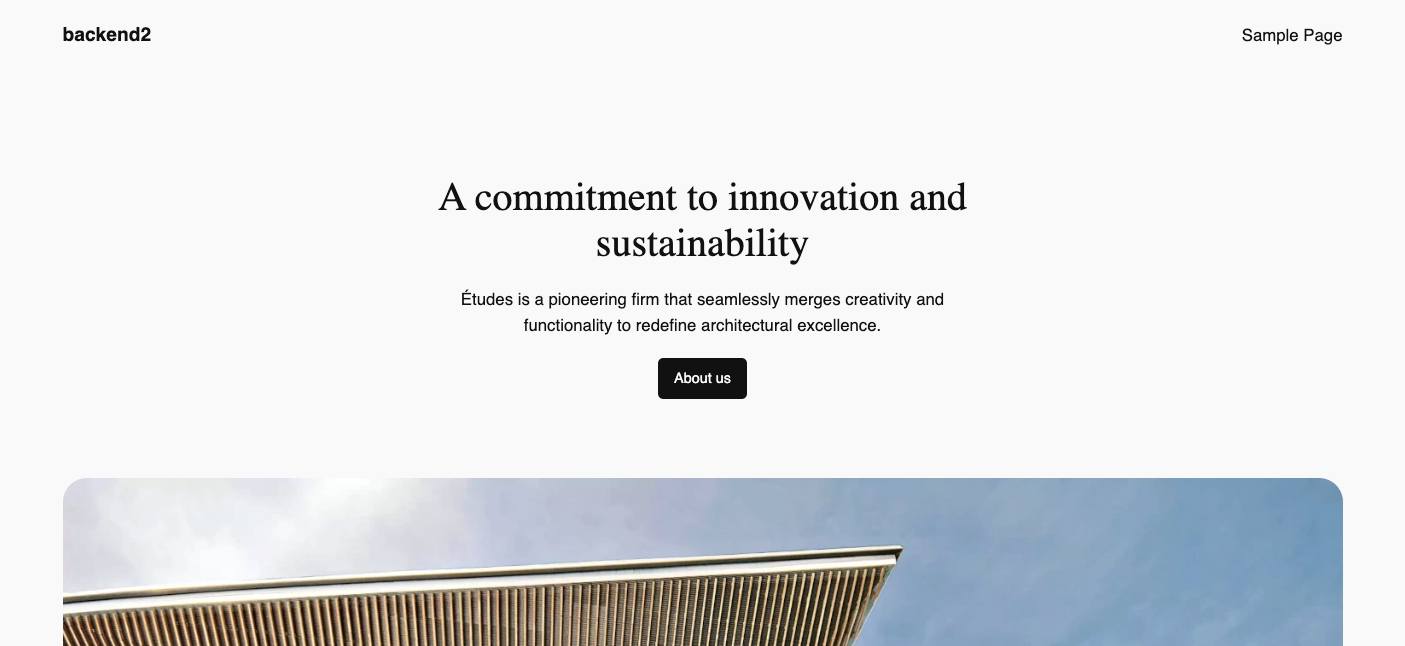

2. Open another browser tab and enter the same HAProxy server IP address. This time, the default page for backend2 should be displayed:

3. Repeat this process in a third browser tab, and the backend3 server’s web page should appear:

The HAProxy gateway is now successfully balancing traffic between the three backend instances using the Round Robin method.

Verify TCP Health Checks

Health checks can be verified by removing one of the backend instances from the server pool. This should trigger a health check failure, causing HAProxy to exclude the unresponsive server from the backend pool.

1. Open the Cloud Manager and choose Linodes

2. Click on the ellipsis (…) to the right of your first backend instance, backend1.

3. Choose Power Off, then click Power Off Linode.

4. Reload the web browser tabs. HAProxy should no longer route traffic to backend1, effectively removing it from the pool.

5. Return to the HAProxy instance and check the logs:

   sudo tail -f /var/log/haproxy.log

   Your output should contain a “WARNING” line regarding the “DOWN” status of server1:

   [WARNING]  (4494) : Server web-test/server1 is DOWN, reason: Layer4 connection problem, info: "No route to host", check duration: 1ms. 2 active and 0 backup servers left. 0 sessions active, 0 requeued, 0 remaining in queue.

This shows that HAProxy’s TCP health checks are working as intended.
