Deploying RabbitMQ on Kubernetes with LKE

This guide provides step-by-step instructions for deploying RabbitMQ on Linode Kubernetes Engine (LKE) using the RabbitMQ Kubernetes Operator. This is part of a set of tools that RabbitMQ provides to streamline its management on Kubernetes:

• Cluster Kubernetes Operator: Automates the provisioning, management, and operation of RabbitMQ clusters on Kubernetes.
• Messaging Topology Operator: Manages messaging topologies within a RabbitMQ cluster deployed using the Cluster Kubernetes Operator.

These operators extend Kubernetes management capabilities and leverage the Kubernetes API to provide native integration. This guide focuses specifically on the RabbitMQ Cluster Kubernetes Operator for deploying RabbitMQ, utilizing its built-in tooling for management and configuration. The Cluster Kubernetes Operator offers the following key features:

• Provisioning of single-node and multi-node RabbitMQ clusters
• Reconciliation to align the deployed clusters with its desired declarative state
• Monitoring of RabbitMQ clusters
• Scalability
• Automated upgrades

Before You Begin

1. Read the Getting Started with Linode guide and create a Linode account if you do not already have one.

2. Create a personal access token using the instructions in the Manage personal access tokens guide.

3. Follow the steps in the Install kubectl section of the Getting started with LKE guide to install kubectl.

4. Install the Linode CLI using the instructions in the Install and configure the CLI guide.

5. Install jq, a lightweight command line JSON processor.

Provision a Kubernetes Cluster

While there are several ways to create a Kubernetes cluster on Linode, this guide uses the Linode CLI to provision resources.

1. Use the Linode CLI to see available Kubernetes versions:

   linode lke versions-list

   ┌──────┐
   │ id   │
   ├──────┤
   │ 1.31 │
   ├──────┤
   │ 1.30 │
   └──────┘

   It is generally recommended to provision the latest version of Kubernetes unless specific requirements dictate otherwise.

2. Use the following command to list available Linode plans, including plan ID, pricing, and performance details:

   linode linodes types

   For more detailed pricing information, see the Akamai Connected Cloud: Pricing page.

3. The examples in this guide use the g6-standard-2 Linode, which features two CPU cores and 4GB of memory. Run the following command to display detailed information for this Linode plan in JSON format:

   linode linodes types --label "Linode 4GB" --json --pretty

   [
     {
       "addons": {...},
       "class": "standard",
       "disk": 81920,
       "gpus": 0,
       "id": "g6-standard-2",
       "label": "Linode 4GB",
       "memory": 4096,
       "network_out": 4000,
       "price": {
         "hourly": 0.036,
         "monthly": 24.0
       },
       "region_prices": [...],
       "successor": null,
       "transfer": 4000,
       "vcpus": 2
     }
   ]

4. Use the following command to view available regions:

   linode regions list

   Choosing a location geographically closest to yours is recommended.

5. Use the following command to create a cluster with three nodes and auto-scaling. Replace CLUSTER_NAME with a name of your choosing, KUBERNETES_VERSION with your selected cluster version (e.g. 1.31), and REGION_LABEL with your desired region’s label (e.g. us-mia):

   linode lke cluster-create \
     --label CLUSTER_NAME \
     --k8s_version KUBERNETES_VERSION \
     --region REGION_LABEL \
     --node_pools '[{
       "type": "g6-standard-2",
       "count": 3,
       "autoscaler": {
         "enabled": true,
         "min": 3,
         "max": 8
     }
   }]'

   Once your cluster is successfully created, you should see output similar to the following:

   Using default values: {}; use the --no-defaults flag to disable defaults
   ┌────────┬──────────────────┬────────┬─────────────┬─────────────────────────────────┬──────┐
   │ id     │ label            │ region │ k8s_version │ control_plane.high_availability │ tier │
   ├────────┼──────────────────┼────────┼─────────────┼─────────────────────────────────┼──────┤
   │ 301629 │ rabbitmq-cluster │ us-mia │ 1.31        │ False                           │      │
   └────────┴──────────────────┴────────┴─────────────┴─────────────────────────────────┴──────┘

Access the Kubernetes Cluster

To access your cluster, fetch the cluster credentials in the form of a kubeconfig file:

1. Use the following command to retrieve the cluster’s ID and store it in variable named CLUSTER_ID:

   CLUSTER_ID=$(linode lke clusters-list --json | \
       jq -r \
         '.[] | select(.label == "rabbitmq-cluster") | .id')

2. Create a hidden .kube folder in your user’s home directory:

   mkdir ~/.kube

3. Retrieve the kubeconfig file and save it to ~/.kube/lke-config:

   linode lke kubeconfig-view --json "$CLUSTER_ID" | \
       jq -r '.[0].kubeconfig' | \
       base64 --decode > ~/.kube/lke-config

4. Once you have the kubeconfig file saved, access your cluster by using kubectl and specifying the file:

   kubectl get no --kubeconfig ~/.kube/lke-config

   NAME                            STATUS   ROLES    AGE     VERSION
   lke295620-486011-09172e6e0000   Ready    <none>   6d21h   v1.31.0
   lke295620-486011-389bbe940000   Ready    <none>   6d21h   v1.31.0
   lke295620-486011-4045e9410000   Ready    <none>   6d21h   v1.31.0

5. To avoid specifying --kubeconfig ~/.kube/lke-config with every kubectl command, you can set an environment variable for your current terminal window session:

   export KUBECONFIG=~/.kube/lke-config

   The config file is automatically used on subsequent kubectl commands in that terminal:

   kubectl get no

Set Up RabbitMQ on LKE

The following steps assume your LKE cluster is provisioned and your KUBECONFIG environment variable is set to ~/.kube/lke-config.

1. Install the Cluster Kubernetes Operator by applying the operator manifest:

   kubectl apply -f \
   https://github.com/rabbitmq/cluster-operator/releases/latest/download/cluster-operator.yml

   You should see output similar to the following, indicating that various resources have been created:

   namespace/rabbitmq-system created
   customresourcedefinition.apiextensions.k8s.io/rabbitmqclusters.rabbitmq.com created
   serviceaccount/rabbitmq-cluster-operator created
   role.rbac.authorization.k8s.io/rabbitmq-cluster-leader-election-role created
   clusterrole.rbac.authorization.k8s.io/rabbitmq-cluster-operator-role created
   clusterrole.rbac.authorization.k8s.io/rabbitmq-cluster-service-binding-role created
   rolebinding.rbac.authorization.k8s.io/rabbitmq-cluster-leader-election-rolebinding created
   clusterrolebinding.rbac.authorization.k8s.io/rabbitmq-cluster-operator-rolebinding created
   deployment.apps/rabbitmq-cluster-operator created

2. Verify that the operator was successfully installed by listing all resources in the rabbitmq-system namespace:

   kubectl get all -n rabbitmq-system

   You should see output similar to this:

   NAME                                             READY   STATUS    RESTARTS   AGE
   pod/rabbitmq-cluster-operator-7cb8bd8f85-lv8fg   1/1     Running   0          29s

   NAME                                        READY   UP-TO-DATE   AVAILABLE   AGE
   deployment.apps/rabbitmq-cluster-operator   1/1     1            1           30s

   NAME                                                   DESIRED   CURRENT   READY   AGE
   replicaset.apps/rabbitmq-cluster-operator-7cb8bd8f85   1         1         1       30s

3. To install RabbitMQ on your cluster, you need a configuration file specifying the declarative state of RabbitMQ cluster. Use a command line text editor, such as nano, to create a file named rabbitmq-basic.yaml in your user’s home directory:

   nano ~/rabbitmq-basic.yaml

   Populate the file with the following example configuration:

   File: rabbitmq-basic.yaml

   1 2 3 4 5 6 7

   apiVersion: rabbitmq.com/v1beta1 kind: RabbitmqCluster metadata: name: rabbitmq-basic spec: service: type: NodePort

   To save the file and exit nano, press CTRL+X, followed by Y then Enter.

   Note

   To set a custom administrative username and password during the creation of the RabbitMQ cluster, modify rabbitmq-basic.yaml to include the following additional configuration. Insert values for YOUR_USERNAME and YOUR_PASSWORD as desired:

   File: rabbitmq-basic.yaml

   1 2 3 4 5 6 7 8 9 10

   apiVersion: rabbitmq.com/v1beta1 kind: RabbitmqCluster metadata: name: rabbitmq-basic spec: service: type: NodePort additionalConfig: | default_user=YOUR_USERNAME default_pass=YOUR_PASSWORD

4. Apply the configuration to your LKE cluster:

   kubectl apply -f ./rabbitmq-basic.yaml

   rabbitmqcluster.rabbitmq.com/rabbitmq-basic created

5. Wait a few minutes for the configuration to be applied, then list all provisioned resources to confirm that RabbitMQ is installed:

   kubectl get all

   The HTTP interface for RabbitMQ is exposed on port 15672. By specifying the NodePort service in rabbitmq-basic.yaml, this port is mapped to the LKE cluster on port 31412 in the example output below. Similarly, the AQMP protocol, which operates on port 5672, is mapped to port 30528 on the LKE cluster:

   NAME                          READY   STATUS    RESTARTS   AGE
   pod/rabbitmq-basic-server-0   1/1     Running   0          93s

   NAME                           TYPE        CLUSTER-IP      EXTERNAL-IP   PORT(S)                                          AGE
   service/kubernetes             ClusterIP   10.128.0.1      <none>        443/TCP                                          6d22h
   service/rabbitmq-basic         NodePort    10.128.125.42   <none>        5672:30528/TCP,15672:31412/TCP,15692:32494/TCP   94s
   service/rabbitmq-basic-nodes   ClusterIP   None            <none>        4369/TCP,25672/TCP                               94s

   NAME                                     READY   AGE
   statefulset.apps/rabbitmq-basic-server   1/1     93s

   NAME                                          ALLREPLICASREADY   RECONCILESUCCESS   AGE
   rabbitmqcluster.rabbitmq.com/rabbitmq-basic   True               True               94s

6. The ports shown in the example output do not match your specific LKE setup. Take note of the port number mapped to 15672 as it is referred to by PORT in later steps.

7. View the logs from the RabbitMQ pod listed in the output above:

   kubectl logs rabbitmq-basic-server-0

   Look for the Time to start RabbitMQ line in the log output, which indicates a successful startup of the application:

   Defaulted container "rabbitmq" out of: rabbitmq, setup-container (init)
   ...
     ##  ##      RabbitMQ 4.0.5
     ##  ##
     ##########  Copyright (c) 2007-2024 Broadcom Inc and/or its subsidiaries
     ######  ##
     ##########  Licensed under the MPL 2.0. Website: https://rabbitmq.com
   ...
     Starting broker...2024-12-29 18:31:42.237065+00:00 [info] <0.216.0>
   ...
   2024-12-29 18:31:43.519971+00:00 [info] <0.591.0> Ready to start client connection listeners
   2024-12-29 18:31:43.521861+00:00 [info] <0.739.0> started TCP listener on [::]:5672
    completed with 6 plugins.
   ...
   2024-12-29 18:31:43.740056+00:00 [info] <0.10.0> Time to start RabbitMQ: 3598 ms

Access RabbitMQ Remotely

To access the RabbitMQ management console, first retrieve the auto-generated credentials for the default administrative user. If you chose to set default_user and default_pass values in your rabbitmq-basic.yaml in the previous section, you can use those values instead of following these steps:

1. Retrieve the username using the following command:

   kubectl get secret rabbitmq-basic-default-user \
     -o jsonpath='{.data.username}' \
     | base64 --decode

   Your default administrative username typically start with default_user_. For example:

   default_user_DoiEmUZy-rMJfFEa3gM

2. Retrieve the password using the following command:

   kubectl get secret rabbitmq-basic-default-user \
     -o jsonpath='{.data.password}' \
     | base64 --decode

   The password is randomly generated, for example:

   3fNpEwB2R2s3oBibIZ9UDjeqCVgFcBq1

Locate the External IP Address of the LKE Cluster

To access the RabbitMQ server and its management interface remotely, follow these steps to locate the cluster’s external IP address and verify its availability.

1. Retrieve the external IP addresses of your LKE cluster nodes using the following command:

   kubectl get nodes \
     -o wide \
     | awk -v OFS='\t\t' '{print $1, $6, $7}'

   This command displays the node names, internal IPs, and external IPs. For example:

   NAME		INTERNAL-IP		EXTERNAL-IP
   lke295620-486011-09172e6e0000		192.168.149.243		172.233.162.14
   lke295620-486011-389bbe940000		192.168.149.206		172.233.175.169
   lke295620-486011-4045e9410000		192.168.149.217		172.235.133.50

   In this example output, one of the nodes has an external IP address of 172.233.162.14. Recall from the earlier kubectl get all command that port 31412 maps to the HTTP interface of the RabbitMQ server. Combine the external IP address of a node with this port to locate the RabbitMQ management service (e.g. http://172.233.162.14:31412).

   Record one of the external IP addresses shown in your output. It is referred to later by IP_ADDRESS in subsequent steps.

2. Verify RabbitMQ’s availability by retrieving its current configuration as a JSON object. Replace USERNAME, PASSWORD, IP_ADDRESS, and PORT with the administrative credentials and the node’s external IP address and port:

   curl --user 'USERNAME:PASSWORD' http://IP_ADDRESS:PORT/api/overview | jq

   This command retrieves an overview of the RabbitMQ server, for example:

   {
     "management_version": "4.0.5",
     "rates_mode": "basic",
   ...
     "product_version": "4.0.5",
     "product_name": "RabbitMQ",
     "rabbitmq_version": "4.0.5",
     "cluster_name": "rabbitmq-basic",
   ...
     "erlang_version": "27.2",
   ...
   }

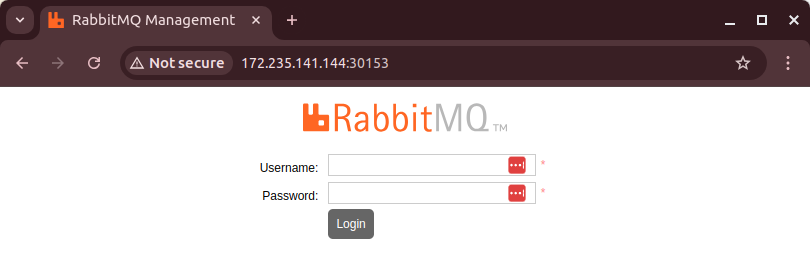

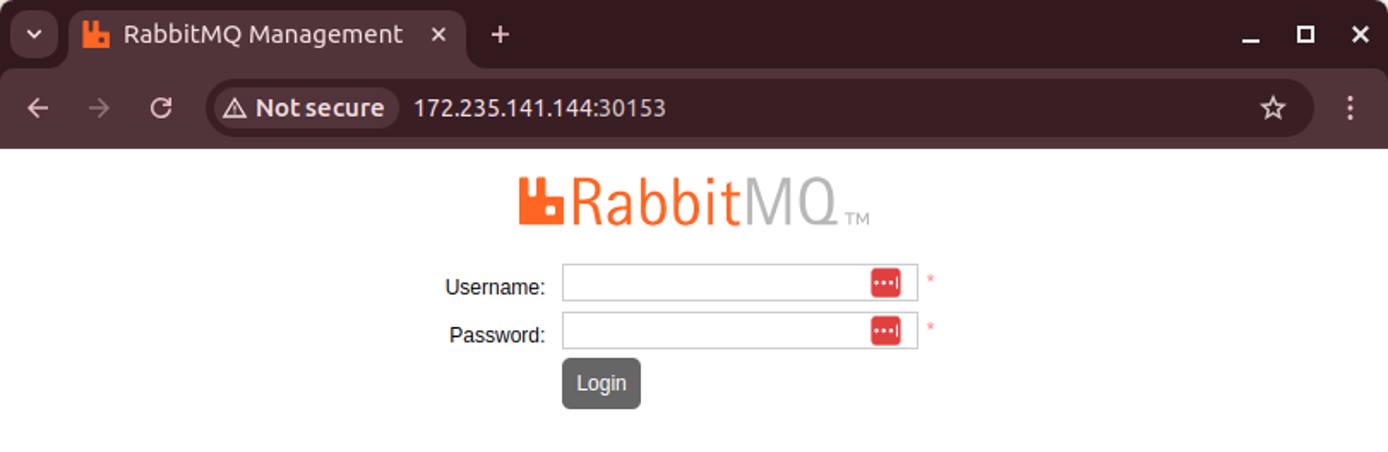

3. To access the RabbitMQ web GUI, open a web browser and navigate to the following URL, replacing IP_ADDRESS and PORT with your actual external IP address and port number (e.g. http://172.233.162.14:31412/#/):

   http://IP_ADDRESS:PORT/#/

4. At the initial login prompt, enter the default administrative username and password:

Test RabbitMQ with a Messaging Example

To test the RabbitMQ deployment, download the RabbitMQ management script, create an exchange and queue, and publish and retrieve messages.

Download and Set Up the Management Script

1. Download the management script using the wget command. Replace IP_ADDRESS and PORT with your actual external IP address and port number:

   wget http://IP_ADDRESS:PORT/cli/rabbitmqadmin

2. Make the script executable and move it to a directory included in your PATH (e.g /usr/local/bin):

   chmod +x rabbitmqadmin
   sudo mv rabbitmqadmin /usr/local/bin/

Create Exchange and Queue

1. For convenience, set your RabbitMQ credentials and host information as environment variables. Replace USERNAME, PASSWORD, IP_ADDRESS, and PORT with your actual values:

   export USERNAME=USERNAME
   export PASSWORD=PASSWORD
   export HOST=IP_ADDRESS
   export PORT=PORT

2. Create a fanout style exchange on the RabbitMQ server:

   rabbitmqadmin \
     --username=$USERNAME --password=$PASSWORD \
     --host=$HOST --port=$PORT \
     declare exchange \
     name=test_fanout_exchange \
     type=fanout

   exchange declared

3. Create a queue for the exchange to hold messages:

   rabbitmqadmin \
     --username=$USERNAME --password=$PASSWORD \
     --host=$HOST --port=$PORT \
     declare queue \
     name=fanout_queue \
     durable=true

   queue declared

4. Bind the queue to the exchange:

   rabbitmqadmin \
     --username=$USERNAME --password=$PASSWORD \
     --host=$HOST --port=$PORT \
     declare binding \
     source=test_fanout_exchange \
     destination=fanout_queue

   binding declared

Test Message Publishing and Retrieval

1. Publish a message to the exchange (and its bound queue):

   rabbitmqadmin \
     --username=$USERNAME --password=$PASSWORD \
     --host=$HOST --port=$PORT \
     publish \
     exchange=test_fanout_exchange \
     routing_key=dummy_key \
     payload="Hello, world!"

   Upon success, the following message is displayed:

   Message published

   Note

   While a routing key is not necessary for a fanout exchange, it is required for the rabbitmqadmin tool.

2. Retrieve the messages from the queue:

   rabbitmqadmin \
     --username=$USERNAME --password=$PASSWORD \
     --host=$HOST --port=$PORT \
     get \
     queue=fanout_queue

   The message should be displayed along with other details:

   +-------------+----------------------+---------------+---------------+---------------+------------------+------------+-------------+
   | routing_key |       exchange       | message_count |    payload    | payload_bytes | payload_encoding | properties | redelivered |
   +-------------+----------------------+---------------+---------------+---------------+------------------+------------+-------------+
   | dummy_key   | test_fanout_exchange | 0             | Hello, world! | 13            | string           |            | False       |
   +-------------+----------------------+---------------+---------------+---------------+------------------+------------+-------------+
   ```å

Create New Users

When connecting applications to your RabbitMQ deployment, it’s recommended to create and use RabbitMQ users other than the default administrative user.

1. In the RabbitMQ web interface, click the Admin tab. This shows the list of users, which currently only includes the default administrative user:

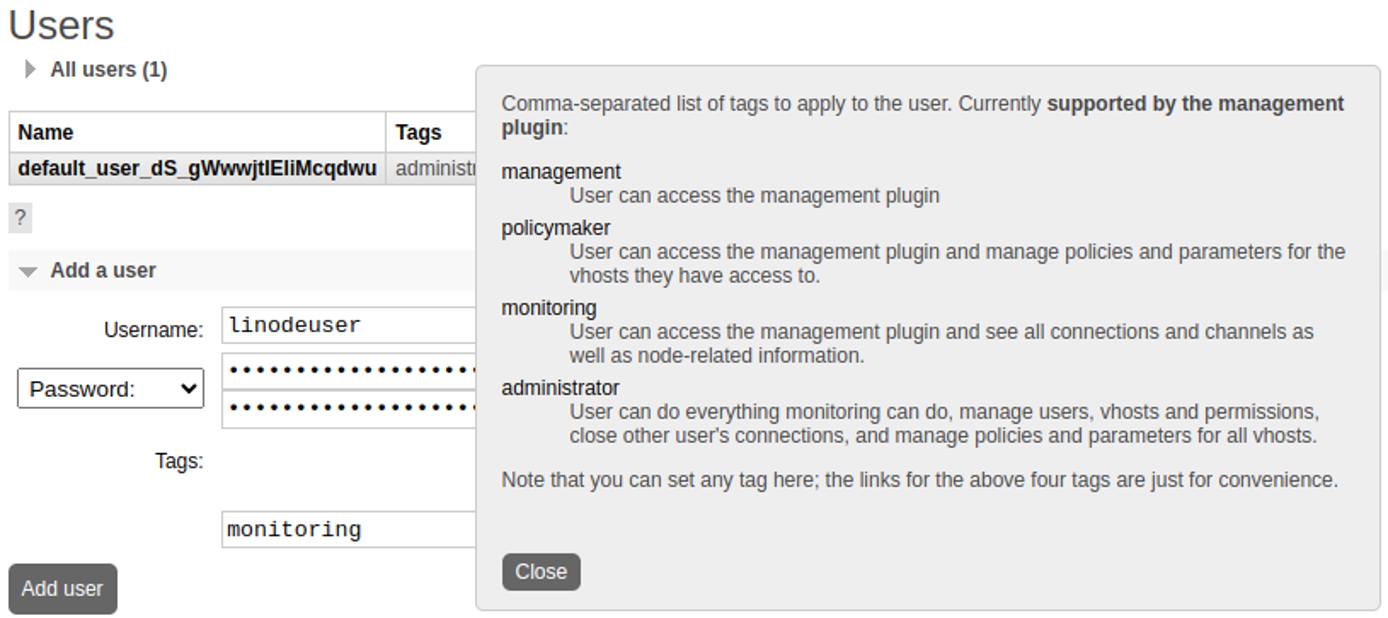

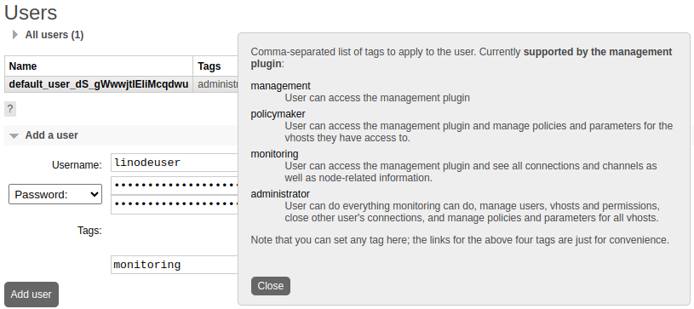

2. Click Add a user, then provide a username, password, and tag(s) to specify the user’s permission level (e.g. monitoring).

3. Click Add user. While the new user is added to the list of users, it does not yet have access to any virtual hosts:



Set Permissions for the User on the Virtual Host

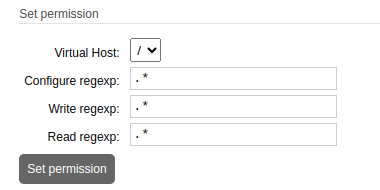

1. Click the name of the newly created user. Click Set permission to allow full permissions on the default virtual host (/).



2. Verify the newly created user’s RabbitMQ management access by logging out and logging in as the new user:



Send Test Requests to the RabbitMQ API

The following requests assume that your terminal session still uses the previously set environment variables for HOST and PORT:

1. Test publishing a message to the exchange using curl to send an authenticated request to the RabbitMQ API. Replace NEW_USERNAME and NEW_PASSWORD with the credentials for your newly created user:

   curl \
     -u 'NEW_USERNAME:NEW_PASSWORD' \
     -H "Content-Type: application/json" \
     -X POST \
     -d '{"properties":{},"routing_key":"dummy_key","payload":"Hello, curl!","payload_encoding":"string"}' \
     http://$HOST:$PORT/api/exchanges/%2f/test_fanout_exchange/publish
   Note

   The %2f in the request URL is the URL-encoded value for /, the name of the default virtual host.

   Upon success, you should see the following output:

   {"routed":true}

2. Retrieve the last two messages from the queue by sending an authenticated request:

   curl \
     -u 'NEW_USERNAME:NEW_PASSWORD' \
     -H "Content-type:application/json" \
     -X POST \
     -d '{"count":2,"ackmode":"ack_requeue_true","encoding":"auto"}' \
     http://$HOST:$PORT/api/queues/%2f/fanout_queue/get | json_pp

   This command returns the following output, showing the messages retrieved from the queue:

   [
      {
         "exchange" : "test_fanout_exchange",
         "message_count" : 1,
         "payload" : "Hello, world!",
         "payload_bytes" : 13,
         "payload_encoding" : "string",
         "properties" : [],
         "redelivered" : true,
         "routing_key" : "dummy_key"
      },
      {
         "exchange" : "test_fanout_exchange",
         "message_count" : 0,
         "payload" : "Hello, curl!",
         "payload_bytes" : 12,
         "payload_encoding" : "string",
         "properties" : [],
         "redelivered" : true,
         "routing_key" : "dummy_key"
      }
   ]

More Information

You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.

• Production RabbitMQ Operator Configuration
• RabbitMQ Message Topology Operator
• Configuration Documentation
• Deployment Checklist
• Plugins
• Management CLI
• RabbitMQ Linode Marketplace App
