How to Build a Node and React Video Streaming App
Traducciones al EspañolEstamos traduciendo nuestros guías y tutoriales al Español. Es posible que usted esté viendo una traducción generada automáticamente. Estamos trabajando con traductores profesionales para verificar las traducciones de nuestro sitio web. Este proyecto es un trabajo en curso.
Introduction
Building a live video streaming application might seem daunting at first, but this guide will breakdown how this can be achieved. Specifically, we’ll demonstrate how to implement a streaming service with the following components:
- A server-side Node.js application that handles fetching and streaming videos, generating thumbnails for your videos, and serving captions and subtitles for videos.
- A client application for the devices in React that consumes the videos on our server. This application will have two views: a listing of videos that are available, and a player view for each video.

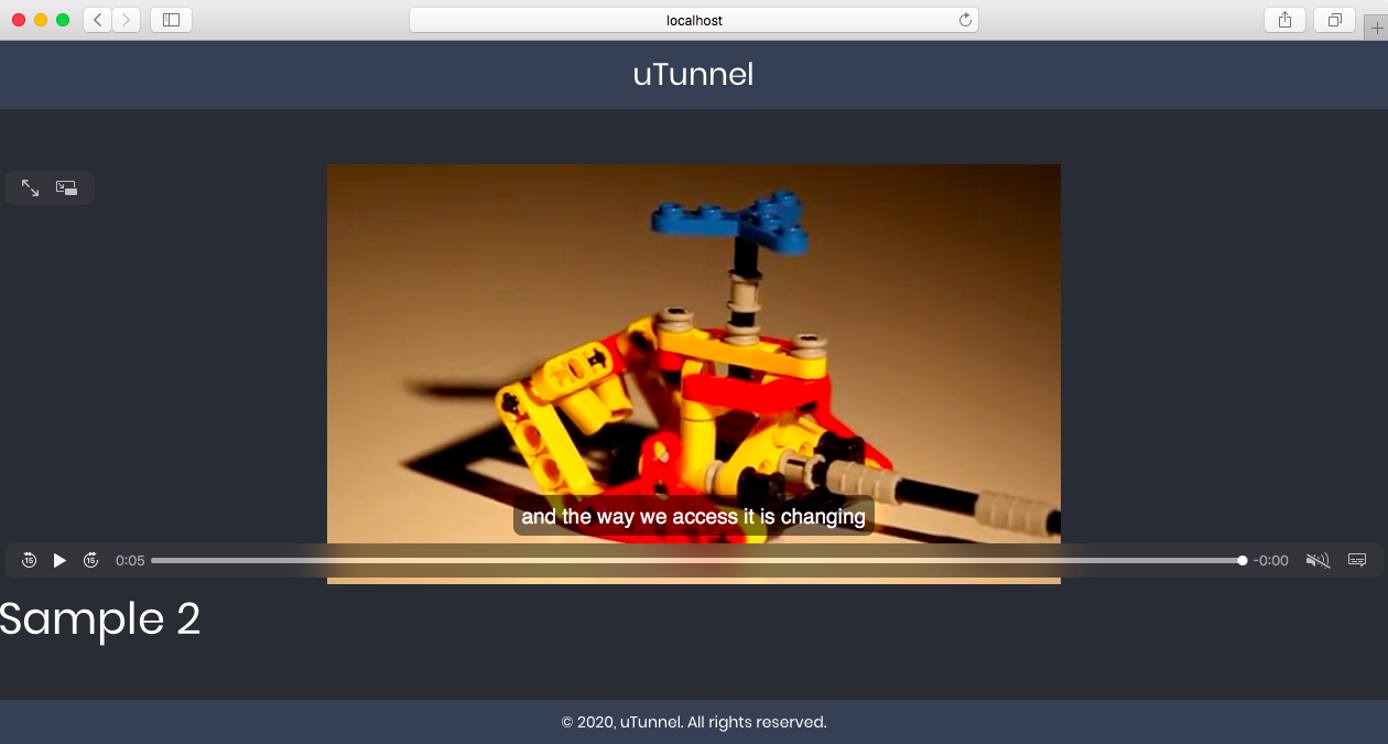

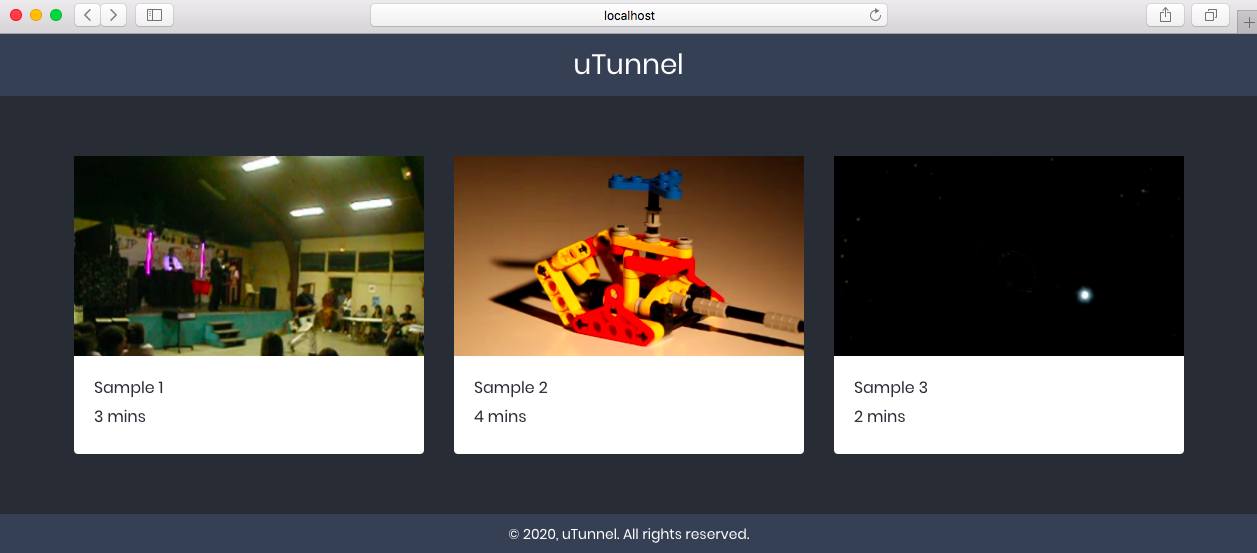

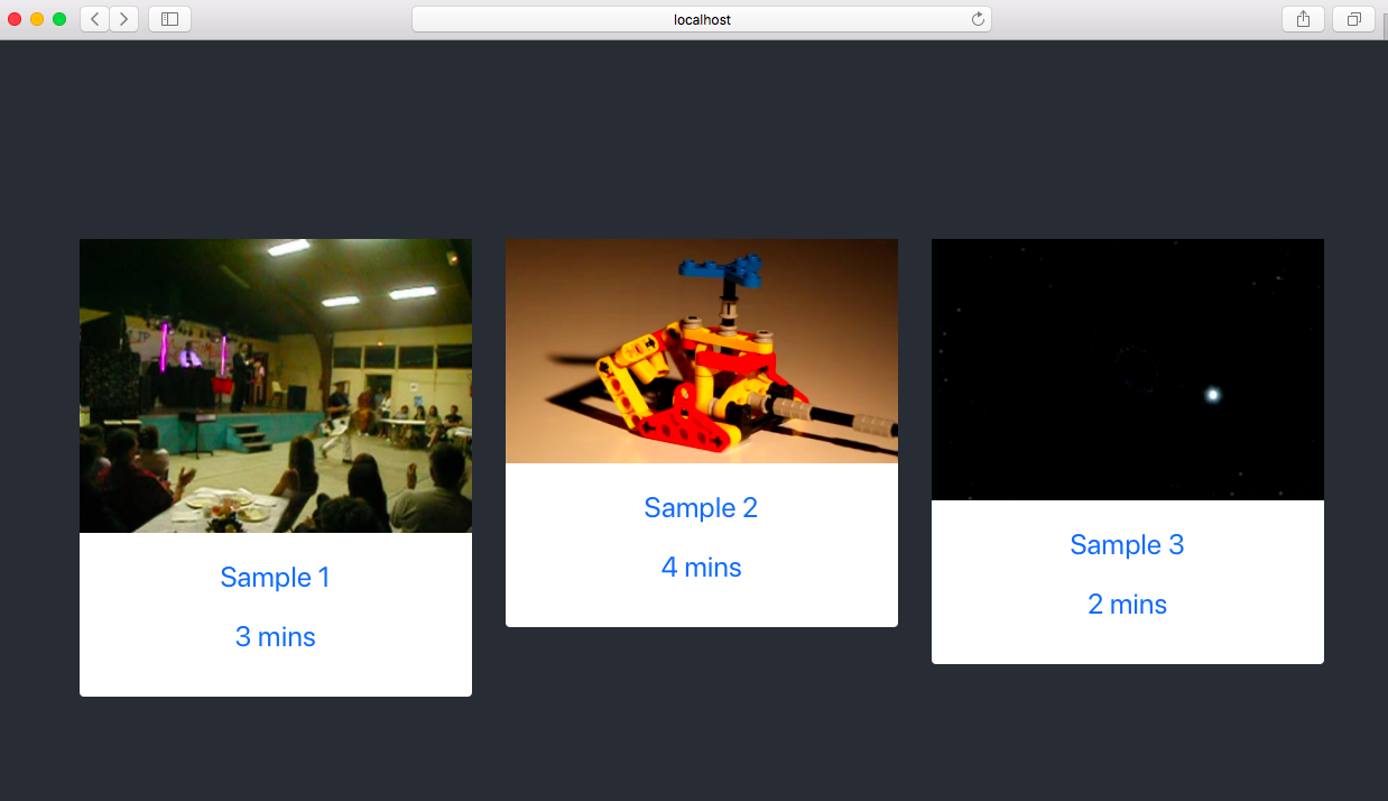

When completed, your application looks as follows:
About Video Streams
Videos work with streams. This means that instead of sending the whole video at once, a video is sent as a set of smaller chunks which make up the full video. This explains why if you are on a slow broadband and watching a video, it buffers because it plays the latest chunk it has received and tries to load more.
Before You Begin
For this tutorial, you’ll need:
- A basic understanding of HTML, CSS, JavaScript, Node/Express, and React
- A text editor (e.g. VS Code or Atom)
- A web browser (e.g. Chrome, Firefox)
- FFmpeg installed on your workstation
- Node.js. Node Version Manager (nvm) can be used to install and maintain several versions of Node on your computer.
Application Setup
For the purposes of this tutorial, both the server application and the client application will be built on your workstation. To get started, create a new directory that will contain both components of your application. You can do this from the terminal or a GUI interface:
mkdir react-node-video-streaming
Setting Up the Server
We’ll build the server with Node.js. Inside our project directory, create a folder called
server
:cd react-node-video-streaming mkdir server
Next, let’s setup the server:
cd server npm init
Follow the prompts from
npm init
and use the default values it suggests. When the command finishes, it creates apackage.json
file in the directory.Install the packages the server will need:
npm install --save nodemon express cors
nodemon
automatically restarts our server when we make changes.express
gives us a nice interface to handle routes.cors
will allow us to make cross-origin requests since our client and server will be running on different ports.
Inside the
server
project, create a folder calledassets
. This will hold the video files for the server application:mkdir assets
Copy a
.mp4
video file into the newassets
folder, and make sure it is namedsample.mp4
. For example, you can download one of the videos from the guide’s project source repository and rename it tosample.mp4
.We can start writing code for React video streaming server. Create a new file in the root of the
server
directory calledapp.js
and add the following snippet:- File: server/app.js
1 2 3 4 5
const express = require('express'); const fs = require('fs'); const path = require('path'); const app = express();
This just imports the packages we’ll be using. The
fs
module makes it easy to read and write to files on the server.For now, we’ll create a single
/video
route. When requested, it will send a video file back to the client. Add this line after theconst app
declaration inserver/app.js
:- File: server/app.js
1 2 3 4 5
// add after 'const app = express();' app.get('/video', (req, res) => { res.sendFile('assets/sample.mp4', { root: __dirname }); });
This routes simply serves the
sample.mp4
video file when requested.Add this call to
app.listen()
to the end ofserver/app.js
:- File: server/app.js
1 2 3 4 5
// add to end of file app.listen(4000, () => { console.log('Listening on port 4000!') });
This code sets up the server to listen on port 4000.
At the moment, the server is not running. In
package.json
, add the followingdev
script to thescripts
section:- File: server/package.json
1 2 3 4 5 6
//... "scripts": { "dev": "nodemon app.js", // ... }, // ...
Then from your terminal, run:
npm run dev
If you see the message
Listening on port 4000!
in the terminal, then the server is working correctly. Navigate to http://localhost:4000/video in your browser in your local system and you should see the video playing.
Scaffolding the Frontend with React
Open a second terminal and create a new
client
directory in your projects folder:cd react-node-video-streaming mkdir client && cd client
Initialize a React project here like so:
npx create-react-app .
This command generates our application shell and installs the packages required by React. The
.
argument means all this setup happens in the current directory (client
).Note If you don’t have
npx
on your workstation, it can be installed globally with:npm install -g npx
Once it is done, open
src/App.js
in yourclient
project and replace the contents with:- File: client/src/App.js
1 2 3 4 5 6 7 8 9 10 11 12 13 14
import React from 'react'; import './App.css'; function App() { return ( <div className="App"> <header className="App-header"> <video controls muted> <source src="http://localhost:4000/video" type="video/mp4"></source> </video> </header> </div> ); } export default App;
In this markup, we have a single
video
element, and thesrc
is the route on our server that serves the sample video file.Save it, and in your terminal run:
yarn start
Or if you prefer to use
npm
, run:npm start
This command starts a web server and opens the React application in your browser. You should see the video in your React application.
Building Out the Frontend
So far, we’ve set up React video streaming server to serve a video file when requested. In reality, our React application will have two views:
- A Home view that contains a list of videos
- A Player view where videos will play
We’ll be using Bootstrap to layout our interface, so add the following to the head
section of public/index.html
in your client
project:
- File: client/public/index.html
1 2
<!-- add to <head> --> <link rel="stylesheet" href="https://cdnjs.cloudflare.com/ajax/libs/twitter-bootstrap/4.4.1/css/bootstrap.css">
React video streaming application has two routes to handle the Home
and Player
views, so install react-router-dom
to handle routing of the React application. From the terminal, run the command:
If you are using yarn:
yarn add react-router-dom
If you are using npm:
npm install --save react-router-dom
This installs the recommended router for React applications.
Create the Home View
We can start to build out the necessary views. Let’s start with the Home
view. Create a new file src/Home.js
in your client
project and add the following snippet:
- File: client/src/Home.js
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42
import React, { Component } from 'react'; import { Link } from 'react-router-dom'; export default class Home extends Component { constructor() { super(); this.state = { videos: [] }; } async componentDidMount() { try { const response = await fetch('http://localhost:4000/videos'); const data = await response.json(); this.setState({ videos: [...data] }); } catch (error) { console.log(error); } } render() { return ( <div className="App App-header"> <div className="container"> <div className="row"> {this.state.videos.map(video => <div className="col-md-4" key={video.id}> <Link to={`/player/${video.id}`}> <div className="card border-0"> <img src={`http://localhost:4000${video.poster}`} alt={video.name} /> <div className="card-body"> <p>{video.name}</p> <p>{video.duration}</p> </div> </div> </Link> </div> )} </div> </div> </div> ) } }
Our component starts off by importing some required packages (lines 1-2). Then it initializes the state variable videos
to an empty array (line 7). In the componentDidMount
(lines 10-18), it makes a request to an endpoint (http://localhost:4000/videos), which will return an array of video metadata. This metadata will be represented as array of objects, where each object looks like:
|
|
After fetching the video metadata, we render it as a list of videos (lines 19-40). Each card is wrapped with a link to the Player view, which will be created in the next section.
On line 28, another endpoint request is made to http://localhost:4000${video.poster}
, which will return a thumbnail of a video in the list. The video.poster
variable is populated with a value like /video/0/poster
from the video metadata array, so the request will have the form http://localhost:4000/video/:id/poster
.
/videos
metadata endpoint, or the /video/:id/poster
video thumbnail endpoint yet. These will be added to the server
project in the Handling Requests from the Frontend section.Create the Player View
Next, we create the player view. Create a new file src/Player.js
in the client
project and add the following snippet:
- File: client/src/Player.js
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31
import React, { Component } from 'react' export default class Player extends Component { constructor(props) { super(props); this.state = { videoId: this.props.match.params.id, videoData: {} }; } async componentDidMount() { try { const res = await fetch(`http://localhost:4000/video/${this.state.videoId}/data`); const data = await res.json(); this.setState({ videoData: data }); } catch (error) { console.log(error); } } render() { return ( <div className="App"> <header className="App-header"> <video controls muted autoPlay> <source src={`http://localhost:4000/video/${this.state.videoId}`} type="video/mp4"></source> </video> <h1>{ this.state.videoData.name }</h1> </header> </div> ) } }
For the player view, we get the video id
from the URL parameter (line 6):
- With the
id
, we can make a request to the server to fetch metadata about the video:http://localhost:4000/video/${this.state.videoId}/data
, on line 12. - In the markup for the view, the video element’s
src
attribute is a link which appends theid
to the/video
route, and the server responds with the actual video:http://localhost:4000/video/${this.state.videoId}
, on line 24.
/video/:id/data
metadata endpoint, or the /video/:id
video streaming endpoint yet. These will be added to the server
project in the Handling Requests from the Frontend section.Update App.js
That’s all we need for the views. Let’s glue them both together. Replace the contents of your src/App.js
with this snippet:
- File: client/src/App.js
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21
import React from 'react'; import { Route, BrowserRouter as Router, Switch, } from "react-router-dom"; import Home from './Home'; import Player from './Player'; import './App.css'; function App() { return ( <Router> <Switch> <Route exact path="/" component={Home}></Route> <Route path="/player/:id" component={Player}></Route> </Switch> </Router> ); } export default App;
Here, we import the router package (lines 2-6), as well as our Home
and Player
view components (lines 7 and 8). The /
route (line 15) shows the Home component. For the /player
route (line 16), notice the dynamic :id
which would match anything that matches the pattern. This is how we pass the id
to the Player
component.
Handling Requests from the Frontend
Right now, we have four requests from the frontend that are not handled by our server yet:
/videos
: Returns an array of video metadata that will be used to populate the list of videos in theHome
view/video/:id/data
: Returns metadata for a single video. Used by thePlayer
view./video/:id
: Streams a video with a given ID. Used by thePlayer
view./video/:id/poster
: Returns a thumbnail for a video with a given ID. Used by theHome
view.
Let’s tackle them one after another:
Return Metadata for the List of Videos
For this demo application, we’ll create an array of multiple objects that will hold the metadata and send that to the frontend when requested. In a real application, you would probably be reading the data from a database, which would then be used to generate an array like this. For simplicity’s sake, we won’t be doing that in this tutorial.
From the
server
directory, openapp.js
and add this array declaration just after therequire()
statements:- File: server/app.js
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22
// add after require() statements const videos = [ { id: 0, poster: '/video/0/poster', duration: '3 mins', name: 'Sample 1' }, { id: 1, poster: '/video/1/poster', duration: '4 mins', name: 'Sample 2' }, { id: 2, poster: '/video/2/poster', duration: '2 mins', name: 'Sample 3' }, ];
As you can see, each object contains information about the video. Notice the
poster
attribute which contains the link to a poster image of the video. Later in this tutorial, we’ll see how we can generate a poster image from a video.With this in place, in
server/app.js
, let’s create a new route/videos
that will send this data to the frontend.Add this line after the other
require()
statements at the top of theserver/app.js
:- File: server/app.js
1 2 3
// add after other require() statements const cors = require('cors');
Add these lines just after the existing
app.get('/video', ...)
route:- File: server/app.js
1 2 3 4
// add after existing app.get('/video', ...) route app.use(cors()); app.get('/videos', (req, res) => res.json(videos));
First, we enable
cors
on the server since we’ll be making the requests from a different origin (domain).cors
was installed in the Application Setup section. Then the/videos
route is declared, which returns the array we just created injson

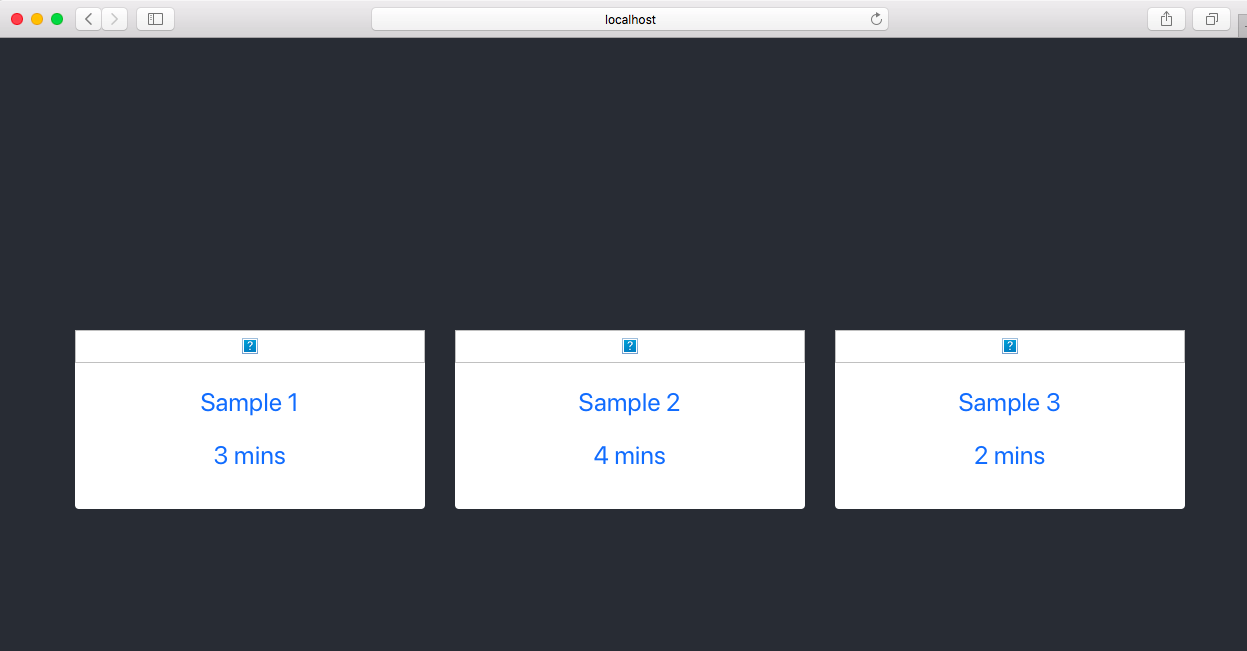

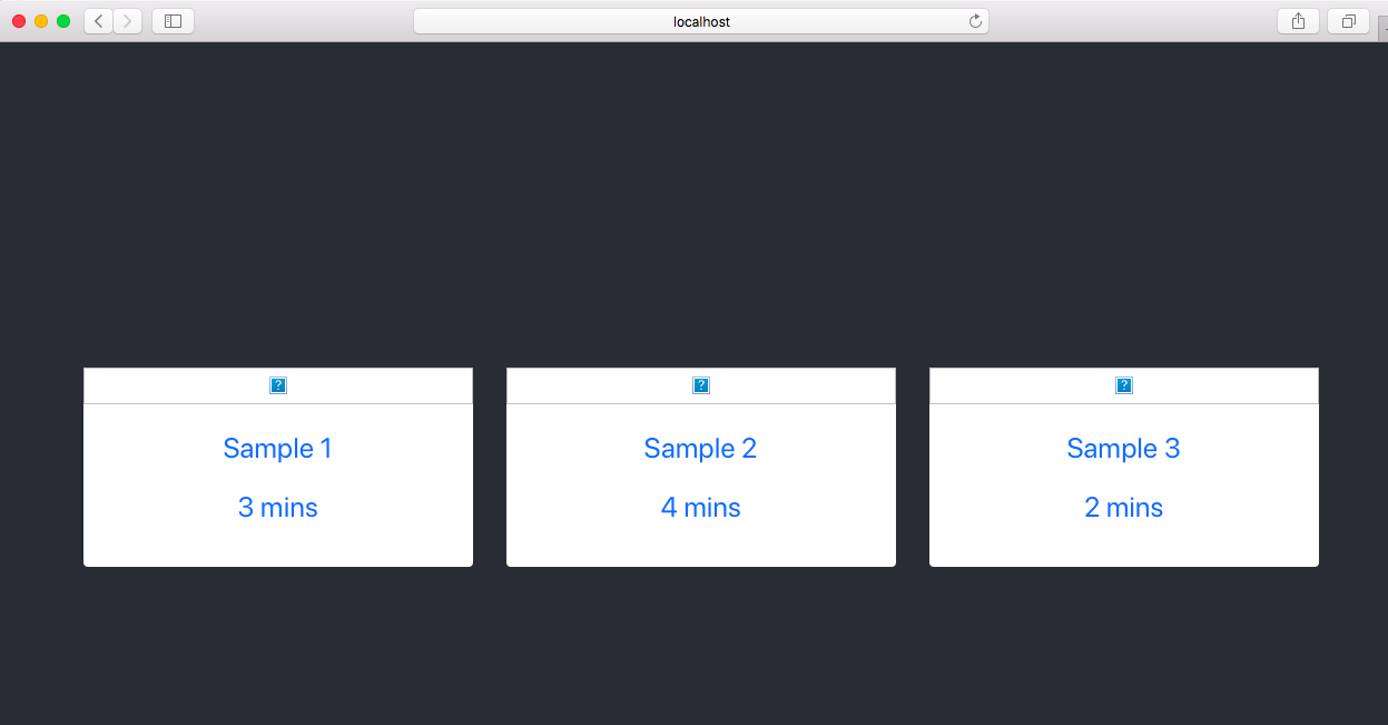

format.Save the file and it should automatically restart the server. Once it’s started, switch to your browser and check the React application. Your app should display the names and the duration of the videos, but not the thumbnails:
Return Metadata for a Single Video
Our React application fetches the video by id
, so we can use the id
to get the requested video metadata from the array. Let’s create a new route that will handle this in server/app.js
. Add this snippet of code after the route from the previous section:
- File: server/app.js
1 2 3 4 5 6
// add after app.get('/videos', ...) route app.get('/video/:id/data', (req, res) => { const id = parseInt(req.params.id, 10); res.json(videos[id]); });
If you remember, the Player
view makes a request to http://localhost:4000/video/${this.state.videoId}/data
which would match this route. This snippet gets the id
from the route parameters and converts it to an integer. Then we send the object that matches the id
from the videos
array back to the client.

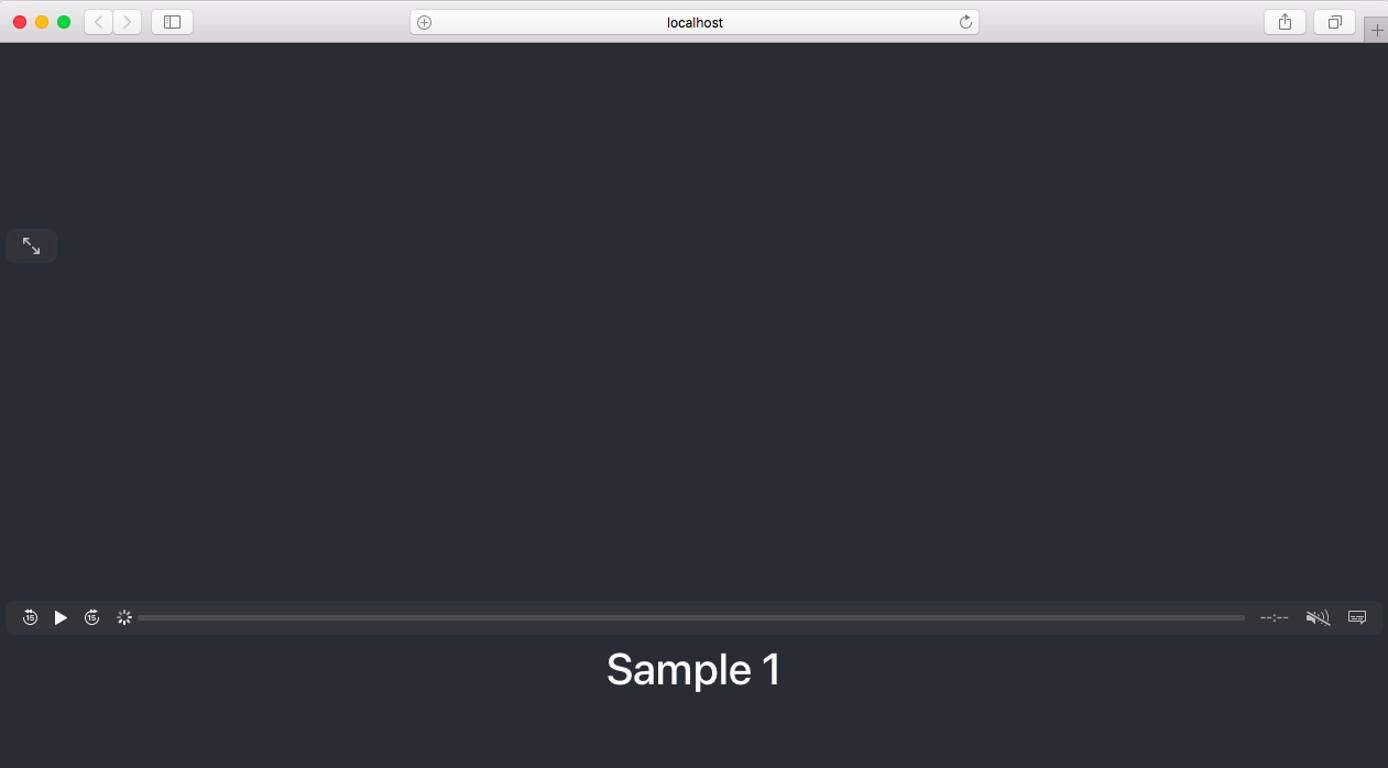

Now, the Player
view should look like this:
Stream a Video
In the Application Setup section, we created a /video
route that just serves a video to the client. This endpoint did not actually send smaller chunks of a video; instead, it just served an entire video file on request.
We now need to implement two new features that are not supported by that endpoint. First, we need to be able to dynamically serve one of the three videos that are in the videos
array. Second, we need to stream the video in chunks.
Delete the
/video
route fromserver/app.js
.We need three videos, so copy the example videos from the tutorial’s source code into the
assets/
directory of yourserver
project. Make sure the filenames for the videos are0.mp4
,1.mp4
, and2.mp4
, as these correspond to theid
s in thevideos
array:Create the route for streaming videos. Add this snippet below your other routes in
server/app.js
:- File: server/app.js
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32
// add after app.get('/video/:id/data', ...) route app.get('/video/:id', (req, res) => { const path = `assets/${req.params.id}.mp4`; const stat = fs.statSync(path); const fileSize = stat.size; const range = req.headers.range; if (range) { const parts = range.replace(/bytes=/, "").split("-"); const start = parseInt(parts[0], 10); const end = parts[1] ? parseInt(parts[1], 10) : fileSize-1; const chunksize = (end-start) + 1; const file = fs.createReadStream(path, {start, end}); const head = { 'Content-Range': `bytes ${start}-${end}/${fileSize}`, 'Accept-Ranges': 'bytes', 'Content-Length': chunksize, 'Content-Type': 'video/mp4', }; res.writeHead(206, head); file.pipe(res); } else { const head = { 'Content-Length': fileSize, 'Content-Type': 'video/mp4', }; res.writeHead(200, head); fs.createReadStream(path).pipe(res); } });

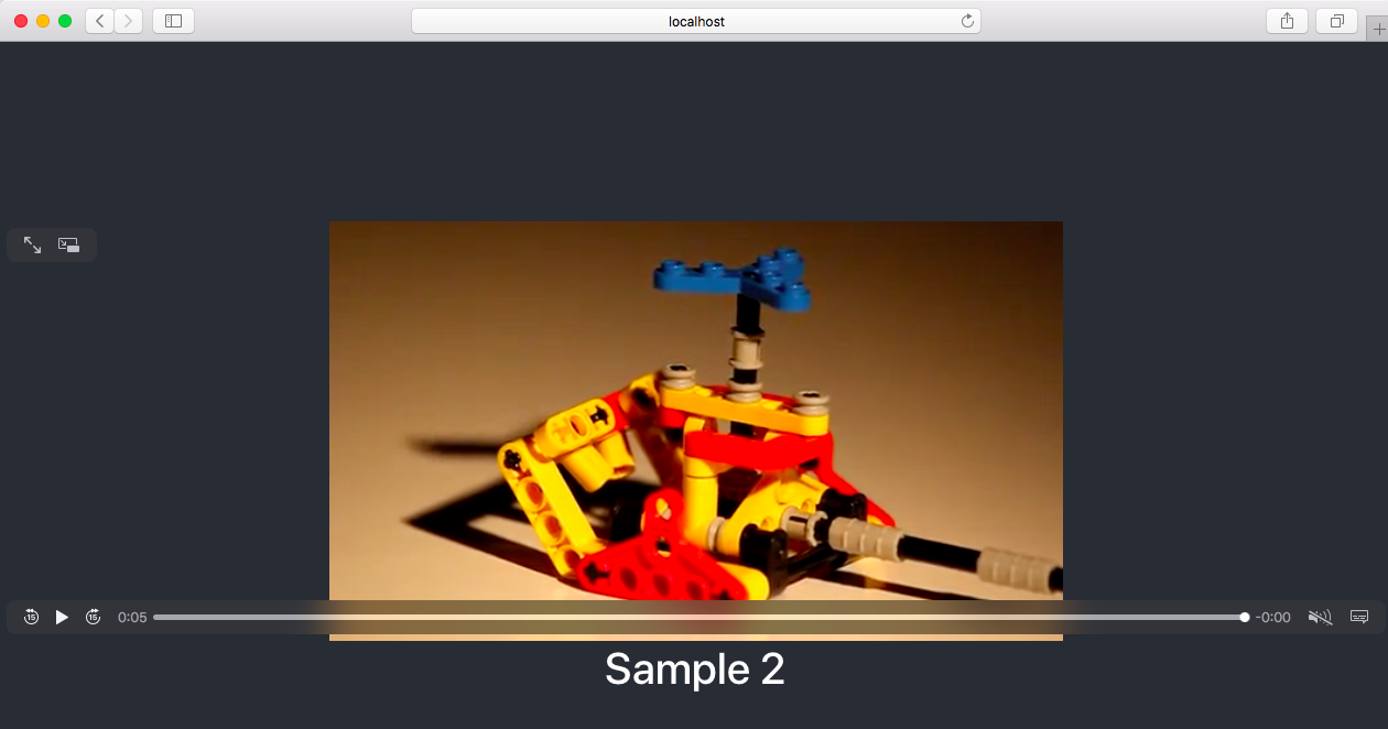

Save the file, which should automatically restart the server. Then navigate to your browser and refresh the application. You should see something like this:
Inspecting the Streaming Video Route
The new /videos/:id
route contains a fair bit of code, so let’s walk through it:
|
|
First, we get the id
from the route /video/:id
and use it to generate the path
to the video. Using fs
, we read the file to get the file size. For videos, a user’s browser will send a range
parameter in the request. This lets the server know which chunk of the video to send back to the client.
Some browsers send a range in the initial request, but others don’t. For those that don’t, or if for any other reason the browser doesn’t send a range, we handle that in the else
block. This code gets the file size and send the first few chunks of the video:
|
|
Subsequent requests will include a range, which we handle in the if
block:
|
|
This code creates a read stream using the start
and end
values of the range. We then set the response headers, setting the Content-Length
to the chunk size that is calculated from the start
and end
values. We also use HTTP code 206, which signifies that the response contains partial content. This means the browser will keep making requests until it has fetched all chunks of the video.
Dynamically Generate a Thumbnail for a Video
Our Home
view appears broken at the moment because the poster images are not generated. To generate the thumbnails for these posters:
If you have not yet installed FFmpeg on your system, install it now.
Then, open your terminal in the
server
directory and install thethumbsupply
module, which will use FFmpeg:When using yarn:
yarn add thumbsupply
When using npm:
npm install --save thumbsupply
Add this line after your other
require()
statements inserver/app.js
. This will importthumbsupply
:- File: server/app.js
1 2 3
// add after other require() statements const thumbsupply = require('thumbsupply');
Create a new route that will handle generating thumbnails. Add this code after the other routes in
server/app.js
:- File: server/app.js
1 2 3 4 5 6
// add after app.get('/video/:id', ...) route app.get('/video/:id/poster', (req, res) => { thumbsupply.generateThumbnail(`assets/${req.params.id}.mp4`) .then(thumb => res.sendFile(thumb)); });
thumbsupply
provides agenerateThumbnail
method that accepts a path to a video and then generates the thumbnail. If successful, we send the generated file back to the client.Save the file, which restarts the server. Refresh the application in the browser, and you should see that the
Home
view now includes poster images for the videos:
Add Captions to Videos
Adding captions helps the deaf and hard of hearing to be able to follow along with videos. It’s also fair to point out that captions and subtitles are not the same thing. Even though they are not the same, they are implemented the same way.
Create the Caption File
A caption file contains the caption text for a video. We won’t look at how to create caption files in this tutorial, but here’s what one looks like:
1 2 3 4 5 6 7
WEBVTT 00:00:00.500 --> 00:00:02.000 The Web is always changing 00:00:02.500 --> 00:00:08.300 and the way we access it is changing
The file starts with WEBVTT
, which indicates this is a Web Video Track File. This is the format used for captions/subtitles on the web, and its file extension is .vtt
. A duration is specified for each caption and the caption text sits under the duration.
Inside the
server
project, create acaptions/
directory underassets/
directory:mkdir captions/assets
Create a new file named
sample.vtt
inside the new directory with this snippet:- File: server/assets/captions/sample.vtt
1 2 3 4 5 6 7
WEBVTT 00:00:00.500 --> 00:00:02.000 The Web is always changing 00:00:02.500 --> 00:00:08.300 and the way we access it is changing
For this guide’s example, the same caption file will be used for all caption requests. In a real application, there would be a unique caption file for each video.
Add the Track Element to Player.js
The track
element is used to support timed text tracks. Update the video
element in client/src/Player.js
like so:
- File: client/src/Player.js
1 2 3 4
<video controls muted autoPlay crossOrigin="anonymous"> <source src={`http://localhost:4000/video/${this.state.videoId}`} type="video/mp4"></source> <track label="English" kind="captions" srcLang="en" src={`http://localhost:4000/video/${this.state.videoId}/caption`} default></track> </video>
We’ve added crossOrigin="anonymous"
to the video element; otherwise, the request for captions will fail. The track
element includes these attributes:
Attribute | Description |
---|---|
label | Specifies the label that appears in the captions menu |
kind | Can be captions or subtitles |
srcLang | The language the caption is in (e.g. en means English) |
src | The location of the caption file |
default | Indicates this as the default caption |
Add the Caption Route
With the track
element set up, we can now create the endpoint that will handle caption requests.
Create a new route in
server/app.js
after the previous routes:- File: server/app.js
1 2 3
// add after the app.get('/video/:id/poster', ...) route app.get('/video/:id/caption', (req, res) => res.sendFile('assets/captions/sample.vtt', { root: __dirname }));
This route will serve the same caption file, regardless of which
id
is passed as a parameter. In a more complete application, you could serve different caption files for differentid

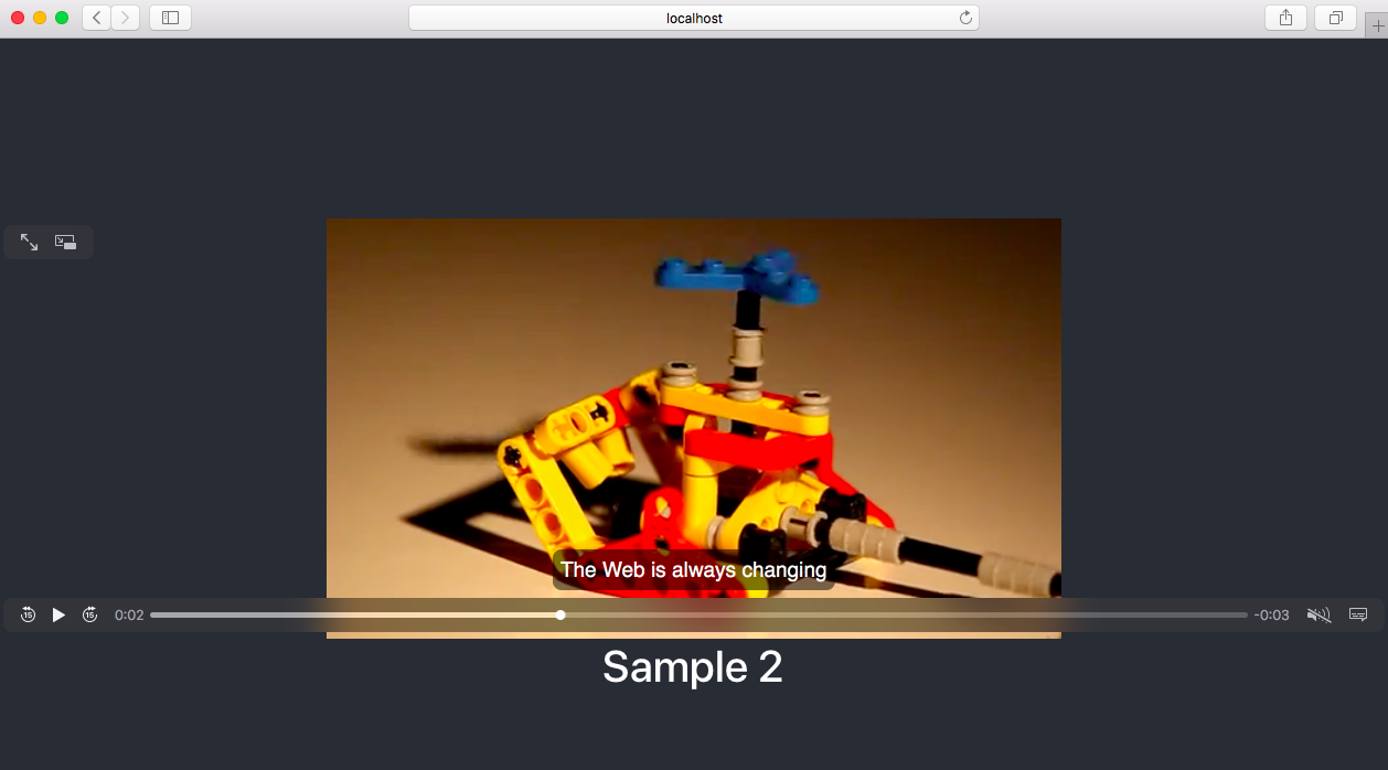

s.Save the file, which restarts the server. You should now see captions appear on the video:
Making Things Pretty
We can add some styles to make the application look better:
Update the React application
src/App.css
file in yourclient
project with this snippet:- File: client/src/App.css
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38
.App-header { min-height: 100vh; color: white; } header, footer { background-color: #374153; text-align: center; color: white; padding: 10px 0; } header { margin-bottom: 50px; font-size: 28px; } footer { margin-top: 50px; font-size: 14px; } .card { margin: 10px 0; } a, a:hover { color: #282c34; text-decoration: none; } video { width: 100%; height: 50vh; } img { height: 200px; object-fit: cover; object-position: center top; } p { margin-bottom: 5px; font-size: 16px; }
Replace
src/index.css
with:- File: client/src/index.css
1 2 3 4 5 6 7
body { margin: 0; font-family: 'Poppins', sans-serif; -webkit-font-smoothing: antialiased; -moz-osx-font-smoothing: grayscale; background-color: #282c34; }
Add this line to the
head
section ofclient/public/index.html
in yourclient
project:- File: client/public/index.html
1
<link href="https://fonts.googleapis.com/css?family=Poppins&display=swap" rel="stylesheet">
Create
Header
andFooter
components in thesrc/
directory of yourclient
project:- File: client/src/Header.js
1 2 3 4 5 6 7 8 9
import React from 'react'; function Header() { return ( <header> uTunnel </header> ); } export default Header;
- File: client/src/Footer.js
1 2 3 4 5 6 7 8 9
import React from 'react'; function Footer() { return ( <footer> © 2020, uTunnel. All rights reserved. </footer> ); } export default Footer;
Import and use the new
Header
andFooter
components insrc/Home.js
andsrc/Player.js
. To do this, add theseimport
statements below the otherimport
statements at the top of both files:1 2 3 4
// add below the other import statements import Header from './Header'; import Footer from './Footer';
Then, add the components to markup in the
return()
method of both files in the following locations:- File: Home.js
1 2 3 4 5 6 7 8 9 10 11 12 13
// ... render() { return ( <div className="App App-header"> <Header /> <!-- Other component markup --> <Footer /> </div> ) } // ...
- File: Player.js
1 2 3 4 5 6 7 8 9 10 11 12 13
// ... render() { return ( <div className="App"> <Header /> <!-- Other component markup --> <Footer /> </div> ) } // ...

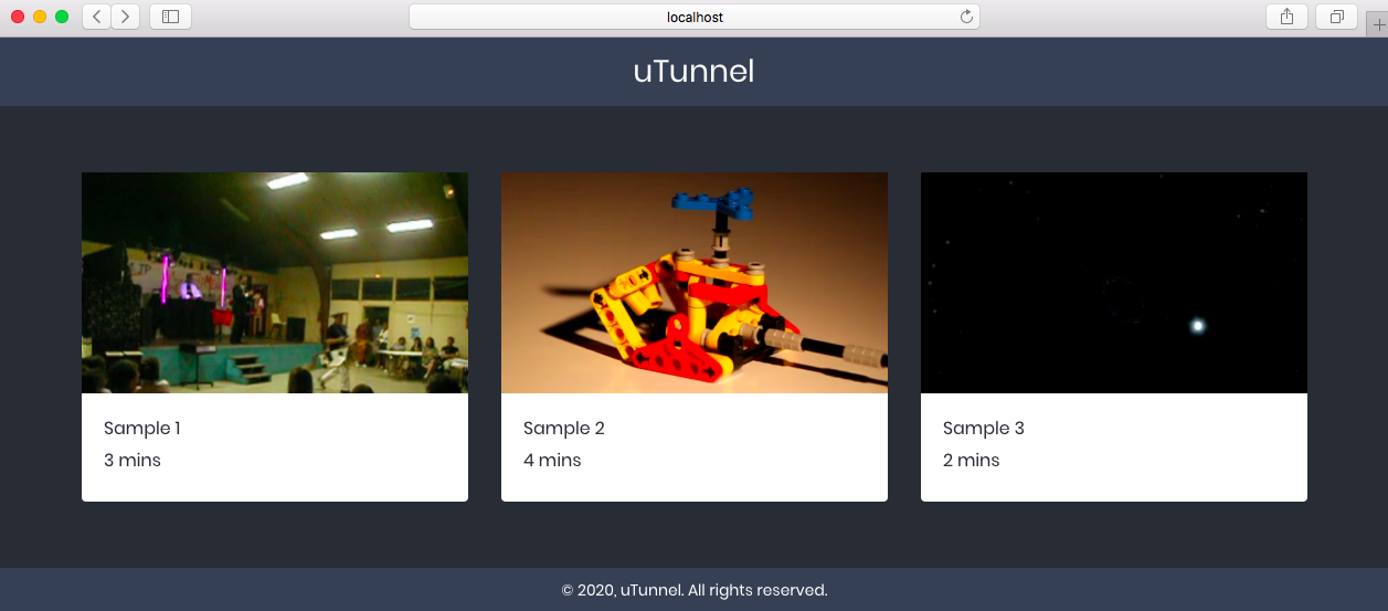

The application should now look like this:
Conclusion
In this tutorial, we have seen how to create a server in Node.js that streams videos, generates captions and posters for those videos, and serves metadata of the videos. We’ve also seen how to use React on the frontend to consume the endpoints and the data generated by the server.
More Information
You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.
This page was originally published on
