Automate Static Site Deployments with Salt, Git, and Webhooks

This guide will walk through the deployment of a static site using SaltStack, which is a flexible configuration management system. The configuration files created for Salt will be version controlled using Git. Updates to your static site’s code will be automatically communicated to the production system using webhooks, an event notification system for the web.

Setting up these mechanisms offers an array of benefits:

• Using webhooks will keep your production website in sync with your development without any actions needed on your part.

• Using Salt provides an extensible, reliable way to alter your production systems and minimize human error.

• Version controlling your configuration management helps you track or revert the changes you’ve made to your systems and collaborate with others on your deployments.

Development and Deployment Workflow

The static site generator used in this guide is Hugo, a fast framework written in Go. Static site generators compile Markdown or other content files into HTML files. This guide can easily be adapted to other frameworks.

Two Git repositories will be created: one will track changes to the Hugo site, and the other will track Salt’s configuration files. Remote repositories will be created for both on GitHub.

Two Linodes will be created: one will act as the Salt master, and the other as the Salt minion. This guide was tested under Debian 9, but the instructions may work with other distributions as well. The Salt minion will run the production webserver which serves the Hugo site, and the master will configure the minion’s software. The minion will also run a webhook server which will receive code update notifications from GitHub.

It is possible to run Salt in a masterless mode, but using a Salt master will make it easier to expand on your deployment in the future.

Before You Begin

Set Up the Development Environment

Development of your Hugo site and your Salt formula will take place on your personal computer. Some software will need to be installed on your computer first:

1. Install Git using one of the methods in Linode’s guide. If you have a Mac, use the Homebrew method, as it will also be used to install Hugo.

2. Install Hugo. The Hugo documentation has a full list of installation methods, and instructions for some popular platforms are as follows:

-   Debian/Ubuntu:

        sudo apt-get install hugo

-   Fedora, Red Hat and CentOS:

        sudo dnf install hugo

-   Mac, using [Homebrew](https://brew.sh):

        brew install hugo

-   Windows, using [Chocolatey](https://chocolatey.org)

        choco install hugo -confirm

Deploy the Linodes

1. Follow the Creating a Compute Instance guide and deploy two Linodes running Debian 9.

2. In the settings tab of your Linodes’ dashboards, label one of the Linodes as salt-master and the other as salt-minion. This is not required, but it will help keep track of which Linode serves which purpose.

3. Complete the Setting Up and Securing a Compute Instance guide on each Linode to create a limited Linux user account with sudo privileges, harden SSH access, and remove unnecessary network services.

   Note

   This guide is written for a non-root user. Commands that require elevated privileges are prefixed with sudo. If you’re not familiar with the sudo command, visit our Users and Groups guide.

   All configuration files should be edited with elevated privileges. Remember to include sudo before running your text editor.

4. Configure DNS for your site by adding a domain zone and setting up reverse DNS on your Salt minion’s IP address.

Set Up the Salt Master and Salt Minion

Before you can start setting up the Salt formulas for the minion, you first need to install the Salt software on the master and minion and set up communication between them.

1. Log into the Salt master Linode via SSH and run the Salt installation bootstrap script:

   wget -O bootstrap-salt.sh https://bootstrap.saltproject.io
   sudo sh bootstrap-salt.sh -M -N


   Note

   The -M option tells the script to install the Salt master software, and the -N option tells the script to not install the minion software.

2. Log into the Salt minion Linode via SSH and set the hostname. This guide uses hugo-webserver as the example hostname:

   sudo hostnamectl set-hostname hugo-webserver


   Note

   This step needs to be completed before installing Salt on the minion, as Salt will use your hostname to generate the minion’s Salt ID.

3. Edit the minion’s /etc/hosts file and append a new line for your hostname after the localhost line; replace 192.0.2.3 with your minion’s public IP address:

   File: /etc/hosts

   1 2 3

   127.0.0.1 localhost 192.0.2.3 hugo-webserver # [...]

4. Run the bootstrap script on the minion:

   wget -O bootstrap-salt.sh https://bootstrap.saltproject.io
   sudo sh bootstrap-salt.sh


5. Edit /etc/salt/minion on the Salt minion. Uncomment the line that begins with #master: and enter your Salt master’s IP after the colon (in place of 192.0.2.2):

   File: /etc/salt/minion

   1 2 3

   # [...] master: 192.0.2.2 # [...]

   Note

   Linode does not charge for traffic within a data center across private IP addresses. If your Salt master and minion are in the same data center, and both have a private IP addresses, you can use your Salt master’s private IP address in this step to avoid incurring data traffic charges.

6. Restart Salt on the minion:

   sudo systemctl restart salt-minion


Salt Minion Authentication

The minion should now be able to find the master, but it has not yet been authenticated to communicate with the master. Salt uses public-private keypairs to authenticate minions to masters.

1. On the master, list fingerprints for all the master’s local keys, accepted minion keys, and unaccepted keys:

   sudo salt-key --finger-all


   The output should resemble:

   Local Keys:
   master.pem:  fe:1f:e8:3d:26:83:1c:...
   master.pub:  2b:93:72:b3:3a:ae:cb:...
   Unaccepted Keys:
   hugo-webserver:  29:d8:f3:ed:91:9b:51:...

   Note

   The example fingerprints in this section have been truncated for brevity.

2. Copy the fingerprint for master.pub from the output of salt-key --finger-all. On your Salt minion, open /etc/salt/minion in a text editor. Uncomment the line that begins with #master_finger: and enter the value for your master.pub after the colon in single-quotes:

   File: /etc/salt/minion

   1 2 3

   # [...] master_finger: '0f:d6:5f:5e:f3:4f:d3:...' # [...]

3. Restart Salt on the minion:

   sudo systemctl restart salt-minion


4. View the minion’s local key fingerprint:

   sudo salt-call key.finger --local


   local:
       29:d8:f3:ed:91:9b:51:...

   Compare the output’s listed fingerprint to the fingerprints listed by the Salt master for any Unaccepted Keys. This is the output of salt-key --finger-all run on the master in the beginning of this section.

5. After verifying, that the minion’s fingerprint is the same as the fingerprint detected by the Salt master, run the following command on the master to accept the minion’s key:

   sudo salt-key -a hugo-webserver


6. From the master, verify that the minion is running:

   sudo salt-run manage.up


   You can also run a Salt test ping from the master to the minion:

   sudo salt 'hugo-webserver' test.ping


   hugo-webserver:
       True

Initialize the Salt Minion’s Formula

The Salt minion is ready to be configured by the master. These configurations will be written in a Salt formula which will be hosted on GitHub.

1. On your computer, create a new directory to hold your minion’s formula and change to that directory:

   mkdir hugo-webserver-salt-formula
   cd hugo-webserver-salt-formula


2. Inside the formula directory, create a new hugo directory to hold your webserver’s configuration:

   mkdir hugo


3. Inside the hugo directory, create a new install.sls file:

   File: hugo-webserver-salt-formula/hugo/install.sls

   1 2 3

   nginx_pkg: pkg.installed: - name: nginx

   Note

   Salt configurations are declared in YAML– a markup language that incorporates whitespace/indentation in its syntax. Be sure to use the same indentation as the snippets presented in this guide.

   A .sls file is a SaLt State file. Salt states describe the state a minion should be in after the state is applied to it: e.g., all the software that should be installed, all the services that should be run, and so on.

   The above snippet says that a package with name nginx (i.e. the NGINX web server) should be installed via the distribution’s package manager. Salt knows how to negotiate software installation via the built-in package manager for various distributions. Salt also knows how to install software via NPM and other package managers.

   The string nginx_pkg is the ID for the state component, pkg is the name of the Salt module used, and pkg.installed is referred to as a function declaration. The component ID is arbitrary, so you can name it however you prefer.

   Note

   If you were to name the ID to be the same as the relevant installed package, then you do not need to specify the - name option, as it will be inferred from the ID. For example, this snippet also installs NGINX:

   File: hugo-webserver-salt-formula/hugo/install.sls

   1 2	nginx: pkg.installed

   The same name/ID convention is true for other Salt modules.

4. Inside the hugo directory, create a new service.sls file:

   File: hugo-webserver-salt-formula/hugo/service.sls

   1 2 3 4 5 6

   nginx_service: service.running: - name: nginx - enable: True - require: - pkg: nginx_pkg

   This state says that the nginx service should be immediately run and be enabled to run at boot. For a Debian 9 system, Salt will set the appropriate systemd configurations to enable the service. Salt also supports other init systems.

   The require lines specify that this state component should not be applied until after the nginx_pkg component has been applied.

   Note

   Unless specified by a require declaration, Salt makes no guarantees about the order that different components are applied. The order that components are listed in a state file does not necessarily correspond with the order that they are applied.

5. Inside the hugo directory, create a new init.sls file with the following contents:

   File: hugo-webserver-salt-formula/hugo/init.sls

   1 2 3

   include: - hugo.install - hugo.service

   Using the include declaration in this way simply concatenates the install.sls and service.sls files into a single combined state file.

   Right now, these state files only install and enable NGINX. More functionality will be enabled later in this guide.

   The install and service states will not be applied to the minion on their own–instead, only the combined init state will ever be applied. In Salt, when a file named init.sls exists inside a directory, Salt will refer to that particular state by the name of the directory it belongs to (i.e. hugo in our example).

   Note

   The organization of the state files used here is not mandated by Salt. Salt does not place restrictions on how you organize your states. This specific structure is presented as an example of a best practice.

Push the Salt Formula to GitHub

1. Inside your hugo-webserver-salt-formula directory on your computer, initialize a new Git repository:

   cd ~/hugo-webserver-salt-formula
   git init


2. Stage the files you just created:

   git add .


3. Review the staged files:

   git status


   On branch master
   No commits yet
   Changes to be committed:
     (use "git rm --cached <file>..." to unstage)

     new file:   hugo/init.sls
     new file:   hugo/install.sls
     new file:   hugo/service.sls

4. Commit the files:

   git commit -m "Initial commit"

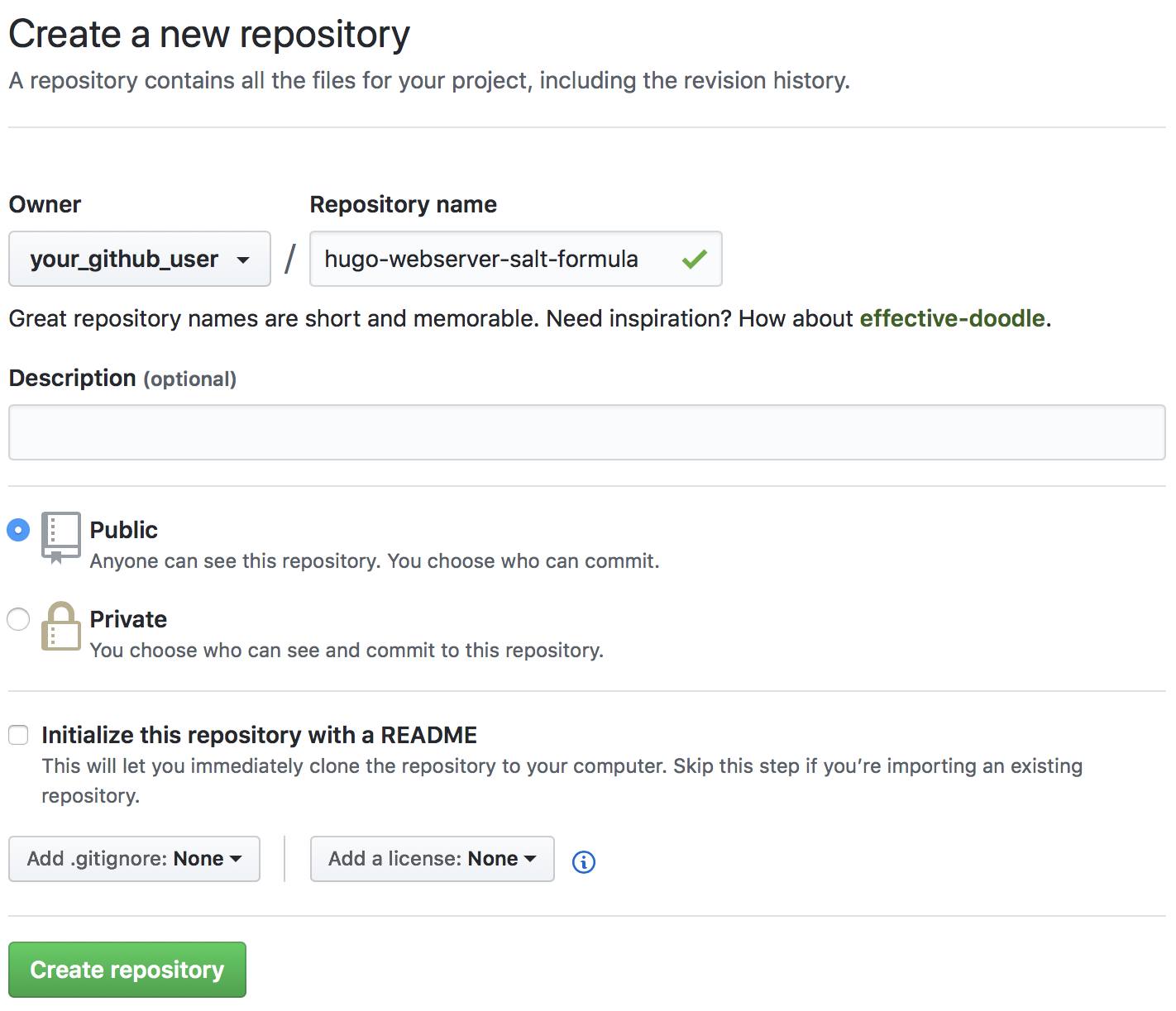

5. Log into the GitHub website in your browser and navigate to the Create a New Repository page.

6. Create a new public repository with the name hugo-webserver-salt-formula:

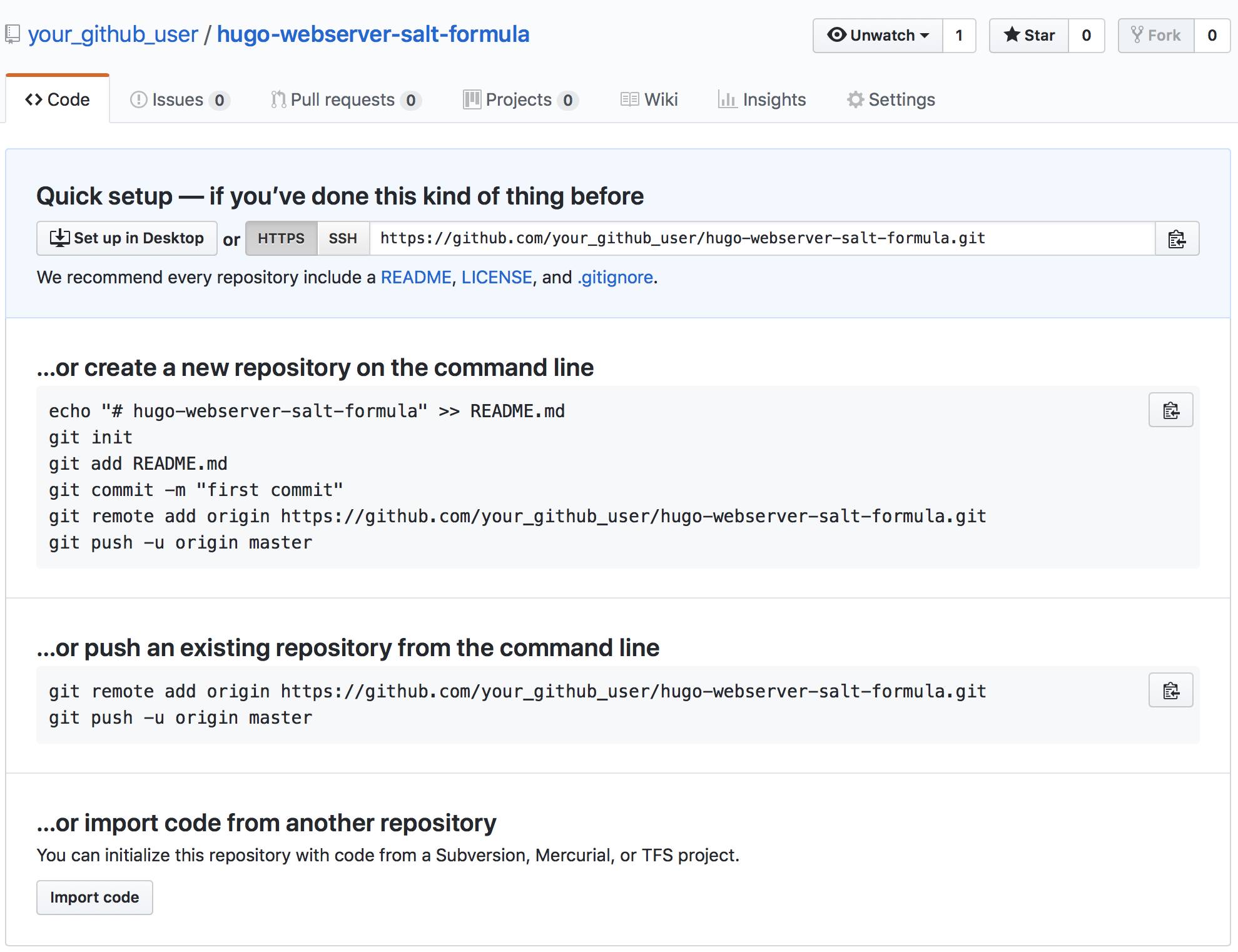

7. Copy the HTTPS URL for your new repository:

8. In your local Salt formula repository, add the GitHub repository as the origin remote and push your new files to it. Replace github-username with your GitHub user:

   git remote add origin https://github.com/github-username/hugo-webserver-salt-formula.git
   git push -u origin master


   Note

   If you haven’t pushed anything else to your GitHub account from the command line before, you may be prompted to authenticate with GitHub. If you have two-factor authentication enabled for your account, you will need to create and use a personal access token.

9. If you navigate back to your hugo-webserver-salt-formula repository on GitHub and refresh the page, you should now see your new files.

Enable GitFS on the Salt Master

Update your Salt master to serve the new formula from GitHub:

1. Salt requires that you install a Python interface to Git to use GitFS. On the Salt master Linode:

    sudo apt-get install python-git


2. Open /etc/salt/master in a text editor. Uncomment the fileserver_backend declaration and enter roots and gitfs in the declaration list:

   File: /etc/salt/master

   1 2 3

   fileserver_backend: - roots - gitfs

   roots refers to Salt files stored on the master’s filesystem. While the Hugo webserver Salt formula is stored on GitHub, the Salt Top file will be stored on the master. The Top file is how Salt maps states to the minions they will be applied to.

3. In the same file, uncomment the gitfs_remotes declaration and enter your Salt formula’s repository URL:

   File: /etc/salt/master

   1 2	gitfs_remotes: - https://github.com/your_github_user/hugo-webserver-salt-formula.git

4. Uncomment the gitfs_provider declaration and set its value to gitpython:

   File: /etc/salt/master

   1	gitfs_provider: gitpython

Apply the Formula’s State to the Minion

1. In /etc/salt/master, uncomment the file_roots declaration and set the following values:

   File: /etc/salt/master

   1 2 3

   file_roots: base: - /srv/salt/

   file_roots specifies where state files are kept on the Master’s filesystem. This is referenced when - roots is declared in the fileserver_backend section. base refers to a Salt environment, which is a tree of state files that can be applied to minions. This guide will only use the base environment, but other environments could be created for development, QA, and so on.

2. Restart Salt on the master to enable the changes in /etc/salt/master:

   sudo systemctl restart salt-master


3. Create the /srv/salt directory on the Salt master:

   sudo mkdir /srv/salt


4. Create a new top.sls file in /srv/salt:

   File: /srv/salt/top.sls

   1 2 3

   base: 'hugo-webserver': - hugo

   This is Salt’s Top file, and the snippet declares that the hugo-webserver minion should receive the init.sls state from the hugo directory (from your GitHub-hosted Salt formula).

5. Tell Salt to apply states from the Top file to the minion:

   sudo salt 'hugo-webserver' state.apply


   Salt as refers to this command as a highstate. Running a highstate can take a bit of time to complete, and the output of the command will describe what actions were taken on the minion. The output will also show if any actions failed.

   Note

   If you see an error similar to:

   No matching sls found for 'hugo' in env 'base'

   Try running this command to manually fetch the Salt formula from GitHub, then run the state.apply command again:

   sudo salt-run fileserver.update


   Salt’s GitFS fetches files from remotes periodically, and this period can be configured.

6. If you visit your domain name in a web browser, you should now see NGINX’s default test page served by the Salt minion.

Initialize the Hugo Site

1. On your computer, create a new Hugo site. Make sure you are not running this command in your hugo-webserver-salt-formula directory:

   hugo new site example-hugo-site


2. Navigate to the new Hugo site directory and initialize a Git repository:

   cd example-hugo-site
   git init


3. Install a theme into the themes/ directory. This guide uses the Cactus theme:

   git submodule add https://github.com/digitalcraftsman/hugo-cactus-theme.git themes/hugo-cactus-theme


4. The theme comes with some example content. Copy it into the root of your site so that it can be viewed:

   cp -r themes/hugo-cactus-theme/exampleSite/ .


5. Edit the baseurl, themesDir, and name options in config.toml as follows; replace example.com with your own domain and Your Name with your own name:

   File: example-hugo-site/config.toml

   1 2 3 4 5 6

   # [...] baseURL = "http://example.com" # [...] themesDir = "themes" # [...] name = "Your Name"

6. Run the Hugo development server on your computer:

   hugo server


   The output from this command will end with a line like:

   Web Server is available at http://localhost:1313/ (bind address 127.0.0.1)

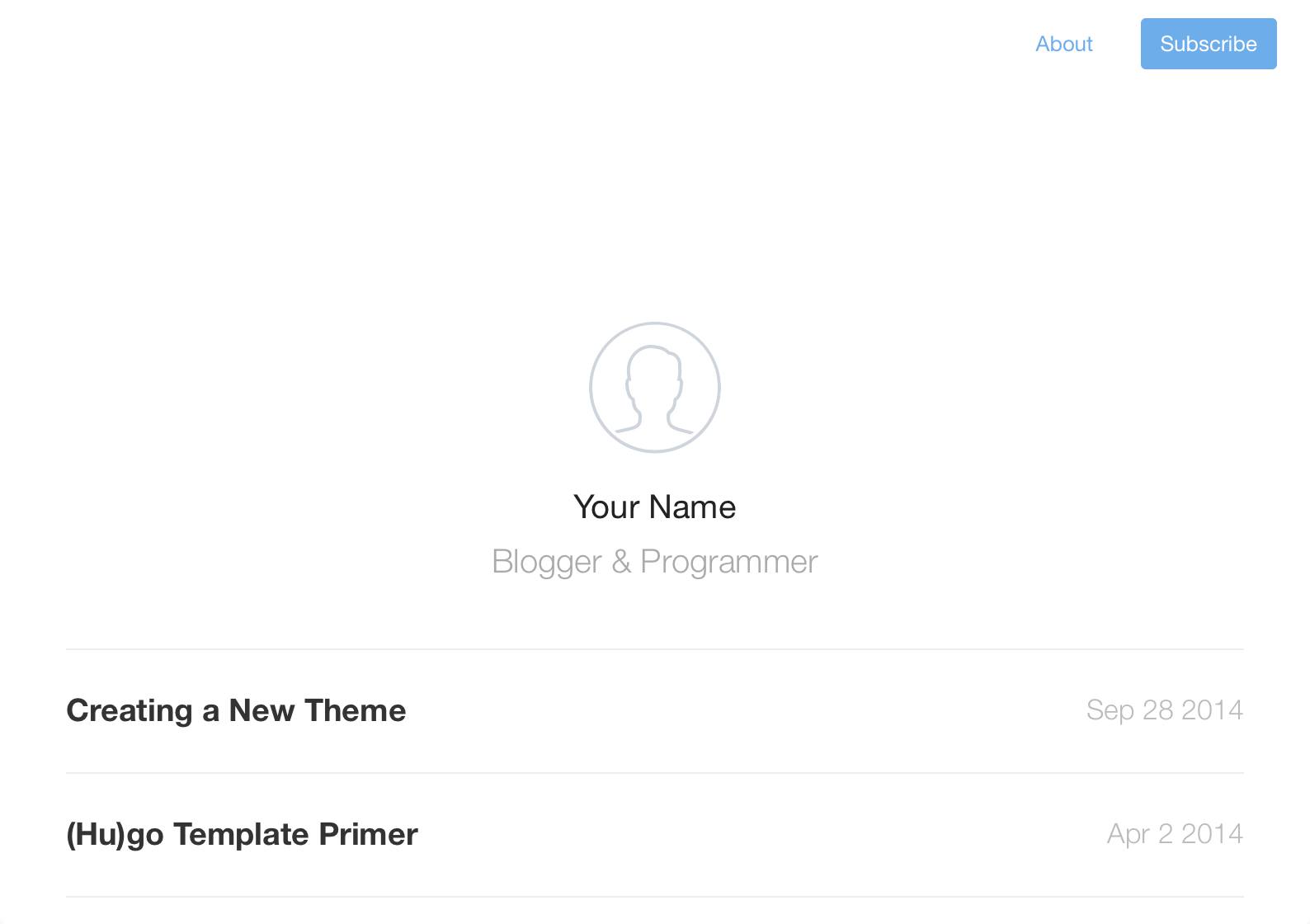

7. If you view the URL from this output in a browser, you can see your new Hugo site:

8. Enter CTRL-C in the terminal session on your computer to stop the Hugo development server. Open the .gitignore file and make sure public/ is listed. The default .gitignore from the Cactus theme should look like:

   File: example-hugo-site/config.toml

   1 2	public/ themes

   The public directory is the result of Hugo compiling the Markdown content files into HTML. These files can be regenerated by anyone who downloads your site code, so they won’t be checked into version control.

Push the Hugo Site to GitHub

1. In the Hugo site directory, commit the new site files:

   git add .
   git commit -m "Initial commit"


2. Create a new public repository on GitHub named example-hugo-site and copy the repository’s HTTPS URL.

3. In the site directory, add the GitHub repository as the origin remote and push your new files to it; replace github-username with your GitHub user:

   git remote add origin https://github.com/github-username/example-hugo-site.git
   git push -u origin master


Deploy the Hugo Site

The Salt minion’s formula needs to be updated in order to serve the Hugo site. Specifically, the formula will need to have states which:

• Install Git and clone the Hugo site repository from GitHub.

• Install Hugo and build the HTML files from the Markdown content.

• Update the NGINX configuration to serve the built site.

Some of the new state components will refer to data stored in Salt Pillar. Pillar is a Salt system that stores private data and other parameters that you don’t want to list in your formulas. The Pillar data will be kept as a file on the Salt master and not checked into version control.

Pillar data is injected into state files with Salt’s Jinja templating feature. State files are first evaluated as Jinja templates and then as YAML afterwards.

Install Git and Hugo

In your local Salt formula’s repository, edit the install.sls file to append the git_pkg and hugo_pkg states:

File: hugo-webserver-salt-formula/hugo/install.sls

1 2 3 4 5 6 7 8 9 10 11

# [...] git_pkg: pkg.installed: - name: git hugo_pkg: pkg.installed: - name: hugo - sources: - hugo: https://github.com/gohugoio/hugo/releases/download/v{{ pillar['hugo_deployment_data']['hugo_version'] }}/hugo_{{ pillar['hugo_deployment_data']['hugo_version'] }}_Linux-64bit.deb

The first state component installs Git, and the second component installs Hugo. The second component’s sources declaration specifies that the package should be downloaded from Hugo’s GitHub repository (instead of from the distribution package manager).

The {{ }} syntax that appears in {{ pillar['hugo_deployment_data']['hugo_version'] }} is a Jinja substitution statement. pillar['hugo_deployment_data']['hugo_version'] returns the value of the hugo_version key from a dictionary named hugo_deployment_data in Pillar. Keeping the Hugo version in Pillar lets you update Hugo without needing to update your formulas.

Clone the Hugo Site Git Repository

Create a new config.sls file in your local Salt formula repository’s hugo directory:

File: hugo-webserver-salt-formula/hugo/config.sls

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

hugo_group: group.present: - name: {{ pillar['hugo_deployment_data']['group'] }} hugo_user: user.present: - name: {{ pillar['hugo_deployment_data']['user'] }} - gid: {{ pillar['hugo_deployment_data']['group'] }} - home: {{ pillar['hugo_deployment_data']['home_dir'] }} - createhome: True - require: - group: hugo_group hugo_site_repo: cmd.run: - name: git clone --recurse-submodules https://github.com/{{ pillar['hugo_deployment_data']['github_account'] }}/{{ pillar['hugo_deployment_data']['site_repo_name'] }}.git - cwd: {{ pillar['hugo_deployment_data']['home_dir'] }} - runas: {{ pillar['hugo_deployment_data']['user'] }} - creates: {{ pillar['hugo_deployment_data']['home_dir'] }}/{{ pillar['hugo_deployment_data']['site_repo_name'] }} - require: - pkg: git_pkg - user: hugo_user

The final hugo_site_repo component in this snippet is responsible for cloning the example Hugo site repository from GitHub. This cloned repo is placed in the home directory of a system user that Salt creates in the preceding components. The clone command also recursively downloads the Cactus theme submodule.

The require declarations in each component ensure that:

• The clone is not run until the system user and home directory have been created, and until the software package for Git has been installed.
• The user is not created until the group it belongs to is created.

Instead of hard-coding the parameters for the user, group, home directory, GitHub account, and repository name, these are retrieved from Pillar.

Configure NGINX

1. Append the following states to your config.sls:

   File: hugo-webserver-salt-formula/hugo/config.sls

   1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34

   nginx_default: file.absent: - name: '/etc/nginx/sites-enabled/default' - require: - pkg: nginx_pkg nginx_config: file.managed: - name: /etc/nginx/sites-available/hugo_site - source: salt://hugo/files/hugo_site - user: root - group: root - mode: 0644 - template: jinja - require: - pkg: nginx_pkg nginx_symlink: file.symlink: - name: /etc/nginx/sites-enabled/hugo_site - target: /etc/nginx/sites-available/hugo_site - user: root - group: root - require: - file: nginx_config nginx_document_root: file.directory: - name: {{ pillar['hugo_deployment_data']['nginx_document_root'] }}/{{ pillar['hugo_deployment_data']['site_repo_name'] }} - user: {{ pillar['hugo_deployment_data']['user'] }} - group: {{ pillar['hugo_deployment_data']['group'] }} - dir_mode: 0755 - require: - user: hugo_user

   • The nginx_default component removes the symlink in sites-enabled for the default NGINX config, which disables that configuration.
   • nginx_config and nginx_symlink then create a new configuration file in sites-available and a symlink to it in sites-enabled.
   • The nginx_document_root component creates the directory that NGINX will serve your Hugo site files from (when filled in with Pillar data, this will directory will look like /var/www/example-hugo-site).

2. The - source: salt://hugo/files/hugo_site declaration in nginx_config refers to an NGINX configuration file that doesn’t exist in your repository yet. Create the files/ directory:

   cd ~/hugo-webserver-salt-formula/hugo
   mkdir files


3. Create the hugo_site file inside files/:

   File: hugo-webserver-salt-formula/hugo/files/hugo_site

   1 2 3 4 5 6 7 8 9 10 11 12 13

   server { listen 80; listen [::]:80; server_name {{ pillar['hugo_deployment_data']['domain_name'] }}; root {{ pillar['hugo_deployment_data']['nginx_document_root'] }}/{{ pillar['hugo_deployment_data']['site_repo_name'] }}; index index.html index.htm index.nginx-debian.html; location / { try_files $uri $uri/ = /404.html; } }

   The nginx_config component that manages this file also listed the - template: jinja declaration, so the source file is interpreted as a Jinja template. The source file is able to substitute values from Pillar using the Jinja substitution syntax.

4. Replace the content of your service.sls with this snippet:

   File: hugo-webserver-salt-formula/hugo/service.sls

   1 2 3 4 5 6 7 8

   nginx_service: service.running: - name: nginx - enable: True - require: - file: nginx_symlink - watch: - file: nginx_config

   The nginx_service component now requires nginx_symlink instead of nginx_pkg. Without this change, the service may be enabled and run before the new NGINX configuration is set up. The - watch declaration also instructs NGINX to restart whenever a change to nginx_config is made.

Build Hugo

1. Append a build_script state to config.sls:

   File: hugo-webserver-salt-formula/hugo/config.sls

   1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

   build_script: file.managed: - name: {{ pillar['hugo_deployment_data']['home_dir'] }}/deploy.sh - source: salt://hugo/files/deploy.sh - user: {{ pillar['hugo_deployment_data']['user'] }} - group: {{ pillar['hugo_deployment_data']['group'] }} - mode: 0755 - template: jinja - require: - user: hugo_user cmd.run: - name: ./deploy.sh - cwd: {{ pillar['hugo_deployment_data']['home_dir'] }} - runas: {{ pillar['hugo_deployment_data']['user'] }} - creates: {{ pillar['hugo_deployment_data']['nginx_document_root'] }}/{{ pillar['hugo_deployment_data']['site_repo_name'] }}/index.html - require: - file: build_script - cmd: hugo_site_repo - file: nginx_document_root

   This state uses more than one module. The first module will download the deploy.sh file from the salt master and place it on the minion. This script will be responsible for compiling your Hugo site files. The second module then calls that script. The first module is listed as a requirement of the second module, along with the Git clone command, and the creation of the document root folder.

   Note

   The - creates option in the second module ensures that Salt doesn’t rebuild Hugo if the state is re-applied to the minion.

2. Create the deploy.sh script in files/:

   File: hugo-webserver-salt-formula/hugo/files/deploy.sh

   1 2 3 4

   #!/bin/bash cd {{ pillar['hugo_deployment_data']['site_repo_name'] }} hugo --destination={{ pillar['hugo_deployment_data']['nginx_document_root'] }}/{{ pillar['hugo_deployment_data']['site_repo_name'] }}

   Hugo’s build function is called with NGINX’s document root as the destination for the built files.

3. Update init.sls to include the new config.sls file:

   File: hugo-webserver-salt-formula/hugo/init.sls

   1 2 3 4

   include: - hugo.install - hugo.config - hugo.service

Push the Salt Formula Updates to GitHub

Your state files should now have these contents: init.sls, install.sls, config.sls, service.sls.

The files present in your Salt formula repository should be:

hugo
├── config.sls
├── files
│   ├── deploy.sh
│   └── hugo_site
├── init.sls
├── install.sls
└── service.sls

1. Stage all the changes you made to your local Salt formula files in the previous steps and then commit the changes:

   cd ~/hugo-webserver-salt-formula
   git add .
   git commit -m "Deploy the Hugo site"


2. Push the commit to your GitHub repository:

   git push origin master


Create the Salt Pillar File

1. Open /etc/salt/master on the Salt master in a text editor. Uncomment the pillar_roots section:

   File: /etc/salt/master

   1 2 3

   pillar_roots: base: - /srv/pillar

   pillar_roots performs an analogous function to file_roots: it specifies where Pillar data is stored on the master’s filesystem.

2. Restart Salt on the master to enable the changes in /etc/salt/master:

   sudo systemctl restart salt-master


3. Create the /srv/pillar directory on the Salt master:

   sudo mkdir /srv/pillar


4. Create an example-hugo-site.sls file in /srv/pillar to contain the Pillar data for the minion. This file uses the same YAML syntax as other state files. Replace the values for github_account and domain_name with your GitHub account and your site’s domain name:

   File: /srv/pillar/example-hugo-site.sls

   1 2 3 4 5 6 7 8 9

   hugo_deployment_data: hugo_version: 0.49 group: hugo user: hugo home_dir: /home/hugo github_account: your_github_user site_repo_name: example-hugo-site nginx_document_root: /var/www domain_name: yourdomain.com

5. Create a top.sls file in /srv/pillar. Similar to the Top file in your state tree, the Pillar’s Top file maps Pillar data to minions:

   File: /srv/pillar/top.sls

   1 2 3

   base: 'hugo-webserver': - example-hugo-site

Apply State Updates to the Minion

On the Salt master, apply the new states to all minions:

sudo salt '*' state.apply

sudo salt 'hugo*' state.apply

If no changes are made, try manually fetching the Salt formula updates from GitHub and then run the state.apply command again:

sudo salt-run fileserver.update

When the operation finishes, your Hugo site should now be visible at your domain.

Deploy Site Updates with Webhooks

Your site is now deployed to production, but there is no automatic mechanism in place yet for updating the production server when you update your Hugo site’s content. To update the production server, your minion will need to:

1. Pull the latest changes pushed to the master branch of your Hugo site repository on GitHub.

2. Run the Hugo build process with the new content.

The deploy.sh script can be altered to pull changes from GitHub. These script changes will be made in the Salt formula repository. Then, we’ll set up webhooks to notify the Salt minion that updates have been made to the Hugo site.

Webhooks are HTTP POST requests specifically designed and sent by systems to communicate some kind of significant event. A webhook server listens for these requests and then takes some action when it receives one. For example, a GitHub repository can be configured to send webhook notifications whenever a push is made to the repository. This is the kind of notification we’ll configure, and the Salt minion will run a webhook server to receive them. Other event notifications can also be set up on GitHub.

Set Up a Webhook Server on the Salt Minion

1. In your local Salt formula repository, append a new webhook_pkg state to your install.sls that installs the webhook server package by adnanh:

   File: hugo-webserver-salt-formula/hugo/install.sls

   1 2 3

   webhook_pkg: pkg.installed: - name: webhook

   Note

   The webhook server written in Go by adnanh is a popular implementation of the concept, but it’s possible to write other HTTP servers that parse webhook payloads.

2. Append two new components to your config.sls:

   File: hugo-webserver-salt-formula/hugo/config.sls

   1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

   webhook_systemd_unit: file.managed: - name: '/etc/systemd/system/webhook.service' - source: salt://hugo/files/webhook.service - user: root - group: root - mode: 0644 - template: jinja - require: - pkg: webhook_pkg module.run: - name: service.systemctl_reload - onchanges: - file: webhook_systemd_unit webhook_config: file.managed: - name: '/etc/webhook.conf' - source: salt://hugo/files/webhook.conf - user: root - group: {{ pillar['hugo_deployment_data']['group'] }} - mode: 0640 - template: jinja - require: - pkg: webhook_pkg - group: hugo_group

   The first state creates a systemd unit file for the webhook service. The second state creates a webhook configuration. The webhook server reads the configuration and generates a webhook URL from it.

3. Create a webhook.service file in your repository’s files/ directory:

   File: hugo-webserver-salt-formula/hugo/files/webhook.service

   1 2 3 4 5 6 7 8 9 10

   [Unit] Description=Small server for creating HTTP endpoints (hooks) Documentation=https://github.com/adnanh/webhook/ [Service] User={{ pillar['hugo_deployment_data']['user'] }} ExecStart=/usr/bin/webhook -nopanic -hooks /etc/webhook.conf [Install] WantedBy=multi-user.target

4. Create a webhook.conf file in your repository’s files/ directory:

   File: hugo-webserver-salt-formula/hugo/files/webhook.conf

   1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37

   [ { "id": "github_push", "execute-command": "{{ pillar['hugo_deployment_data']['home_dir'] }}/deploy.sh", "command-working-directory": "{{ pillar['hugo_deployment_data']['home_dir'] }}", "trigger-rule": { "and": [ { "match": { "type": "payload-hash-sha1", "secret": "{{ pillar['hugo_deployment_data']['webhook_secret'] }}", "parameter": { "source": "header", "name": "X-Hub-Signature" } } }, { "match": { "type": "value", "value": "refs/heads/master", "parameter": { "source": "payload", "name": "ref" } } } ] } } ]

   This configuration sets up a URL named http://example.com:9000/hooks/github_push, where the last component of the URL is derived from the value of the configuration’s id.

   Note

   The webhook server runs on port 9000 and places your webhooks inside a hooks/ directory by default.

   When a POST request is sent to the URL:

   • The webhook server checks if the header and payload data from the request satisfies the rules in the trigger-rule dictionary, which are:

     • That the SHA1 hash of the server’s webhook secret matches the secret in the request headers. This prevents people who don’t know your webhook secret from triggering the webhook’s action.
     • The ref parameter in the payload matches refs/heads/master. This ensures that only pushes to the master branch trigger the action.

   • If the rules are satisfied, then the command listed in execute-command is run, which is the deploy.sh script.

   Note

   Further documentation on the webhook configuration options can be reviewed on the project’s GitHub repository.

5. Append a new webhook_service state to your service.sls that enables and starts the webhook server:

   File: hugo-webserver-salt-formula/hugo/service.sls

   1 2 3 4 5 6 7

   webhook_service: service.running: - name: webhook - enable: True - watch: - file: webhook_config - module: webhook_systemd_unit

6. Update the deploy.sh script so that it pulls changes from master before building the site:

   File: hugo-webserver-salt-formula/hugo/files/deploy.sh

   1 2 3 4 5

   #!/bin/bash cd {{ pillar['hugo_deployment_data']['site_repo_name'] }} git pull origin master hugo --destination={{ pillar['hugo_deployment_data']['nginx_document_root'] }}//{{ pillar['hugo_deployment_data']['site_repo_name'] }}

7. Your state files should now have these contents: init.sls (unchanged), install.sls, config.sls, service.sls. Save the changes made to your Salt files, then commit and push them to GitHub:

   cd ~/hugo-webserver-salt-formula
   git add .
   git commit -m "Webhook server states"
   git push origin master


8. On the Salt master, add a webhook_secret to the example-hugo-site.sls Pillar. Your secret should be a complex, random alphanumeric string.

   File: /srv/pillar/example-hugo-site.sls

   1 2 3

   hugo_deployment_data: # [...] webhook_secret: your_webhook_secret

9. From the Salt master, apply the formula updates to the minion:

   sudo salt-run fileserver.update
   sudo salt 'hugo-webserver' state.apply


10. Your webhook server should now be running on the minion. If you run a curl against it, you should see:

    curl http://example.com:9000/hooks/github_push


    Hook rules were not satisfied.⏎

Configure a Webhook on GitHub

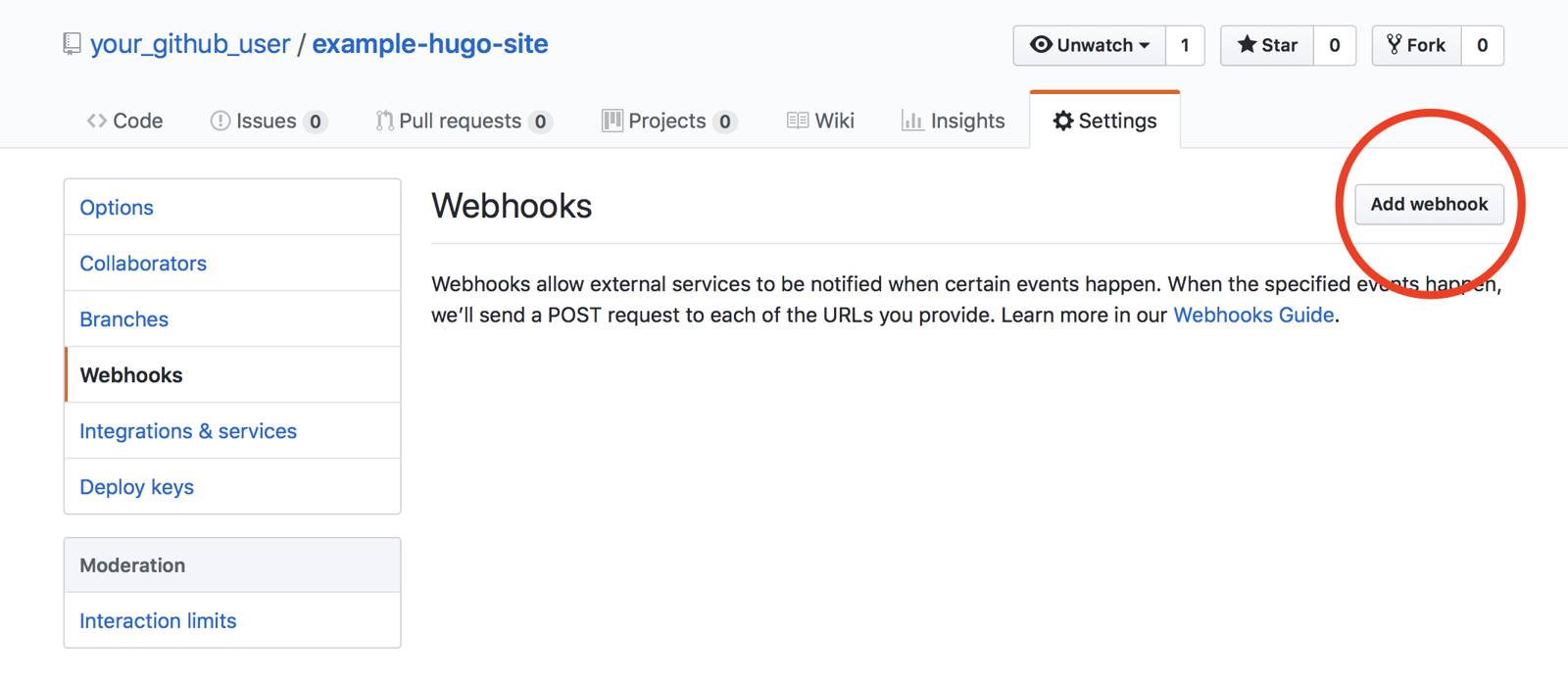

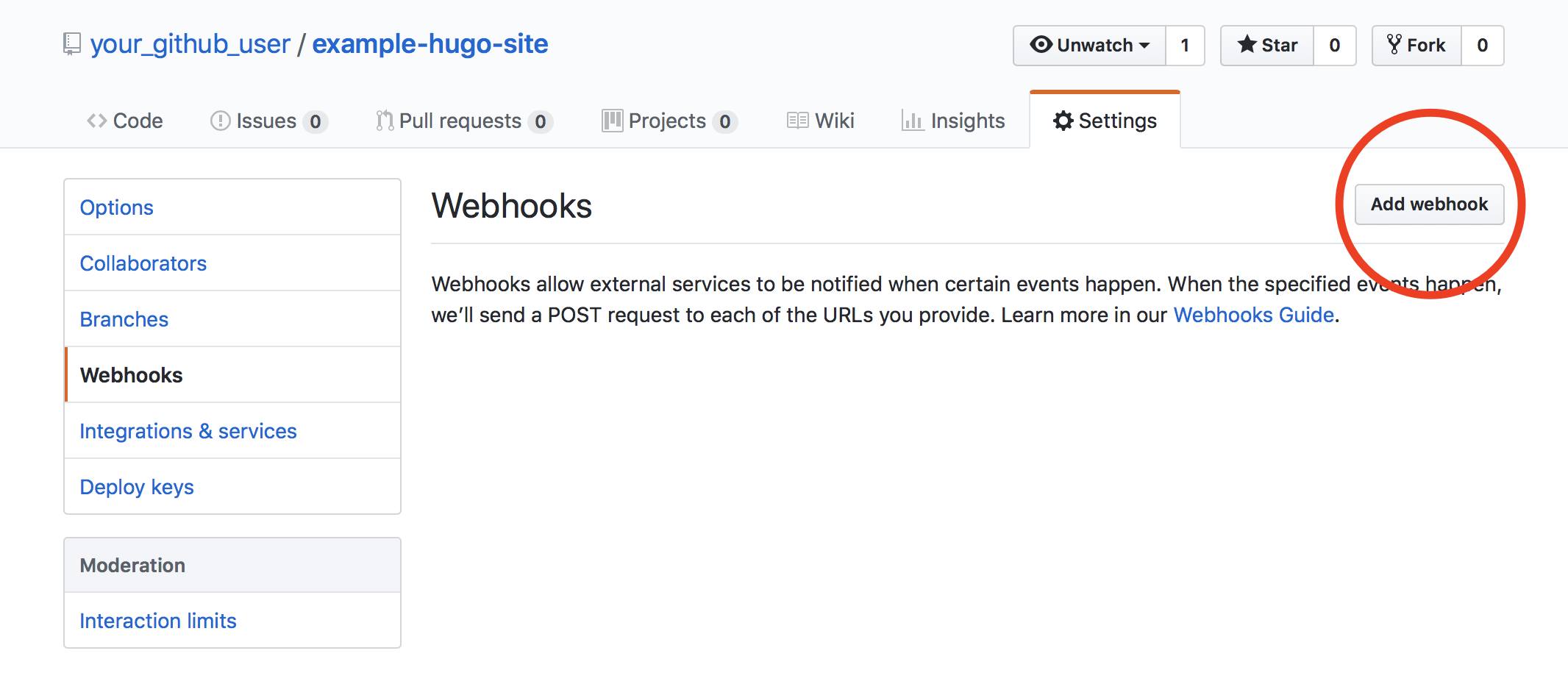

1. Visit your example Hugo site repository on GitHub and navigate to the Webhooks section of the Settings tab. Click on the Add webhook button:

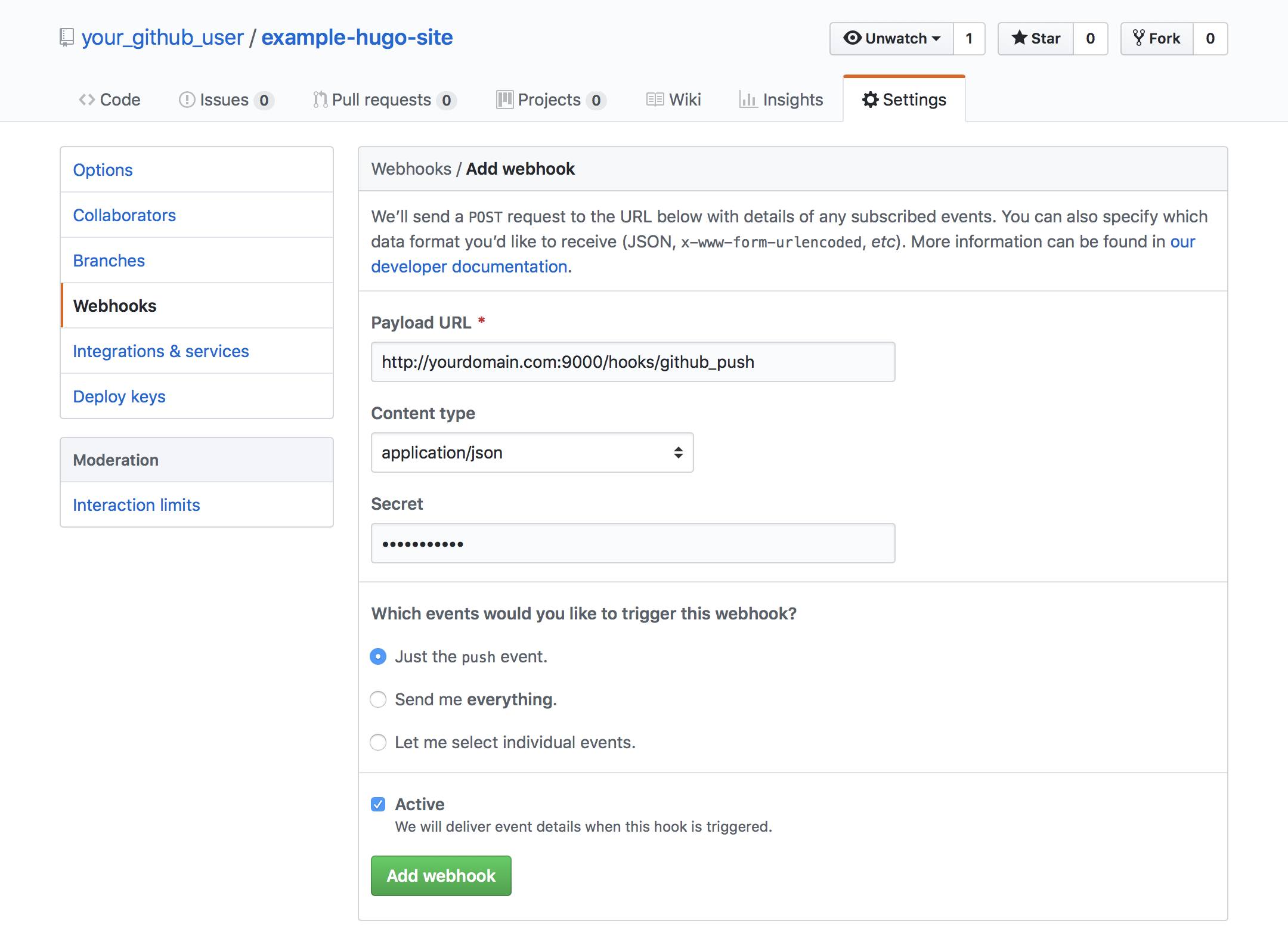

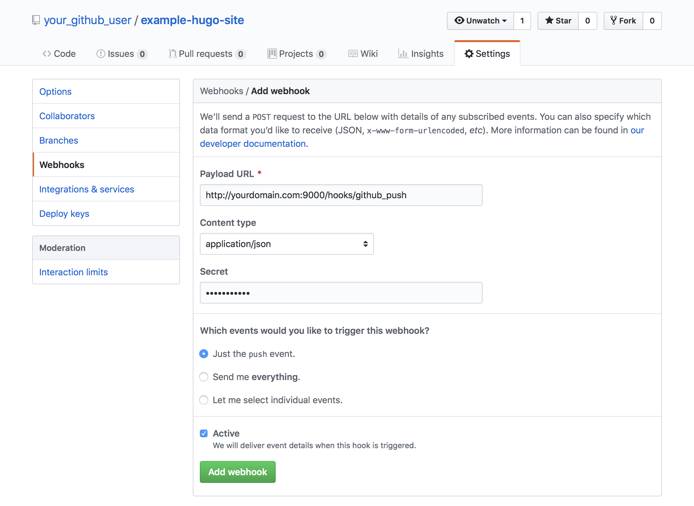

2. Fill in the form:

   • Enter http://example.com:9000/hooks/github_push for the payload URL (substitute example.com for your own domain).

   • Select application/json for the content type.

   • Paste in the webhook secret that you previously added to Salt Pillar.

   The webhook is configured to notify on push events by default. Keep this option selected.

3. Click the green Add webhook button to complete the setup.

Update the Hugo Site

1. In your local Hugo site repository, create a new post using Hugo’s archetypes feature:

   hugo new post/test-post.md


2. This command creates a new partially filled in Markdown document in content/post/. Open this file in your editor, remove the draft: true line from the frontmatter, and add some body text:

   File: example-hugo-site/content/post/test-post.md

   1 2 3 4 5 6

   --- title: "Test Post" date: 2018-10-19T11:39:15-04:00 --- Test post body text

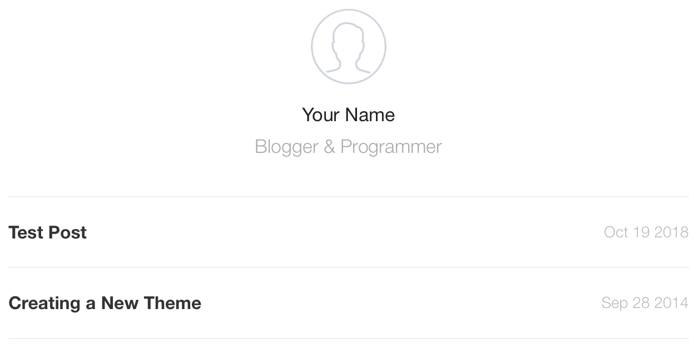

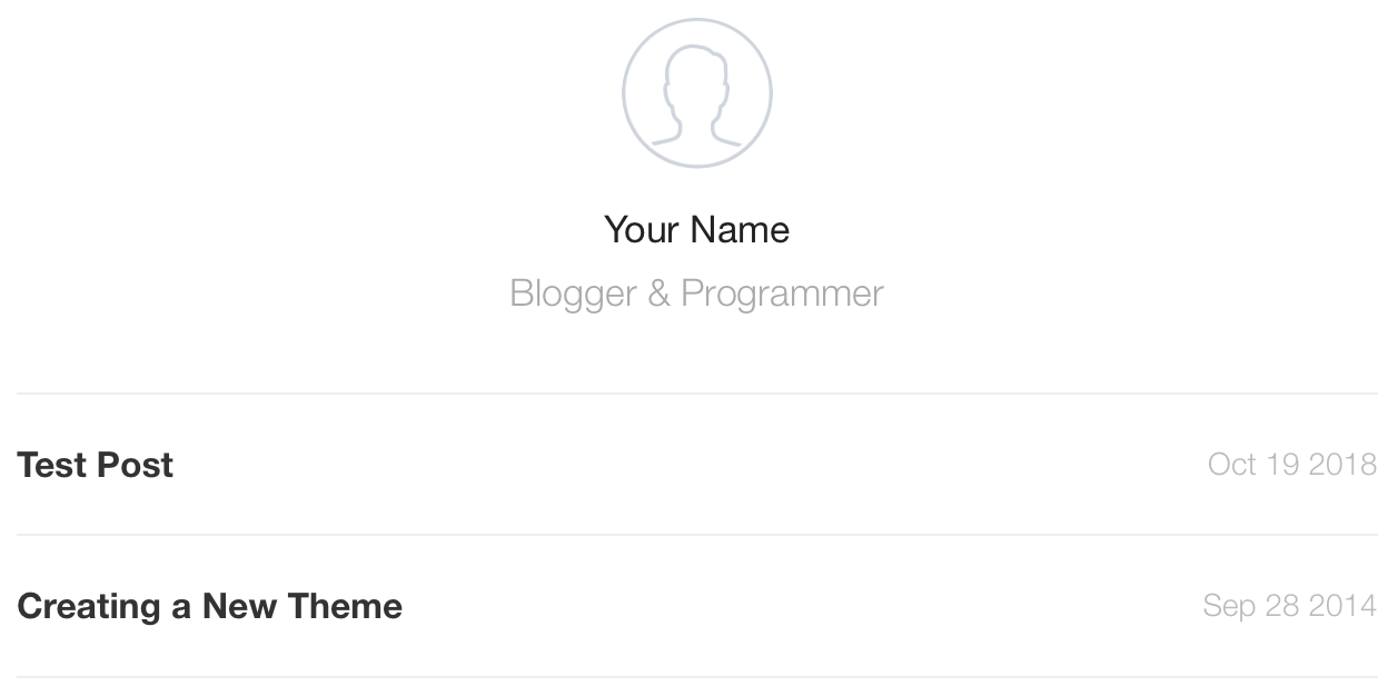

3. If you run hugo server in the repository directory, you can see the new post:

4. Commit and push the new post to GitHub:

   cd ~/example-hugo-site
   git add .
   git commit -m "Test post"
   git push origin master


5. Visit your domain in your browser; your test post should automatically appear.

   Note

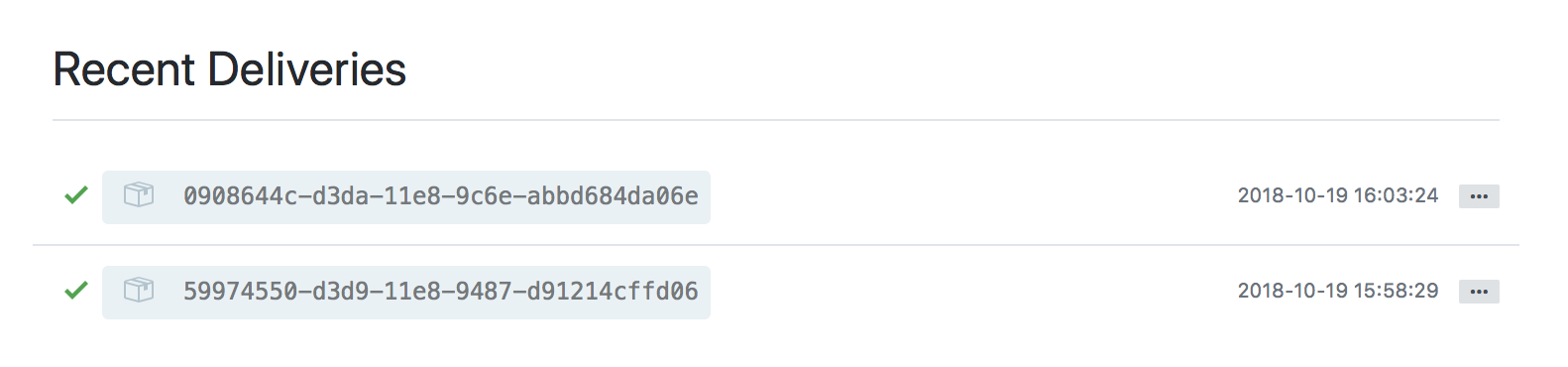

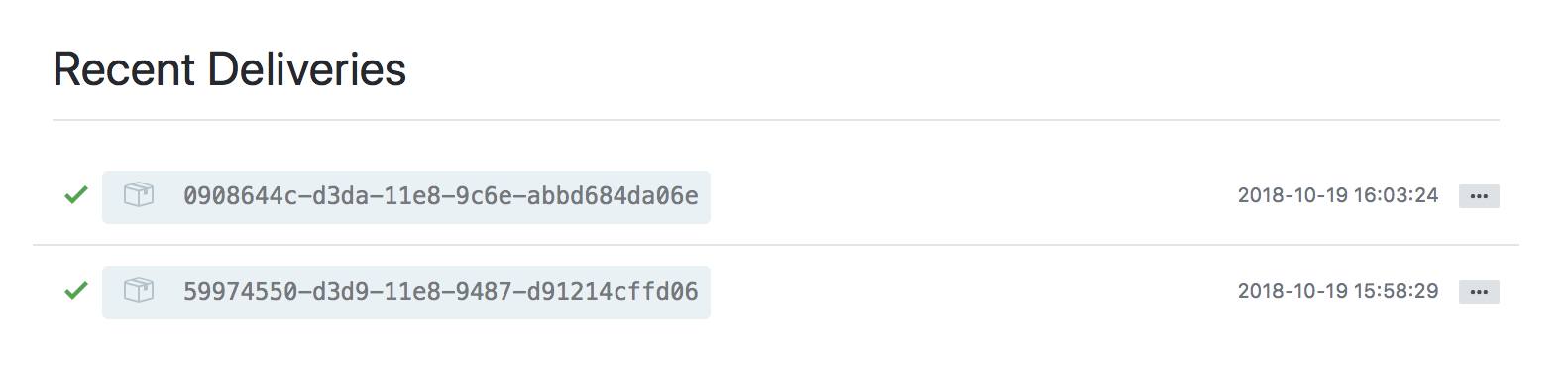

   If your post does not appear, review the Recent Deliveries section at the bottom of your webhook configuration page on GitHub:

   If you click on a delivery, full information about the request headers and payload and the server response are shown, and these may provide some troubleshooting information. Editing the webhook.service file so that it starts the service in verbose mode may help.

Next Steps

The current Salt configuration can be used as a foundation for more complex deployments:

• Host multiple Hugo sites by updating Pillar with further GitHub repositories.

• Host different kinds of static sites by changing the Salt formula to support them.

• Load balance your site by creating more minions and apply the same Pillar data and Salt states to them. Then, set up a NodeBalancer to direct traffic to the minions.

• Set up a separate development branch and development server with Salt’s environments feature.

More Information

You may wish to consult the following resources for additional information on this topic. While these are provided in the hope that they will be useful, please note that we cannot vouch for the accuracy or timeliness of externally hosted materials.

• Hugo Documentation
• SaltStack Git Fileserver Documentation
• SaltStack Salt Formulas Documentation
• GitHub Developer - Webhooks
