Install SquirrelMail on Ubuntu 16.04 or Debian 8

Select distribution:
Traducciones al Español
Estamos traduciendo nuestros guías y tutoriales al Español. Es posible que usted esté viendo una traducción generada automáticamente. Estamos trabajando con traductores profesionales para verificar las traducciones de nuestro sitio web. Este proyecto es un trabajo en curso.
Create a Linode account to try this guide with a $ credit.
This credit will be applied to any valid services used during your first  days.

SquirrelMail is a webmail package, written in PHP, which supports both SMTP and IMAP protocols, and features cross-platform compatibility. SquirrelMail requires a web server with PHP to run properly. For this guide we’ll be using Apache 2. If you don’t already have Apache and PHP installed, you can check our LAMP Server on Ubuntu 16.04 or LAMP Server on Debian 8 guide.

Email restrictions on the Linode Platform
In an effort to fight spam originating from our platform, outbound connections on ports 25, 465, and 587 are blocked by default on Compute Instances for some new accounts. These restrictions prevent applications from sending email. If you intend to send email from a Compute Instance, review the Send Email on the Linode Platform guide to learn more about our email policies and to request the removal of these restrictions.
Note
This guide is written for a non-root user. Commands that require elevated privileges are prefixed with sudo. If you’re not familiar with the sudo command, you can check our Users and Privileges guide.

Installation

Update the system and install SquirrelMail from the repositories.

  1. First, install the most recent system updates:

    sudo apt-get update
    sudo apt-get upgrade

  2. Install SquirrelMail:

    sudo apt-get install squirrelmail


Configure the Virtual Host

To access SquirrelMails’s web interface, create and configure a copy of its default virtual host configuration file in the Apache directory. Configure the settings in the copied file to match your Linode and domain settings.

  1. SquirrelMail provides a default configuration file for Apache in /etc/squirrelmail/apache.conf. Copy this configuration file into your sites-available folder with the command:

    sudo cp /etc/squirrelmail/apache.conf /etc/apache2/sites-available/squirrelmail.conf

  2. Edit the configuration file to uncomment the <VirtualHost 1.2.3.4:80> block by removing the pound symbol (#), as shown below. Edit the IP and ServerName to match your Linode and domain settings:

    File: /etc/apache2/sites-available/squirrelmail
     1
     2
     3
     4
     5
     6
     7
     8
     9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40

    Alias /squirrelmail /usr/share/squirrelmail

    <Directory /usr/share/squirrelmail>
      Options FollowSymLinks
      <IfModule mod_php5.c>
        php_flag register_globals off
      </IfModule>
      <IfModule mod_dir.c>
        DirectoryIndex index.php
      </IfModule>

      # access to configtest is limited by default to prevent information leak
      <Files configtest.php>
        order deny,allow
        deny from all
        allow from 127.0.0.1
      </Files>
    </Directory>

    # users will prefer a simple URL like http://webmail.example.com
    <VirtualHost *:80>
      DocumentRoot /usr/share/squirrelmail
      ServerName squirrelmail.example.com
    </VirtualHost>

    # redirect to https when available (thanks omen@descolada.dartmouth.edu)
    #
    #  Note: There are multiple ways to do this, and which one is suitable for
    #  your site's configuration depends. Consult the apache documentation if
    #  you're unsure, as this example might not work everywhere.
    #
    #<IfModule mod_rewrite.c>
    #  <IfModule mod_ssl.c>
    #    <Location /squirrelmail>
    #      RewriteEngine on
    #      RewriteCond %{HTTPS} !^on$ [NC]
    #      RewriteRule . https://%{HTTP_HOST}%{REQUEST_URI}  [L]
    #    </Location>
    #  </IfModule>
    #</IfModule>
    Note
    If Apache is serving other virtual hosts you may need to adjust them and/or this configuration file to prevent any conflicts. If you’re running Apache solely for SquirrelMail, you may still want to remove the default virtual host from sites-enabled.
  3. Enable the new virtual host:

    sudo a2ensite squirrelmail.conf

  4. Reload Apache:

    sudo systemctl reload apache2.service


You should now be able to see SquirrelMail’s default login page in your browser after navigating to your Linode’s IP address or domain:

SquirrelMail Login Page.

Configure SquirrelMail

Before using SquirrelMail for the first time, configure it to access your mail server. SquirrelMail provides a tool called squirrelmail-configure, an interactive interface which edits the /etc/squirrelmail/config.php file for you with the input you provide.

  1. Launch the squirrelmail-configure application:

    sudo squirrelmail-configure


    This will bring up the menu shown below:

    The squirrelmail-config main menu.

  2. There are many options to adjust here; too many for the scope of this guide. The only settings required to make SquirrelMail work are the Server Settings. Enter 2 to bring up the Server Settings submenu:

    squirrelmail-config server settings menu .

  3. If your mail server is on the same Linode as your SquirrelMail installation, you may not need to make any adjustments to the default settings. Otherwise, adjust the Domain, IMAP, and SMTP settings to match the mail server you want to connect to. You can find additional configuration tips for this section from SquirrelMail’s official documentation.

    Note
    If your email server uses STARTTLS encryption, as our Email with Postfix, Dovecot, and MySQL guide does, You will not be able to authenticate using this version of Squirrelmail. Version 1.5.1 and higher can use STARTTLS, but are in development and not available in the main repositories. You can download the latest build from Squirrelmail’s website.
  4. When done, press S to save your changes, then press Q to quit.

Sign In to the Web Interface

  1. At this point you should be able to log in to the SquirrelMail Login page using your email credentials. Navigate in your web browser to the Linode’s IP address, or domain name depending on how you’ve configured the virtual host:

    SquirrelMail Login Page with a username and password.

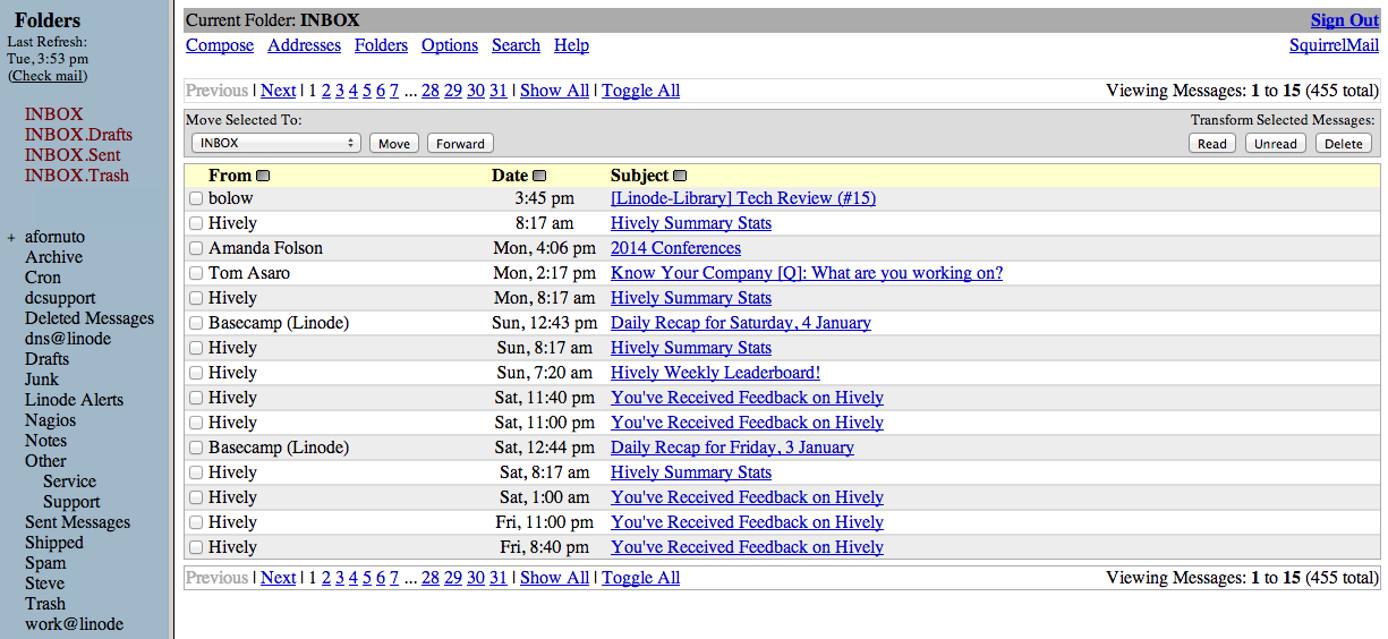

  2. The interface layout follows standard email convention; all common functions should be easily accessible:

  3. Once you’re finished, you can sign out using the link in the upper-right corner. Always remember to sign out if you’re using a public computer.
